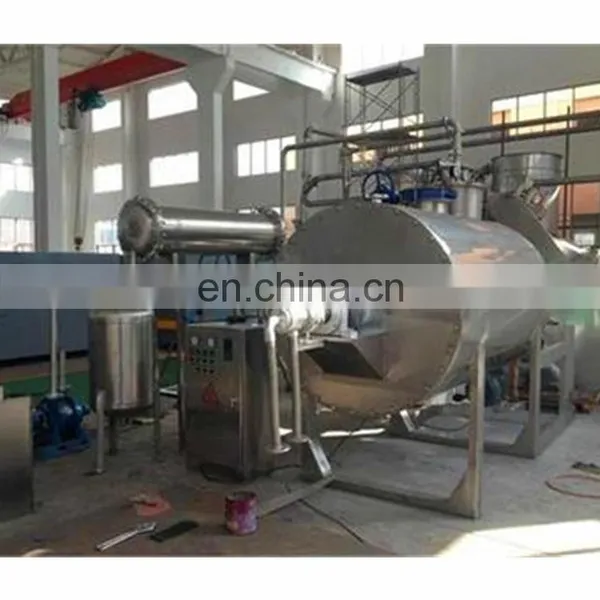

Hot Sale ZB/ZP High Efficient Vacuum Harrow Rake Dryer for Putty Powder Cellulose

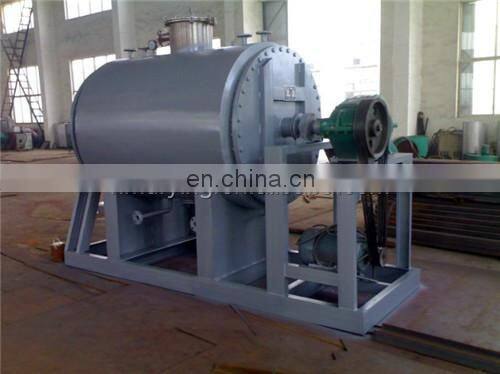

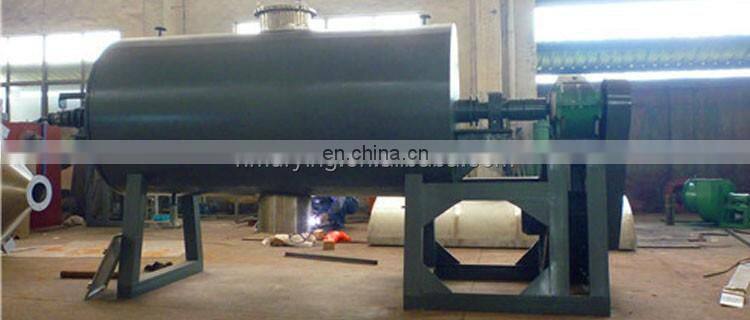

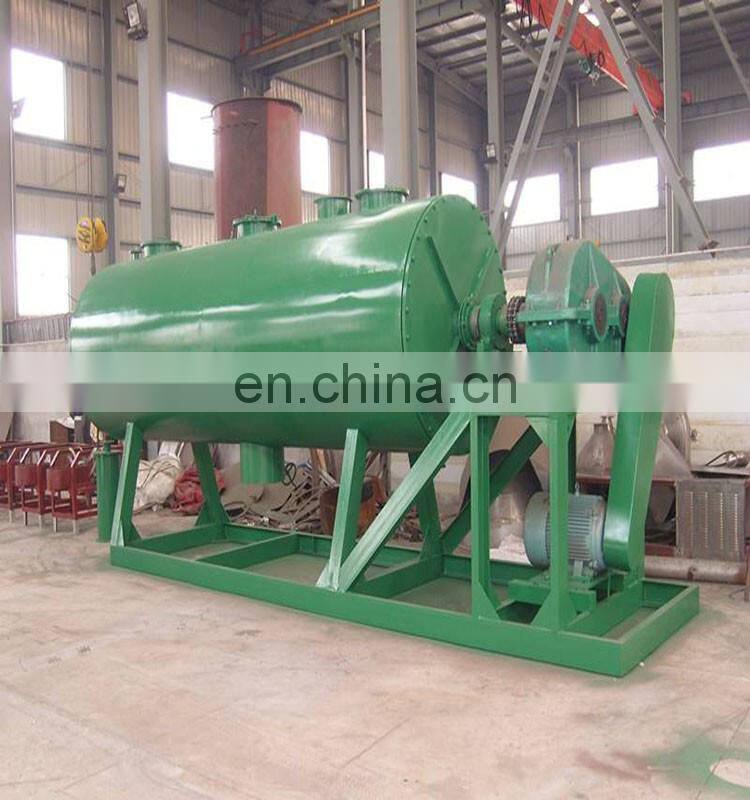

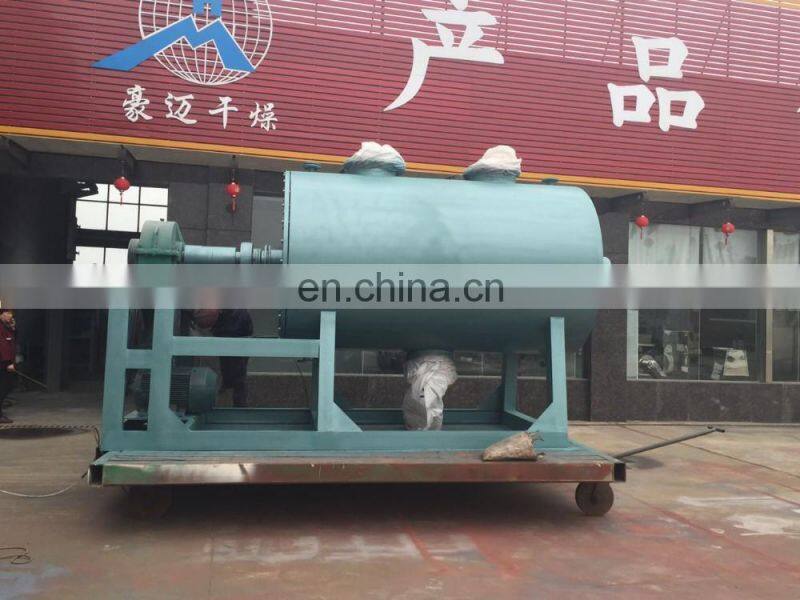

ZB vacuum harrow drying equipment is new type high-efficiency horizontal vacuum drying equipment. It adopts jacketed structure, and the jacket can be heated by steam, hot water or conduction oil. The jacket transfers the heat to the inner wall of the shell via conduction or radiation. The dried materials are added into the dryer through an opening in the middle of the machine shell. Constant stirring of the revolving harrow causes the materials move back and forth. The surface contacting with the inner wall of the shell constantly updates, resulting in high drying rate and uniform finished products.

(1) the material is even dry; avoid oxidation, overheating; can get very low moisture content of the product, Packaging can be done without crushing operation.
(2) the evaporation intensity is high, generally can evaporate 2-10kg (water) / m2 x h.
(3) no air intervention, condenser load is very small, can be easily recycled material solvent.
(4) the solvent vapor entrainment is filtered by the bag filter without environmental pollution.
(5) energy consumption: General evaporation 1kg water vapor 1.3-1.5kg.
(6) the discharge valve is pneumatic short diameter ball valve, discharge convenient, and no accumulation phenomenon.
(7) the hot medium can be used water vapor, heat transfer oil, hot water.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
