Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment > Low Price Automatic Production XF-0.4-12 Horizontal Boiling Dryer for Foodstuff

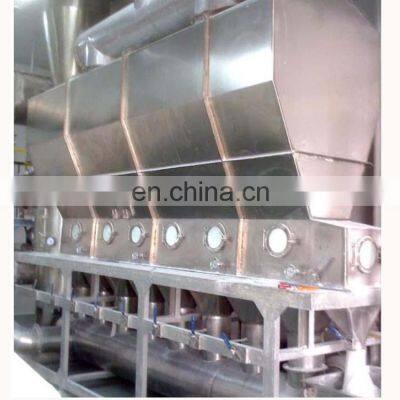

Low Price Automatic Production XF-0.4-12 Horizontal Boiling Dryer for Foodstuff
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2008
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale XF 0.4-12 Fluid Bed Dryer Boiling Dryer for FoodNegotiableMOQ: 1 -
Low Price XF 0.25-6 Fluid Bed Dryer Boiling DryerNegotiableMOQ: 1
-
Hot Sale XF 0.5-10 Fluid Bed Dryer Boiling DryerNegotiableMOQ: 1
-
Low Price XF 0.5-12 Fluid Bed Dryer Boiling Dryer for PowderNegotiableMOQ: 1
-
Low Price Sus304 XF 0.25-3 Fluid Bed Dryer Boiling DryerNegotiableMOQ: 1
Product Description
Low price automatic production XF-0.4-12 Horizontal Boiling Dryer for foodstuff
The Boiling dryer is also call as fluidize-bed. It consists of air filter, heater, fluidized-bed main machine, feeder, cycloneseparator, cloth bag duster, high-pressure centrifuge fan, and operation table. The dust collector shall be equipped according to the properties of raw materials. You can use cyclone separator or cloth bag duster according to the materials characteristics, the cyclone separator is mainly used for high specific gravity materials and the cloth bag duster is mainly used for powder and small granule materials. The air feeding device and belt conveyor is optional. The heat source can use steam, electricity, hot air furnace as per customer requirements.
APPLICATION
This dryer is widely used for medicines, chemical raw materials, foodstuff, grain processing, feed, and etc.
Example applicable materials such as raw medicine, tablet, Chinese medicine, health care products, drinks, feed, resin, citric acid and other powders. The suitable drying diameter of raw material is 0.1~6mm. The best drying diameter of raw material will be 0.5~3mm.
Example applicable materials such as raw medicine, tablet, Chinese medicine, health care products, drinks, feed, resin, citric acid and other powders. The suitable drying diameter of raw material is 0.1~6mm. The best drying diameter of raw material will be 0.5~3mm.
Specification
Notes:
I. Feeding Mode:
1). Star feeding;
2) Star feeding with pneumatic conveying;
3) Belt conveyor;
4) Customized
1). Star feeding;
2) Star feeding with pneumatic conveying;
3) Belt conveyor;
4) Customized
II. Automated production can be realized.
III. Customized design as per user requirements.
IV. The fan power is depends on the material types.
III. Customized design as per user requirements.
IV. The fan power is depends on the material types.
Working principle
The granular solid material is fed to fluidized bed dryer by the feeder. The blower will blows the filtered clean hot air heated
into the fluidized bed at the bottom of the distribution plate and fluidization to gas-solid heat and mass exchange to heat the solid material. The dried material is discharged from the discharge outlet. The exhaust gas is discharged from the top of the fluidized bed and the solid power will be collected by the cyclone separator or cloth bag duster.
into the fluidized bed at the bottom of the distribution plate and fluidization to gas-solid heat and mass exchange to heat the solid material. The dried material is discharged from the discharge outlet. The exhaust gas is discharged from the top of the fluidized bed and the solid power will be collected by the cyclone separator or cloth bag duster.
Installation Instructions
1. All equipment should be placed flat, fixed with foot screws, the components of a good seal.
2. Fan can be placed in the outdoor or indoor self-silencer. Layout can be adjusted as appropriate depending on the
circumstances.
2. Fan can be placed in the outdoor or indoor self-silencer. Layout can be adjusted as appropriate depending on the
circumstances.
Company Profile
Changzhou Haomai Drying Engineering Co., Ltd. Specializes in Spin flash dryers, centrifugal spray drying equipment, vibrating fluid bed dryers and other equipment R & D, manufacturing, business and related export services. The factory is located in Sanhekou industrial park, Zhenglu town, Changzhou City, Jiangsu Province. Over the years the design of equipment involved in pharmaceuticals, chemicals, pesticides, electronics, mining, food, dyes, pigments and other areas, and sell our products throughout the whole country.
Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products.
Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.
FAQ
Q: Where is your factory?
A: We are located in Changzhou City which about 150km away from Shanghai.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: What is the payment term?
A: Our regular payment term is: 30% TT in advance, 70% TT before shipment.
Q: Does your price include freight?
A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
A: We are located in Changzhou City which about 150km away from Shanghai.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: What is the payment term?
A: Our regular payment term is: 30% TT in advance, 70% TT before shipment.
Q: Does your price include freight?
A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
