Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment > Drying Machine for Milk Powder and Fruit Powder
Drying Machine for Milk Powder and Fruit Powder
US$ 13000.00
1 - 4 Set
US$ 11800.00
≥5 Set
Key Specifications
Get Latest Price
Application:
Food Industry
type:
Fluid Bed Drying Equipment
application:
Food Processing
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SUS304 Food Grade Drying Machine for Powder Processing LineUS$ 15300.00 - 16200.00MOQ: 1 Set -
Apple Powder Fruit and Vegetable Powder Production LineUS$ 16200.00 - 18500.00MOQ: 1 Set
-
Ultrafine Universal Powder Pulverizer Machine Fruit & Vegetable Production Line With Core Bearing Component for PromotionsUS$ 2300.00 - 2600.00MOQ: 1 Set
-
Commercial Usage Fruit and Vegetable Powder Making MachineUS$ 23800.00 - 25200.00MOQ: 1 Set
-
Industrial Fruit and Vegetable Powder Processing LineUS$ 24800.00 - 26300.00MOQ: 1 Set
type
Fluid Bed Drying Equipment
application
Food Processing
place of origin
Shanghai, China
brand name
GENYOND
voltage
220V/380V
power(w)
25KW
dimension(l*w*h)
8000*5000*3500MM
key selling points
High Safety Level
warranty
1 Year
weight (kg)
700
machinery test report
Provided
video outgoing-inspection
Provided
core components
Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine, Pressure Vessel, Other
heating method
Steam Heating
material
SUS304, SUS304L, SUS316, SUS316L
Product name
Vibration Fluidized Bed
After-sales Service Provided
Video Calling Technology Services
Heating source
Steam+electricity
Raw material
304 Sainless Steel
MOQ
1 Set
Certification
CE Certificate
Package
Standard Package
Way to Control
Touch Screen
Brand
GENYOND
Product Introduce
Drying Machine for Milk Powder and Fruit Powder
Milk powder refers to a powdered product prepared by using fresh milk as a raw material, adding a certain amount of vegetable protein and fat, vitamins, minerals and other raw materials, through the process of sterilization, concentration, and drying to make the milk powder. On the basis of keeping the original quality and nutritional value of the milk, the milk powder has the characteristics of low water content, small size, lightweight, long storage period, convenient eating and easy carrying.

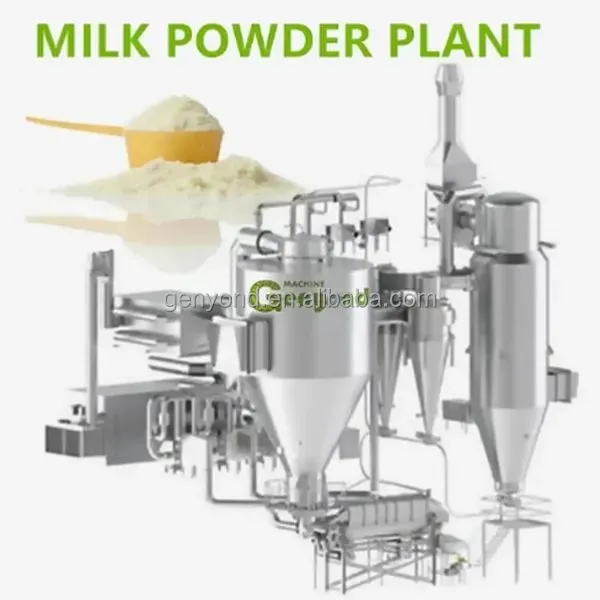

Milk powder processing line includes raw milk acceptance system, raw milk standardization tank, raw milk preheating machine, homogenization, sterilization, milk skimming (to produce skimmed milk powder), raw milk vacuum concentration, sugar preparation (to produce sugared full fat milk powder), spray drying, and milk powder sieving, cooling, filling, inspection, packaging, CIP cleaning station, boiler, cooling tower, air compressor, chiller, connection pipes, valves, bents, pumps, etc.
Product Specification
Model |
LH3-400 |
LH3-500 |
LH3-700 |
LH3-900 |
|||
Powder disposal quantity(kg/h) |
150~250 |
300~450 |
500~800 |
520~1000 |
|||
Staying period(min) |
2~3 |
2~3 |
|||||
Nominal vibration force(RPM) |
980 |
||||||
Max.vibration force(N) |
5000*2 |
10000*2 |
10000*2 |
10000*2 |
|||
Vaccum degree inside the bed(Pa) |
-150~-300 |
||||||
Steam consumption(kg/h) |
150 |
200 |
310 |
500 |
|||
Capacity(KW) |
7.6 |
7.6 |
10.7 |
18.4 |
|||
Space(m) |
8*5*3.5 |
9*5.5*3.5 |
9.6*5.5*3.5 |
9.6*6*3.5 |
|||
Cooling water consumption(2 inlet 8℃ outlet)(kca/h) |
700 |
800 |
1000 |
1400 |
|||
OVERVIEW
Shanghai Genyond Machinery
Genyond machinery industrial group has been in the design and production of equipments on dairy production for more than 20 years.
We have 6 factories in Mainland China now.
We offer turnkey project on the production and packing of pasteurized milk, UHT milk, yogurt, cheese, cream, butter, ghee, ice cream jelly pudding,etc.
We have 6 factories in Mainland China now.
We offer turnkey project on the production and packing of pasteurized milk, UHT milk, yogurt, cheese, cream, butter, ghee, ice cream jelly pudding,etc.
