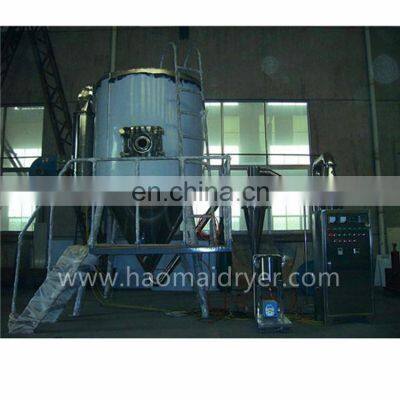

Best sale lpg-5 model small scale mini spray dryer lab use

Name: Best sale lpg-5 model small scale mini spray dryer lab use
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

DESCRIPTION

The spray drying technology is the widest used in the liquid shaping technology and in the drying industry. It is most suitable for producing powder, particle, or block solid products from materials of solution, emulsion, soliquoid and pumpable paste states.Therefore, the spray drying is one of the most desired technologies when the particle size and distribution of the final products, their residual water contents, and the stocking density and the particle shape can meet the precision standards.

WORKING PRINCIPLE
The air enters into the air distributor which on the top of the drier after filtering and heating. The hot air in spiral form
equably enters into the drying room. When liquid raw material is passing through the high-speed centrifugal sprayer on the top of the tower, it will be rotated and sprayed into the extremely fine mist liquid beads. Raw material can be dried to the final products instantly while it contact with the heated air. The finished products are discharged continuously from bottom of the drying tower and cyclones segregator. The waste gas is discharged from blower.

FEATURES
1. The drying speed is rapid. When liquid raw material is atomized, the surface of the material will be enlarged greatly. 95% -98% of water can be evaporated instantly in the hot airflow and the drying is only a few seconds. This dryer is especially suitable to dry the heat sensitive material.
2. The uniformity, flow capability & solubility of the dryer are very good. The finished products have high quality and
high-purity.
3. Simple and stable operation, convenient control and debugging, easy to achieve automatic operation.
4. The production process is simple, The dryer can dry the liquid material which contains 40%-60%(90% for special materials) of moisture into powder at once. There’s no need for smashing or sieving after drying so the operational environment is clean and in healthful condition, it also can avoid powder flying in the air during drying process.

Specification

Model Dimension	LPG-5	LPG-25	LPG-50	LPG-150	LPG-200-2000
Inlet Temperature	140-350 automatic control
Outlet Temperature	80-90
Max. Evaporation Capacity （kg/h）	5	25	50	150	200-2000
Atomizing Method	compressed air transmission	mechanical transmission
Revolution（r.p.m）	25000	18000	18000	15000	8000-15000
Diameter of Atomizing Disc（mm）	50	120	120	150	180-240
Heat Source	electricity	steam+electricity	steam+electricity, oil, oil fuel, hot air furnace
Max. Heating Power（kw）	9	36	72	99
Overall Dimensions （L W H）（m）	1.8×0.93×2.2	3×2.7×4.26	3.5×3.5×4.8	5.5×4×7	depends on actual situation
Dried Powder Restoring Rate(%)	≥95

APPLICATION

Chemical Industry:
Sodium Fluoride (potassium), Basic Dyes & Pigments, Dyes Intermediates, Fertilizer, Formic Silicic Acid, Catalyst, Sulfuric Acid
Agent, Amino Acid, White Carbon Black, and etc.
Plastic Resin:
AB, ABS Emulsion, Urea-formaldehyde Resins, Phenolic Resins, Urea Formaldehyde Resins, Polyethylene, Polyvinyl Chloride, and etc.
Food Industry:
Lipid-rich Milk, Armpit Protein, Cocoa Milk Powder, Substitute Milk, Hunting Blood Meal, Egg White (Yellow), Chicken Juice,
Coffee, Instant Tea, Seasoning Meat, Protein, Soybean, Peanut Protein, Hydrolyzate, and etc.
Sugar:
Corn Syrup, Corn Starch, Glucose, Pectin, Maltose, Potassium Sorbate, and etc.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Changzhou Haomai Drying Engineering Co., Ltd. is a professional manufacturer who specialized in R&D, manufacturing, and installation of dryers, mixers, granulators, grinders, conveyors, sieve and etc. Our products are widely applied to various fields such as pharmaceutical, chemical, agricultural, environmental protection, electronic, mining, food, dye & pigment and other industries.

We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure and we provide high quality products with prompt after sales services and technical supports. We have successfully installed many projects at home and abroad and our products and services have been recognized by customers.

We have also awarded honors such as “Credit (contract) AAA Grade Enterprise”, “AAA Credit Rating Enterprise”, “Science and Technology Rewards of Chinese Township Enterprise”, “Key Enterprises of Drying Equipment Industry” and so on.
We are located in Changzhou City which about 150km away from Shanghai. We warmly welcome our clients to visit our factory and looking forward to have a win-win cooperation with you in the near future!

FQA Q: Where is your factory? A: We are located in Changzhou City which about 150km away from Shanghai. Q: What’s the quality control procedure? A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality. Q: What is the warranty period? A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods. Q: What is the payment term? A: Our regular payment term is: 30% TT in advance, 70% TT before shipment. Q: Does your price include freight? A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
