Low Price YPG SUS304 Pressure Spray Dryer for Ceramic Color/Porcelain

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

DESCRIPTION
The YPG Series Pressure Type Spray (Congeal) Dryer has a device that can function drying and granulating together. The spraying pressure, spraying flow, and the size of spray nozzle of the liquid material pump can be adjusted according to the requirements and the specific size of granule balls can be achieved.

WORKING PRINCIPLE
The liquid or paste raw material is sprayed into small liquid drop by pressed sprayer draw assistance from pressure of diaphram pump, and quickly drying through amply heat exchange (10-90sec.). Most of the powder granules are collected from outlet of discharge at the bottom of the dryer. The wasted air and fine powder are separated by the cyclone, the wasted air is exhaust from draft fan, and fine powder is collected at the bottom of cyclone. There is a second grade duster equipped at the outlet; therefore, the recovery rate of the finished powder granule can be 96% to 98%.

FEATURES
1. Rapid drying speed. The surface area of the material will be enlarged greatly when liquid raw material is atomized and 95% -98% of water can be evaporated instantly in the hot airflow. The drying time only need to take several seconds. This dryer is especially suitable for heating sensitive material.
2. The finished product is ball granule with uniform size. Its fluidity and solubility are good. The quality and purity of the
product is very high.
3. Depend on the characteristics of raw material, the dryer can use hot air to dry or use cool air to granulate.
4. Simple and stable operation. The control system is convenient which is easy to realize automatic operation.

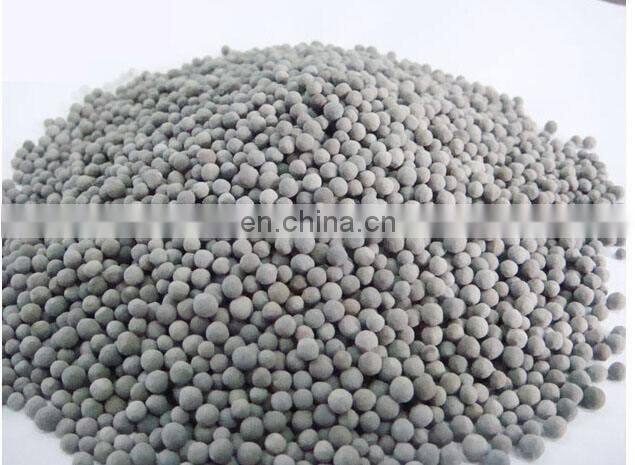

Finished Product

Model Item	Unit	50	100	150	200	300	500	1000
Max. Evaporation Capacity （kg/h）	kg	50	100	150	200	300	500	1000
Overall Dimension (Φ×H)	mm	1600× 8900	2000× 11500	2400× 13500	2800× 14800	3200× 15400	3800× 1880	4600× 22500
The Pressure of High-pressure Pump	Mpa	2～10
Power	KW	8.5	14	22	24	30	82	30
Inlet Air Temperature	oC	140～350
Moisture Content of Finished Product	%	＜5( can be reached to 0.5)
Material Recovery Rate	%	＞97
Electric Heater	KW	75	120	150	temperature is lower than 200,the parameters should be calculated
Eelectricity + Steam	Mpa+KW	0.5+54	0.6+90	0.6+108	according to the practical condition
Hot Air Furnace	Kcal/h	100000	150000	200000	300000	400000	500000	1200000

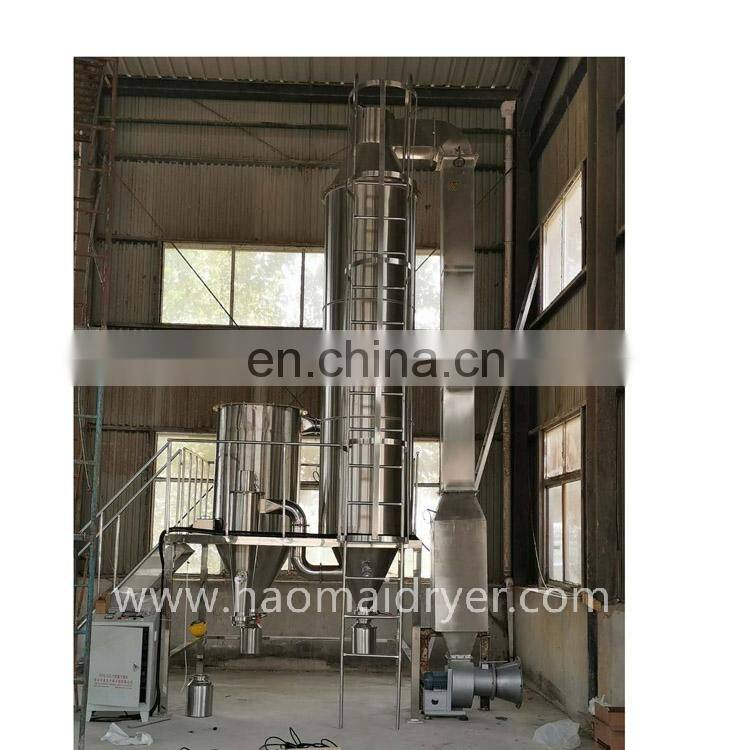

Detailed Images

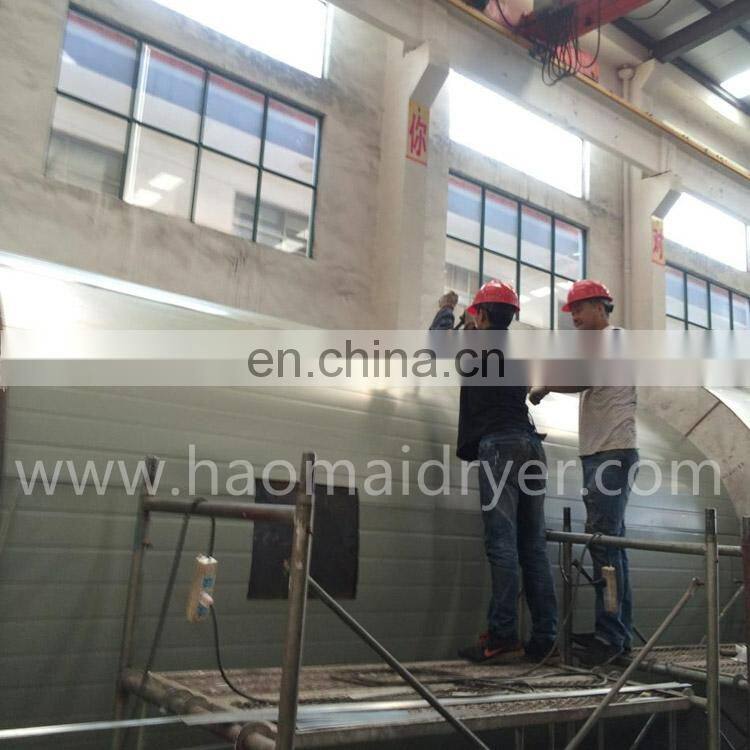

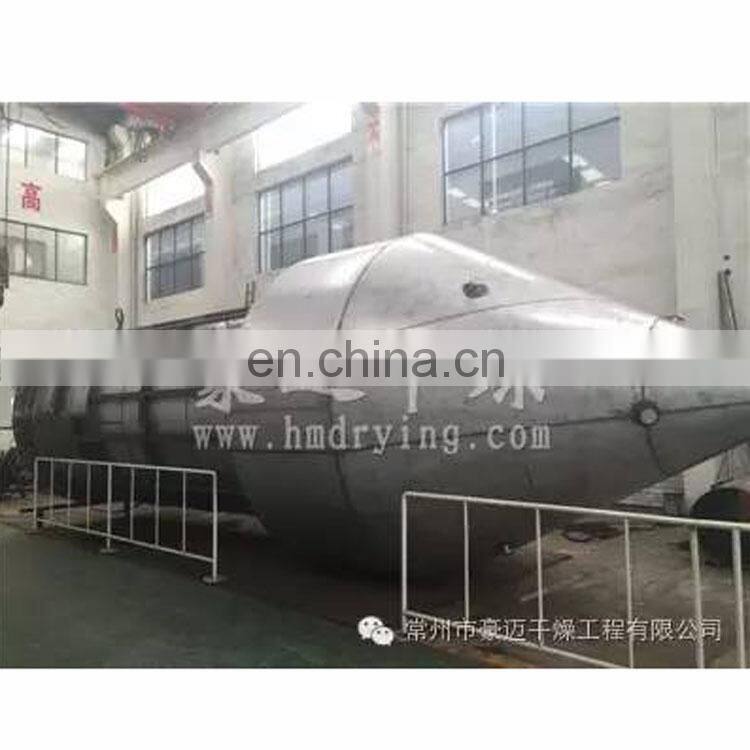

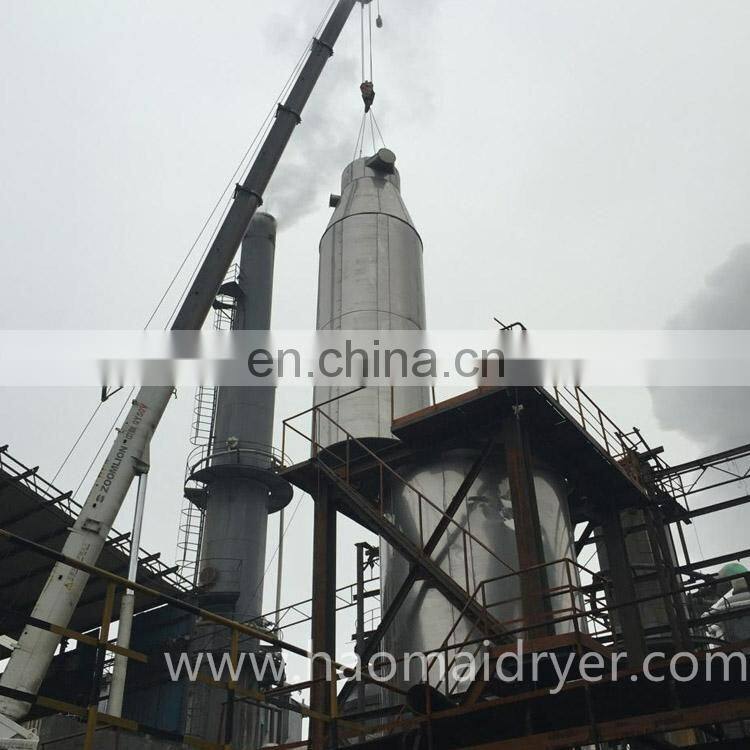

Production Picture

About HAOMAI

Team&Certifications

Packing & Delivery

FQA Q: Where is your factory? A: We are located in Changzhou City which about 150km away from Shanghai. Q: What’s the quality control procedure? A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality. Q: What is the warranty period? A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods. Q: What is the payment term? A: Our regular payment term is: 30% TT in advance, 70% TT before shipment. Q: Does your price include freight? A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
