Hot Sale Advanced Design Hydroxide Spin Flash Dryer From China

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

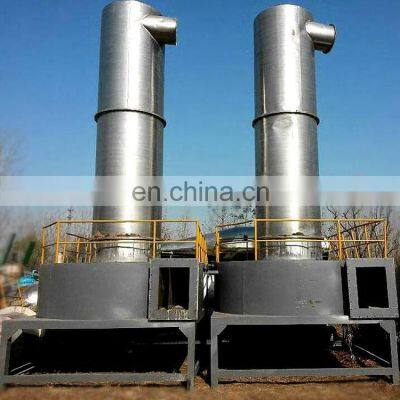

Hot Sale advanced design hydroxide spin flash dryer from china
DESCRIPTION
XSG/XZG Series Spin Flash Dryer is continuous drying equipment specially designed for shaped cake, cream paste, and paste slurry materials. The clean heat medium goes into the drying room from the tangent direction and creates a strong rotary vortex air current when it’s in motion with the stirrer. The wet material is added to the drying room in a fixed quantity, and it will be crushed and dry under high speed stirring action. The top of the drying room has particle size classification, the big particles will be stopped by the classifier and the fine powder will be discharged from the center of the ring and collected by the cyclone separator. The big particles will return to the drying room and continue to be crushed and dry.

FEATURES
(1) The raw material is processed by cutting, shearing, blowing, floating, and rotating, then become granulated shape and
separated greatly; the relative velocity between solid phase and gas phase is great, this strengthens the process of heating
exchange.
(2) Design with compact structure and required small occupied area, and the machine is easy to control and maintain.
(3) The hot air enters into the bottom of machine and creates strong rotating airflow; it can wash out material that sticking on the inside surface.
(4) The high temperature area is at the bottom of the machine, the heat sensitive raw material will not directly contact with
heating surface. As a result, carbonization and color change problems can be solved.
(5) The dryer is running under negative or micro negative pressure, there is no need other crushing machine to crush raw material,and the circumstance pollution will not occur.
(6) A segmenting ring and a rotational flow piece are equipped in the upper drying room in order to control granulated size and final moisture to satisfy required moisture containing rate and granulation.

WORKING PRINCIPLE
The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind
field is formed. The paste state materials enter into the drier through the screw feeder. Under the powerful function of the
stirring vanes at high-speed rotation, the materials are distributed under the function of strike, friction and shearing force.
The cake state materials will be smashed and contact the hot air fully and the materials are heated and dried. The dehydrated materials will go up with the hot-air flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the center of the machine and the material will be collected by cyclone separator of dust collector. The wet or big particles will be swing towards to the wall by the centrifugal force function and the materials will be crushed again after fall down to the bottom.

Technical Parameters

XSG series Model High speed Rotary Flash Dryer For Soybean Protein has a wide application scope, it can be used for drying in fire retardant, molecular sieve, rubber and plastic assistance, pesticide, pigment, dyestuff, fine chemicals, feedstuff, pharmaceutical and part intermediate industries.

Model Item	XSG-2	XSG-4	XSG-6	XSG-8	XSG-10	XSG-12	XSG-16	XSG-20
Tower Diameter (mm)	200	400	600	800	1000	1200	1600	2000
Air Volume (M3/h)	350-500	1150-2000	2450-4500	4450-7550	7000-12500	10000-20000	18000-36000	28200-56500
Water Evaporation (kg/h)	12-17	40-70	80-150	150-250	230-425	300-600	600-1000	1000-1500
Total Power (kw)	10	20	40	65	85	105	150	230
Max. Equipment Height (m)	4.0	4.8	5.8	6.5	7.1	7.8	8.8	10.1
Occupied Area (m2)	15	20	28	35	40	52	80	150

Installation Picture

About HAOMAI

Changzhou Haomai Drying Engineering Co., Ltd. Specializes in Spin flash dryers, centrifugal spray drying equipment, vibrating fluid bed dryers and other equipment R & D, manufacturing, business and related export services. The factory is located in Sanhekou industrial park, Zhenglu town, Changzhou City, Jiangsu Province. Over the years the design of equipment involved in pharmaceuticals, chemicals, pesticides, electronics, mining, food, dyes, pigments and other areas, and sell our products throughout the whole country. Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products. Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.

Team&Certifications

Packing & Delivery

FAQ

Q: Where is your factory? A: We are located in Changzhou City which about 150km away from Shanghai. Q: What’s the quality control procedure? A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality. Q: What is the warranty period? A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods. Q: What is the payment term? A: Our regular payment term is: 30% TT in advance, 70% TT before shipment. Q: Does your price include freight? A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
