Hot Sale High-Effieiency Double Drum Vacuum Paddle For Putty Powder Cellulose

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Application

The material overview:
Electroplating sludge is the electroplating industry wastewater treatment of the "final thing", which contains a lot of copper, nickel, chromium, iron, zinc and other precious metals.
Electroplating sludge mainly from the industrial electroplating process of various electroplating waste and electrolytic bath liquid through the liquid chemical treatment of solid waste, due to the electroplating manufacturers of different production processes and treatment processes, electroplating sludge chemical composition of considerable Complex, mainly containing chromium, iron, nickel, copper, zinc and other heavy metal compounds and soluble salts.

SPECIFICATIONS FOR KJG SERIES HOLLOW PADDLE DRYER
Model	Drying Area	Drying Capacity (water.kg/h)	Motor Power (KW)	Effective Volume(m3)	Equipment *Dimension (LWH)(mm)*	Shaft Rotary Speed (r.p.m)
KJG-5	5	50-140	3	0.08	3700600980	10-30
KJG-10	10	100-280	4	0.40	38008001200
KJG-18	18	180-504	7.5	1.09	400012001600
KJG-29	29	290-812	11	1.85	560015001800
KJG-36	36	360-1008	30	2.42	600015001800
KJG-41	41	410-1148	37	2.8	600016001800
KJG-50	50	500-1400	45	3.57	620017002300
KJG-87	87	870-2436	55	7.39	670024002600
KJG-128	128	1280-3584	90	12.0	750033002700
KJG-256	256	2560-7168	180	28.4	910037003300

Main Features

1. Blanking dryer low energy consumption: due to indirect heating, there is no large amount of heat taken away with the air, the dryer wall is installed the insulation layer, save more energy than the usual convection drying method.

2. Hollow paddle dryer system cost is low: the unit effective volume has a huge heat transfer surface, to shorten the processing time, equipment size becomes smaller, it greatly reduces the building area and building space.
3. Wide variety of process problems can be solved by using any kinds of heating source. It is specially suitable for drying heat sensitive materials and ligh temporature materials.The normal heat transfer medium can be steam, heat transfer oil, hot water, as well as cooling water etc... The dryer can be used for continuous or batch processing. It has been widely used in many industry areas already.
4. Small environmental pollution: do not use air with dust material. Material solvent evaporation is very small, easy to handle. For the pollution of the material or the need to recover the solvent conditions, can be used closed circuit.
5. Low operating costs: normal operation of the device, only 1 hour/day. Low-speed mixing and reasonable structure. Wear rate is very low, and maintenance costs are also very low.
6. Stable operating continuously: Because of the special compression and inflation of agitation function of paddle dryer, the material grains touch the heat-transfer area thoroughly. Within the axis direction, the temperature, moisture, mixture and grades of the materials is very small so as to guarantee the stability of whole process.

Certifications

Detailed Images

Machine Parts

Name: Paddle dryer

Brand: Haomai

Original: Jiangsu, China

Densely lined with wedge-shaped hollow shaft hollow blades, heat medium transfer the hollow axial flow through blade.

Main Features

Name: Heat System
Brand: Haomai
Original: Jiangsu, China
Heat system could be steam, Conduct oil, it is very save energy. The picture is conduct oil heat system.

Machine Parts

Name: Bliwing Cylinder
Brand: Haomai
Original: Jiangmin, China
This paddle dryer is an Environmental protection equipment, it could process Sludge, paste state waste.

Main Features

Name: Cloth bag dust collector
Brand: Haomai
Original: Jiangsu, China
The bag dust removal system can treat the exhaust gas to the discharge standard.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

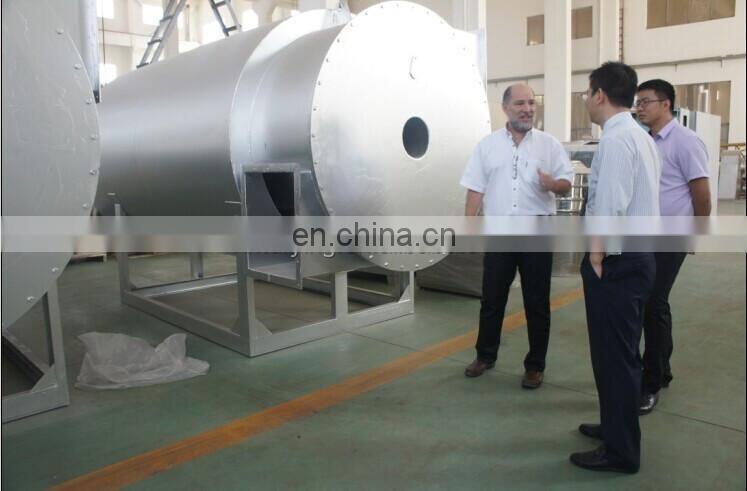

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

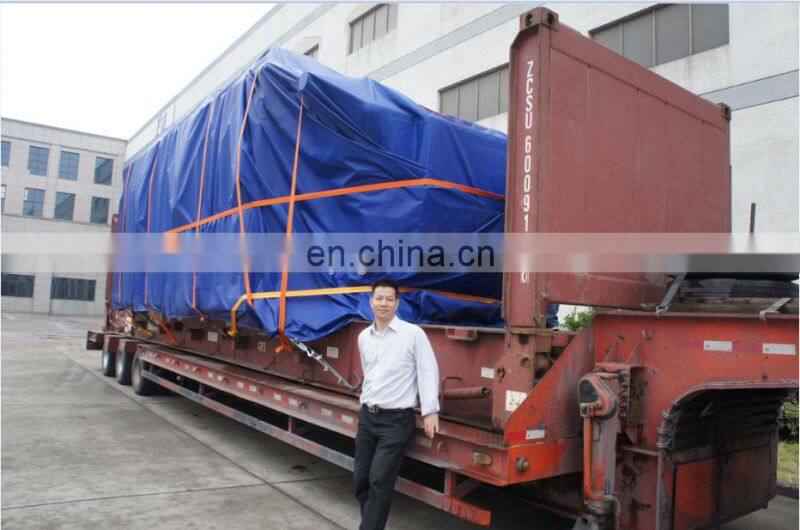

Packing & Delivery

Packaging
Size	1023 (L) * 456 (W) * 789 (H)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	12080 mm (L) * 2438 (W) * 1950 (H)
Weight	9.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
