High Quality 304 Stainless Steel PLG 1500/8 Continuous Disc Plate Dryer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Quality Button Control PLG 2200/12 Continuous Disc Plate Dryer
-
Manufacturer Sale 304 Stainless Steel PLG 1200/4 Continuous Disc Plate Dryer
-
Best Price Button Control PLG 1500/14 Continuous Disc Plate Dryer
-
Best Sale 304 Stainless Steel PLG 2200/24 Continuous Disc Plate Dryer
-
Factory Price 304 Stainless Steel PLG 3000/18 Continuous Disc Plate Dryer for Powder
-
Cheap Price Traditional Disc Dryer Patented Drying Oven Drying Equipment Manufacturer
Product Description
Product Description

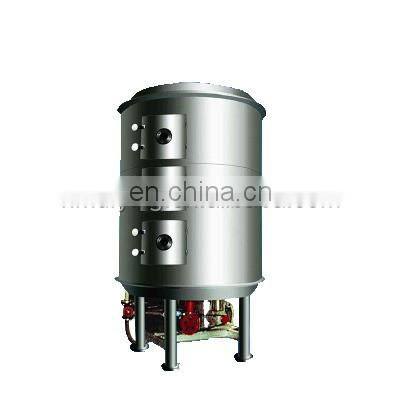

High quality 304 stainless steel PLG 1500/8 Continuous Disc Plate Dryer
DESCRIPTION
PLG Series Continuous disc dryer is a high efficiency conducting and continuous drying equipment. Its unique structure and operating principle determine that it has advantages of high heat efficiency, low energy consumption, small occupied area, simple configuration, easy operation and control as well as good operating environment and etc. It can be widely used in drying process in the fields of chemical, pharmaceuticals, agricultural, foodstuff, feed, and other industries.There are three major types: normal pressure type, closed type, and vacuum type; and four major models: 1200, 1500, 2200 and 3000; and three kind of material grades, A (carbon steel), B (use stainless steel for material contacted area), and C (use stainless steel for material contacted area, steam pipes, main shaft and supports, and linings for cylinder body and top cover).The drying area of the dryer is 4 to 180. We have produced hundreds of models with auxiliary devices which are available to meet requirements of all customers.
WORKING PRINCIPLE
The wet material is fed continuously to the first drying layer on the top of the dryer. It will be turned and stirred by rakes
when the rake arm rotates and drop down to the outer edge of the large drying plate along the exponential helical line. The
material will be moved from the small drying plate to its outer edge and drop down to the outer edge of the large drying plate underneath. Both small and large drying plates are arranged alternately so the materials can go through the dryer continuously. The heat medium can be saturated steam, hot water or thermal oil. The heat will be led into hollow drying plates from one end and come out from the other end. The dried materials will drop from the last layer of the drying plate to the bottom of the dryer and then moved by rakes to the discharge outlet. The material moisture will be removed from the exhaust outlet on the top cover. For the vacuum-type plate dryer, the moisture will be sucked out by the vacuum pump on the top cover. The dried materials will be discharged from the bottom layer. The drying capability can be improved if the dryer equipped with supplementary devices such as finned heater, condenser for solvent retrieval, bag dust remover, return and mix mechanism, draft fan, and etc.
The wet material is fed continuously to the first drying layer on the top of the dryer. It will be turned and stirred by rakes
when the rake arm rotates and drop down to the outer edge of the large drying plate along the exponential helical line. The
material will be moved from the small drying plate to its outer edge and drop down to the outer edge of the large drying plate underneath. Both small and large drying plates are arranged alternately so the materials can go through the dryer continuously. The heat medium can be saturated steam, hot water or thermal oil. The heat will be led into hollow drying plates from one end and come out from the other end. The dried materials will drop from the last layer of the drying plate to the bottom of the dryer and then moved by rakes to the discharge outlet. The material moisture will be removed from the exhaust outlet on the top cover. For the vacuum-type plate dryer, the moisture will be sucked out by the vacuum pump on the top cover. The dried materials will be discharged from the bottom layer. The drying capability can be improved if the dryer equipped with supplementary devices such as finned heater, condenser for solvent retrieval, bag dust remover, return and mix mechanism, draft fan, and etc.
SPECIFICATIONS FOR LPG-5/25/50 High Speed Centrifugal Spray dryer | ||||||
Model | LPG-5 | LPG-25 | LPG-50 | |||
Inlet hot air temperature | 100-350 ℃ Automatically controlled | |||||
Outlet hot air temperature | 60-90℃ | |||||
Max. water evaporation capacity kg/h | 5 | 25 | 50 | |||
Spray nozzle transmission mode | Compressed air transmission | Mechanical transmission | ||||
Rotation Speed (r,p.m) | 25000 | 18000 | 18000 | |||
Spraying disc diameter(mm) | 50 | 100 | 120 | |||
Heat supply | EElectricity | Electricity+Steam | Electricity+Steam, fuel oil and gas | |||
Max. electric heating power | 9Kw | 36Kw | 63Kw | |||
Overall dimensions | 1.8*0.93*2.2m | 3*2.7*4.26m | 3.7*3.2*5.1m | |||
Dried powder collecting rate | ≥95 | ≥95 | ≥95 | |||
Main Features
1) Fast drying speed: after spraying into small drops, contacting area greatly increased. so when these small drops contact with hot air, 95%-98% water will be evaporated sonly in 5-35 seconds. it is specially suitable for heat sensitive material.
2) Because product is dried in hot air, so shape of product keeps the same as sprayed drops. it is well dispersed ball shape with good flowability and solubility.
3) Stable operating: it is automatic and continuous operating equipment which is easy for controlling and adjusting.
4) Simplified working process: it is suitable for drying slurry with water content between 40%-90%. it will produce uniformed powder and save process such as grinding and sieving.
5) Operating condition is good and avoid ash leaking during drying process.
6)Raw material can be solution,slurry,emultion,supension,paste,melting material,or even caky material.
Certifications

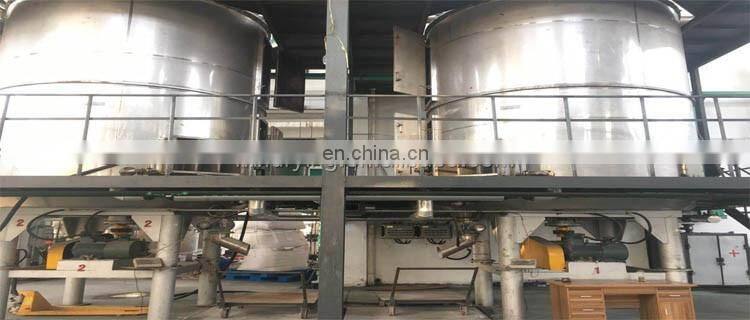

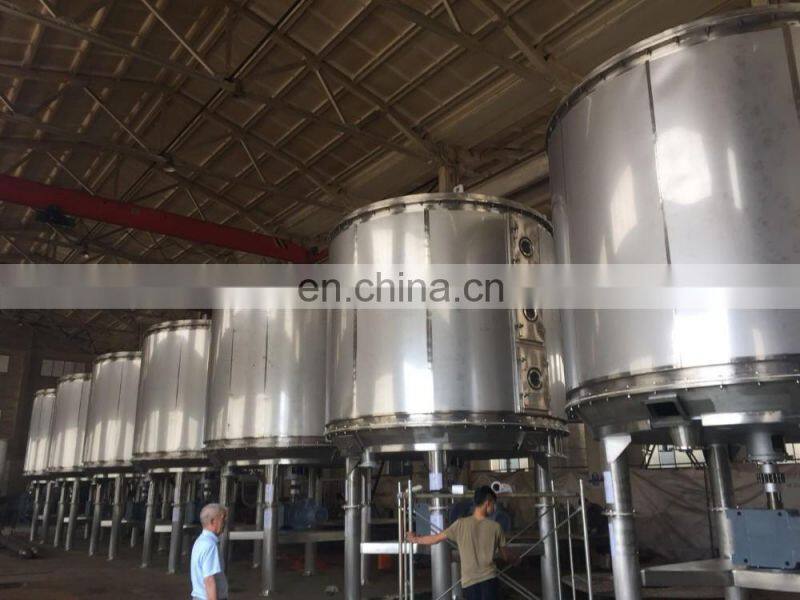

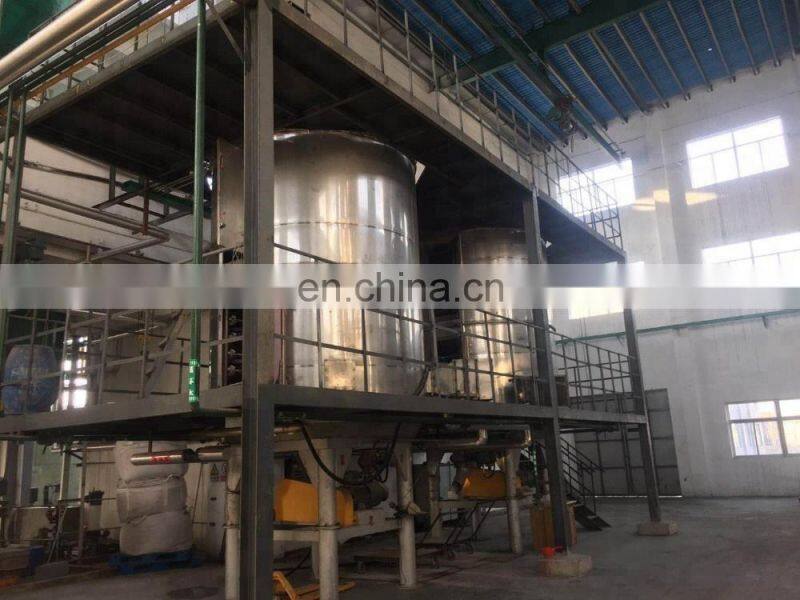

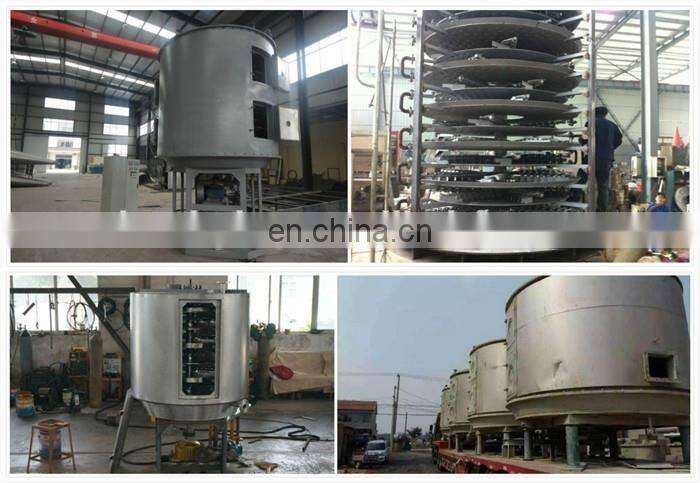

Detailed Images

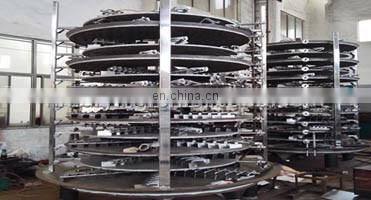

Machine Parts

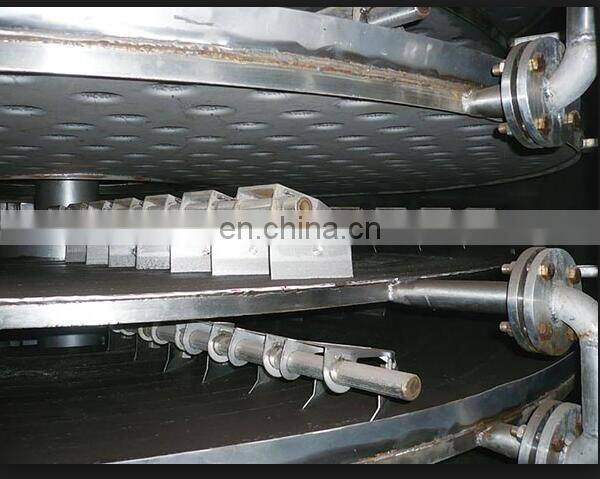

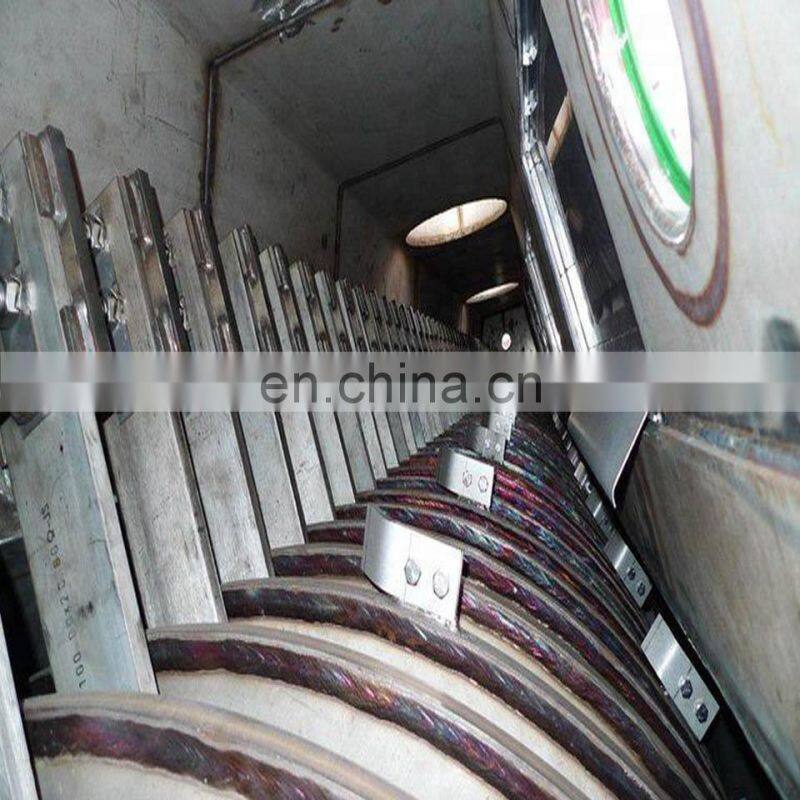

Name: plate dryer's plate
Brand: Haomai
Original: China
Excellent welding process, it contain jacket inside of the plate, conduct heating method, has a more thermal efficiency than other type of dryers.
Principle:

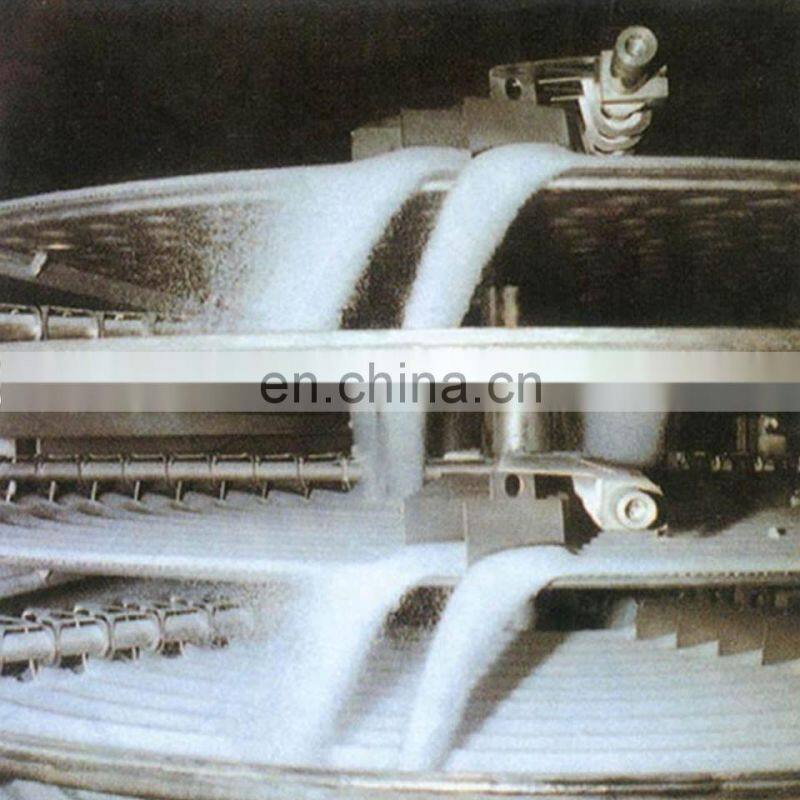

The material goes from the top plate then drop to the next layer plate, it very suitable for the powder material. On each surface of the plate, there are stirrer to make the material turn faces and be dried more evenly.
it also can made with vacuum fuction, it is suitable for the heat sensitive materials.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 12032mm (L) * 2352mm (W) * 2393 (H) | |
Weight | 3.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
