Long Service Life Easy Operation Snack Caramelized Nuts Coating Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SED-5GB High Efficient Coating Machine For Tablet CandyNegotiableMOQ: 1 -
High Capacity Jelly Candy Tablet Thin Film Coating MachineNegotiableMOQ: 1
-
Pharmaceutical Thin Film Tablet Coating Machines For SaleNegotiableMOQ: 1
-
Small Pharmaceutical Candy Pill Tablet Coating MachinesNegotiableMOQ: 1
-
Low Price Wholesale Coating Machine For Tablet Chocolate CandyNegotiableMOQ: 1
Recommend Products
Products Description

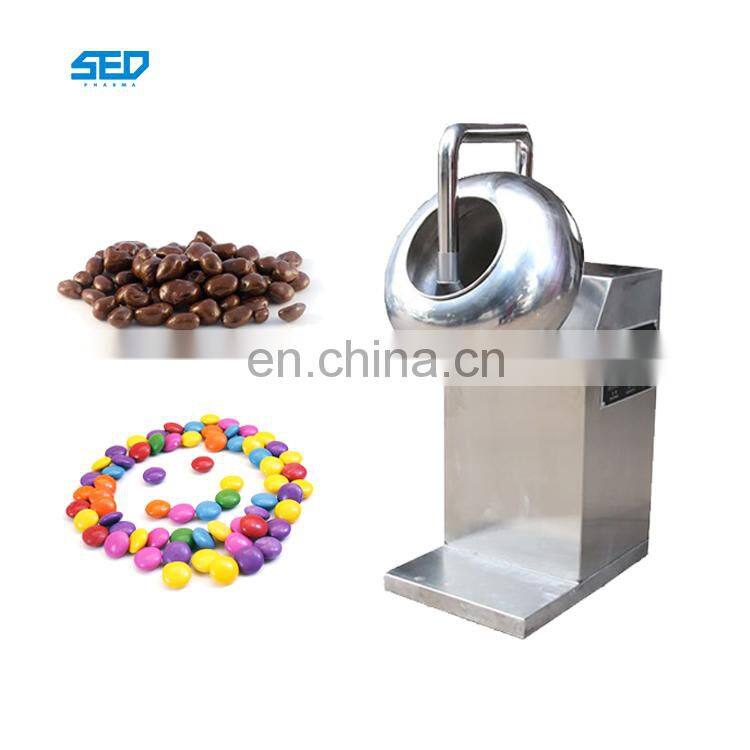

This machine is mainly used for the sugar coating of tablets, pills and granules, suitable for the coating material that cannot be sprayed and need to be added manually. The machine is widely used in pharmaceutical industry, candy manufacturing industry, and food industry.
Working Principle:
Through the pot body, the sugar-coated tablets are rolled and slipped in the pot to make the sugar-coated powder evenly distributed on all the medicines. The electric blower is included in the machine. The air outlet pipe can be extended into the chamber for heating. At the same time, the hot air blower is blown to the inner layer of the pot to remove the water in the surface of the tablet, thereby obtaining a rigid sugar-coated tablet.
Model |
300BY-D |
400BY-D |
600BY-D |
800BY-D |
1000BY-D |
Sugar-coated pot diameter (mm) |
300 |
400 |
600 |
800 |
1000 |
Capacity (kg/batch) |
1-4 |
2-6 |
6-15 |
30-50 |
50-80 |
Internal heating power (kw) |
0.5 |
0.5 |
0.8 |
0.9 |
1 |
Speed of sugar-coated pot (rpm) |
0-46 |
0-46 |
0-40 |
0-32 |
0-32 |
Main motor power (kw) |
0.12 |
0.12 |
0.75 |
1.1 |
1.1 |
Blower motor power (kw) |
0.06 |
0.06 |
0.1 |
0.2 |
0.2 |
Weight (kg) |
30 |
35 |
115 |
230 |
240 |
Total power (kw) |
0.66 |
0.68 |
1.7 |
2.2 |
2.3 |
Dimension (mm) |
560*300*850 |
560*400*850 |
780*600*1360 |
1150*800*1550 |
1150*1100*1600 |
