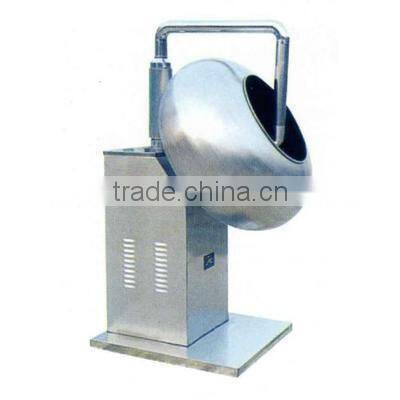

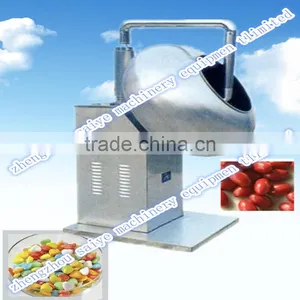

water chestnut type coating machine
USES:
This machine is mainly suitable for pharmaceutical industry in pills, tablets of sugar production, can also be used in food, light industry, chemical industry, the spherical or rolled granular material, mixing and polishing.For example: chocolate on polishing, peanuts, sugar, spices, making dumplings, pearl powder round, rolled desiccant, production of chemical packing, aluminum hydroxide, alumina ball, ceramic ball molecular sieve, catalyst and so on.
Structure features:
This machine consists of fuselage, worm gear box body, sugar pot, heating device, fan, the main parts such as electric equipment, it by the motor through v-belt drive worm gear and worm, turns the sugar pot, under the action of centrifugal force, the material up and down in the pot for friction, to mix icing, pelletizing and lighting effects.
The main technical parameters:
model |
SY200 |
SY300 |
SY400 |
SY600 |
SY800 |
SY1000 |
SY1250 |
Sugar pot diameter |
200mm |
300mm |
400mm |
600mm |
800mm |
1000mm |
1250mm |
Production capacity |
1kg/time |
2kg/time |
5kg/time |
15kg/time |
30-50kg/time |
50-70kg/time |
80-80.kg/time |
Sugar pot speed |
46r/min |
46r/min |
46r/min |
36r/min |
36r/min |
32r/min |
28r/min |
The motor power |
0.37kw |
0.37kw |
0.37kw |
0.75kw |
1.1kw |
1.1kw |
3kw |
The fan power |
0.075kw |
0.075kw |
0.075kw |
0.075kw |
1.1kw |
1.1kw |
3kw |
Electric heating power |
0.75kw |
0.75kw |
0.75kw |
1kw |
2kw |
2kw |
3kw |
Overall dimensions(L*W*H)mm |
500 * 350 * 700mm |
500*350 *700mm |
550*400*800mm |
800 * 600 * 900mm |
1000*800 *1430mm |
1100*1000 *1560mm |
1250*1200 *1820mm |
Weight |
36kg |
37kg |
38kg |
85kg |
205kg |
220kg |
350kg |
