Products Description

This machine is suitable for the sugar coating, polishing and rolling of Chinese and Western tablets, pills, pellets, small pills, water pills, dropping pills and granules in pharmaceutical, chemical, food, research institutes and hospitals. It can also be used for the trial production of new drugs in scientific research institutions.

Working Principle:

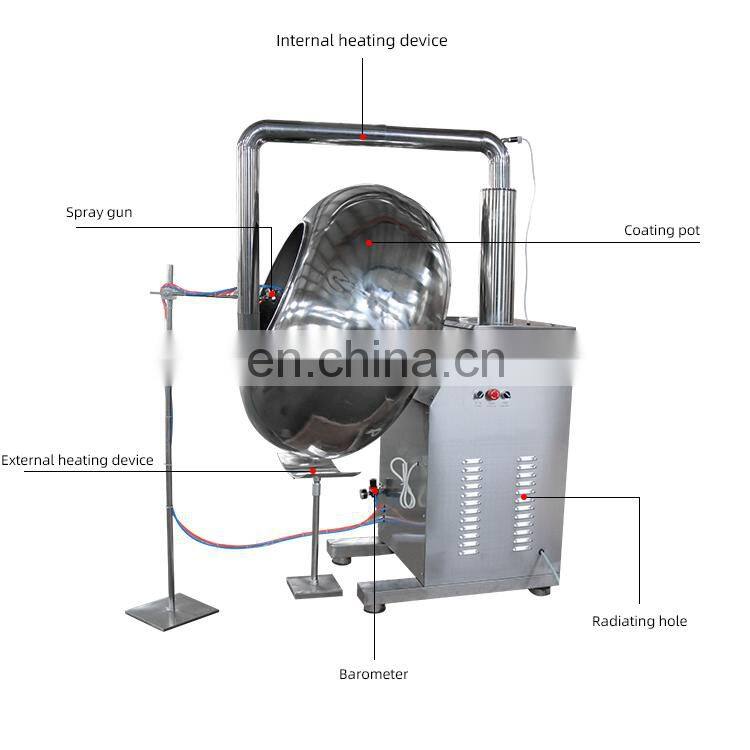

Through the pot body, the tablets roll, slide and rub in the pot, so that the coated powder is evenly distributed on all Tablets. The air outlet pipe of the attached electric blower can extend into the pan for heating. At the same time, the blower passes hot air to the inner layer of the pot to remove the water on the surface of the tablets, so as to obtain the stiff sugar coated tablets.

Model	SED-JB300	SED-JB400	SED-JB600	SED-JB800	SED-JB1000
Dia. of Pan (mm)	300	400	600	800	1000
Capacity (kg/time)	1-4	2-6	6-15	30-50	50-80
Rotary speed of pan (rpm)	46	46	40	32	32
Power of motor (kW)	0.12	0.12	0.75	1.1	1.1
Power of fan (kW)	0.06	0.06	0.1	0.2	0.2
Power of internal heating (kW)	0.5	0.5	0.85	0.9	1
Total power (kW)	0.66	0.68	1.7	2.2	2.3
Outline size (mm)	560300850	560400850	7806001360	11508001550	*115011001600*
Weight (kg)	30	35	115	230	240
