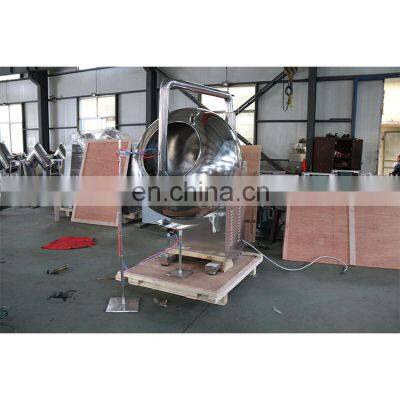

50-80 kg / Time High Capacity Peanut Coating Machine Candy Sugar Coating Pan Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fertilizer Tablet Chocolate Coating Pan Machine for Food Chemical Pharmaceutical IndustriesNegotiableMOQ: 1 -
Pharmaceutical Tablet Coating Machines Coating Equipment for SaleNegotiableMOQ: 1
-
Low Maintenance Cost Coating Machine for Tablet Coating EquipmentNegotiableMOQ: 1
-
50 - 80 kg / Time High Capacity Panner Peanut Sugar Coating MachineNegotiableMOQ: 1
-
1000mm Pan Diameter Simple Structure Peanut Sugar Film Coating Pan MachineNegotiableMOQ: 1
Recommend Products
Products Description
This machine is suitable for the sugar coating, polishing and rolling of Chinese and Western tablets, pills, pellets, small pills, water pills, dropping pills and granules in pharmaceutical, chemical, food, research institutes and hospitals. It can also be used for the trial production of new drugs in scientific research institutions.
Working Principle:
Through the pot body, the tablets roll, slide and rub in the pot, so that the coated powder is evenly distributed on all Tablets. The air outlet pipe of the attached electric blower can extend into the pan for heating. At the same time, the blower passes hot air to the inner layer of the pot to remove the water on the surface of the tablets, so as to obtain the stiff sugar coated tablets.
Model | SED-JB300 | SED-JB400 | SED-JB600 | SED-JB800 | SED-JB1000 |
Dia. of Pan (mm) | 300 | 400 | 600 | 800 | 1000 |
Capacity (kg/time) | 1-4 | 2-6 | 6-15 | 30-50 | 50-80 |
Rotary speed of pan (rpm) | 46 | 46 | 40 | 32 | 32 |
Power of motor (kW) | 0.12 | 0.12 | 0.75 | 1.1 | 1.1 |
Power of fan (kW) | 0.06 | 0.06 | 0.1 | 0.2 | 0.2 |
Power of internal heating (kW) | 0.5 | 0.5 | 0.85 | 0.9 | 1 |
Total power (kW) | 0.66 | 0.68 | 1.7 | 2.2 | 2.3 |
Outline size (mm) | 560*300*850 | 560*400*850 | 780*600*1360 | 1150*800*1550 | 1150*1100*1600 |
Weight (kg) | 30 | 35 | 115 | 230 | 240 |
