SED-40GB High Efficiency Automatic Film Coating Machine For Sugar Chocolate Tablet
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling 40kg/time Peanut Sugar Chocolate Spray Coating Machine AutomaticNegotiableMOQ: 1 -
Chinese Supplier High Efficiency Peanut Chocolate Coating Machine PriceNegotiableMOQ: 1
-
High Safety Level Good Price Sugar Candy Spraying Coating MachineNegotiableMOQ: 1
-
Nice Price Commercial Automatic Spray Sugar Peanut Candy Coating MachineNegotiableMOQ: 1
-
Wide Range of Application Automatic Food Chocolate Coating MachineNegotiableMOQ: 1
Recommend Products
Products Description
This product was developed based on the imported equipment in 1992 and has been placed on the list of the "Sin-tech Spark Project of Zhejiang”. In 1995, this product passed the provincial level technical appraisal of new product,was awarded the "Wenzhou Scientific and Technological Improvement Award" and also recommended as the "Brand-name and Quality High-tech Product of Zhejiang" and "National New Product of 1996". And it has been exported to such regions as Europe, Australia and Southeast Asia, etc. and can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.And it has such characteristics as good appearance in design ,high efficiency, low energy consumption and small floor area, etc.

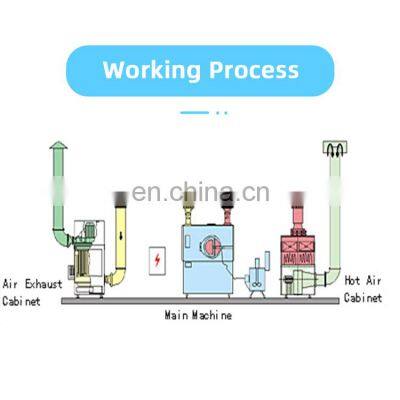

The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in the clean and closed rotational cylinder of the film coating machine. And it can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film.
Product Name |
SED-40GB |
Max. tablet volume |
40 Kg / time |
Sugar coating drum dia. |
820mm |
Feed inlet dia. |
340mm |
Drum speed |
2-18 r.p.m |
Host machine motor power |
1.1 kw |
Exhaust cabinet motor power |
2.2 kw |
Hot air cabinet motor power |
1.1 kw |
Hot air cleanness |
100000 level |
Air heater temp.-adjust range |
~ 80 ℃ |
Exhaust blower air flow |
5268 m3/h |
Details Images

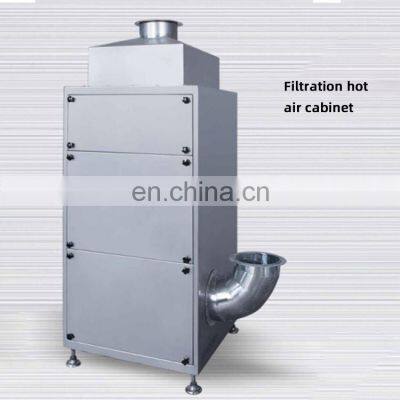

Filtration hot air cabinet

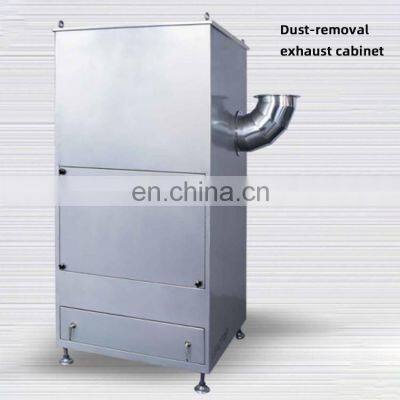

Dust-removal exhaust cabinet
Agitating and holding tank
Outboard discharging device
Built in discharging device
Peristaltic pump
Coating paddle

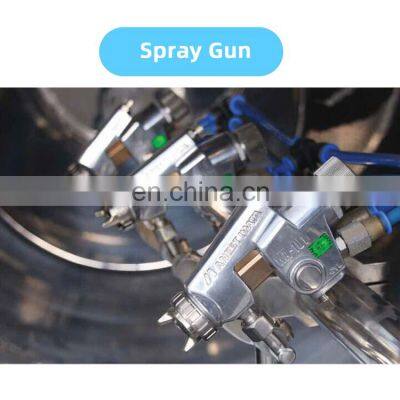

Spray gun
