Multi-functional Automatic Beef Paste Honey Chocolate Blister Packaging Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Simple Maintenance Jam Ketchup Cheese Perfume Blister Packing MachineNegotiableMOQ: 1 -
Good Price Pharmaceutical Calcium Tablet Candy Blister Packing MachineNegotiableMOQ: 1
-
Automatic Perfume Oil Sauce Blister Packing Machine Professional ManufacturerNegotiableMOQ: 1
-
New Jelly Honey Oil Blister Packing Machine With One Year WarrantyNegotiableMOQ: 1
-
Automatic Pharmacy Medical Beauty Capsule Blister Packing MachineNegotiableMOQ: 1
Recommend Products
Products Description
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product.
Main Technical Data
Product Name |

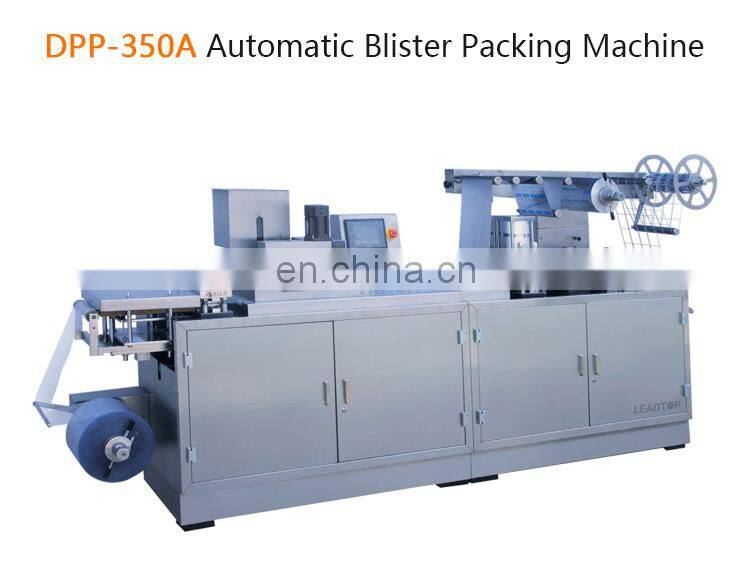

DPP-350A Automatic Blister Packing Machine |
||||||
Blanking frequency (sheets): |
15-45 |
||||||
Sheet's quantity of one blanking (sheets): |
1-8(depends to your blister size) |
||||||
Capacity (sheets/hour): |
1800-21600 |
||||||
Adjustable scope of feed travel: (mm) |
10-160 |
||||||
Max Forming area and depth (mm) PVC (For medicine): |
350×120×25 |
||||||
Capacity of air compressor(m3/min): |
≥0.36 |
||||||
Power supply (KW): |
220V AC, 30 Hz, Three Phase (Depend on your requirement. |
||||||
Wrapper specification (mm): |
PVC for medicine 350× (0.15-0.5) mm Aluminum film 350× (0.02-0.035) mm |
||||||
Weight (kg): |
2200Kg |
||||||
1.Travel scope can be adjusted.
2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6.Stepping motor drives and tow materials.
7.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6.Stepping motor drives and tow materials.
7.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Electric Parts List
(The electronic parts can be also required by you.)
Name |
Model |
Qty |
Remark |
||
Touch-screen |
MT506MV |
1 |
WENVIEW |
||
PLC |
DVP32ES00T2 |
1 |
MITSUBISHI |
||
Temperature controller |
DVP4848V1 |
3 |
MITSUBISHI |
||
Transducer |
B TYPE 1.5KW |
1 |
DELTA |
||
Encoder |
ZLB3806-G-500BM |
1 |
|||
Stepping driver |
HB-B3C |
1 |
|||
Stepping motor |
110BYG350A(200Nm) |
1 |
|||
Air breaker |
BKN-3P/32A |
1 |
LG |
||
BKN-1P/16A |
1 |
||||
BKN-1P/10A |
3 |
||||
BKN-1P/3A |
1 |
||||
AC contactor |
GMC-32 |
1 |
LG(AC220V) |
||
Relay |
MY2NT |
1 |
OMRON(DC24V) |
||
MY4NT |
|||||
Proximity switch |
TL-Q5MC1 |
2 |
|||
Proximity switch with delayer |
J6-D7NK |
3 |
|||
Urgent stop switch |
ZB2-BS54C |
1 |
|||
Thermocouple |
Model K,3m |
3 |
3M |
||
Switch power adapter |
S-30W |
1 |
24V-5V |
||
Solid state relay |
25DA |
3 |
|||
Details Images
Plastic preheating and unwind

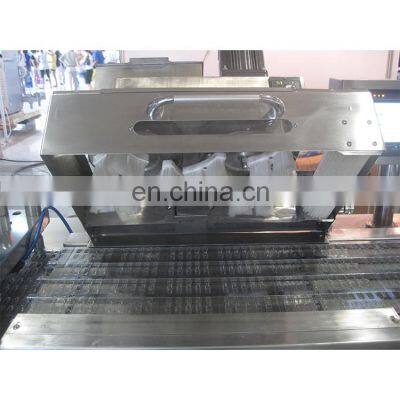

Plastic blister forming station
Brash feeder

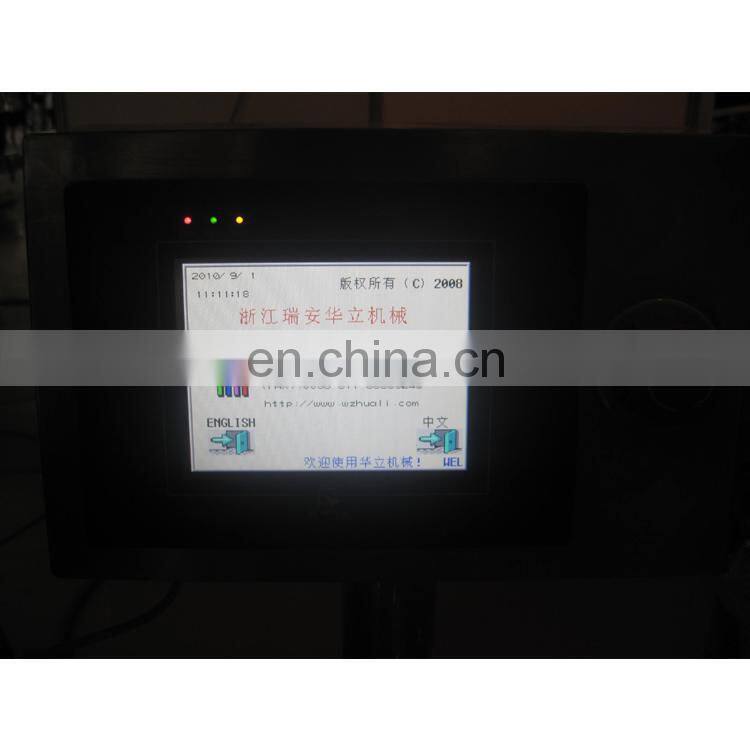

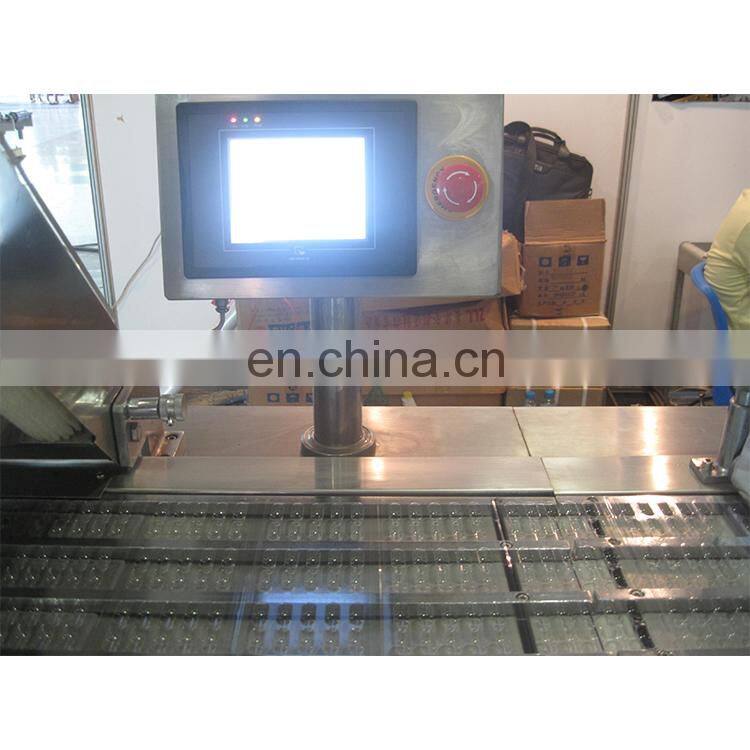

Touch screen
Aluminum and plastic sealing station
Step motor for towing material

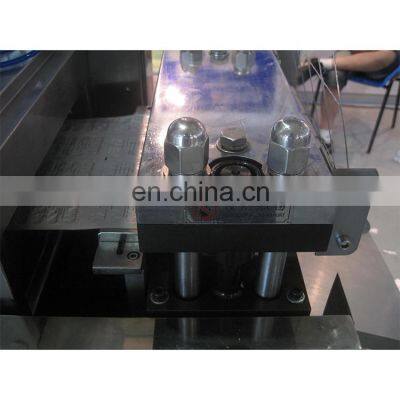

Aluminum plastic blister cutting station
Electronic box and color point sensor

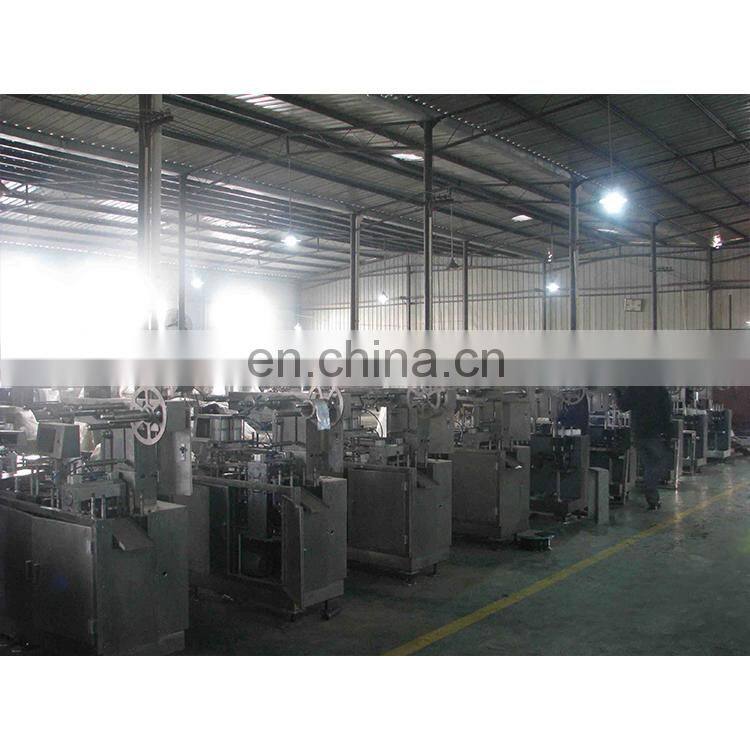

Company Profile
