Sugar granulating machine

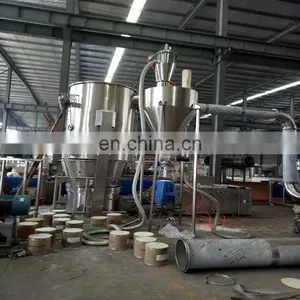

FLP Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray coating-fluid coating-drying in one body. The machine combines various process operations. Particularly it is suitable for granulating, pelleting and coating of various varieties in pharmaceutiCal industry, foodstuff industtry and chemical industry.etc.
Multi-function such as granulating,pelleting,coating in one machine.
Powder material granulating.
Powder material coating.
Powder material pelleting.
Chinese medicine spray drying,granulating and coating.
Make 1 0-30 meshes big granule.
Film coating of Powder,granules and pellets,entericrelease.slow and controI reIease coating.
Item Model(LBF) | ||||||||||||||
Name | Unit | 10 | 15 | 20 | 30 | 45 | 60 | 90 | 120 | |||||
Diameter of container | mm | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1400 | 1500 | |||||
Production capacity | kg/batch | 2.5-10 | 3-15 | 5-20 | 7.5-30 | 10-45 | 15-60 | 20-90 | 30-120 | |||||
Power of fan | kw | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | |||||
Steam | Pressure | Mpa | 0.4-0.6 | |||||||||||
Consumption | kg/h | 35 | 42 | 47 | 60 | 140 | 160 | 180 | 240 | |||||
Pressure | Mpa | 0.6 | ||||||||||||
Consumption | m3/min | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | |||||
Noise | dB | Treatment of air volume not exceed 75DB | ||||||||||||
Overall dimension of main machine | H1(mm) | 2790 | 3350 | 3650 | 3720 | 3720 | 3850 | 3950 | 4190 | |||||
H2(mm) | 340 | 490 | 540 | 590 | 640 | 690 | 740 | 790 | ||||||
H3(mm) | 2570 | 3130 | 3430 | 3500 | 3500 | 3630 | 3720 | 3975 | ||||||
φ1(mm) | 700 | 1000 | 1000 | 1200 | 1300 | 1400 | 1500 | 1600 | ||||||
φ2(mm) | 250 | 250 | 250 | 280 | 280 | 280 | 280 | 315 | ||||||
L(mm) | 1250 | 1400 | 1450 | 1500 | 1550 | 1600 | 1650 | 1700 | ||||||
B1(mm) | 1160 | 1460 | 1560 | 1600 | 1760 | 1860 | 1960 | 2000 | ||||||
B2(mm) | 1860 | 2460 | 2660 | 2860 | 3060 | 3260 | 3460 | 3660 | ||||||
Remarks:Some of the parameters are for reference only.According to the condition of material,our factory has the right to change without notice. | ||||||||||||||
