High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch

High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch thumbnail-1
High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch thumbnail-2
High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch thumbnail-3
High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch thumbnail-4
High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch thumbnail-5
High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch photo-1
High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch photo-2
High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch photo-3

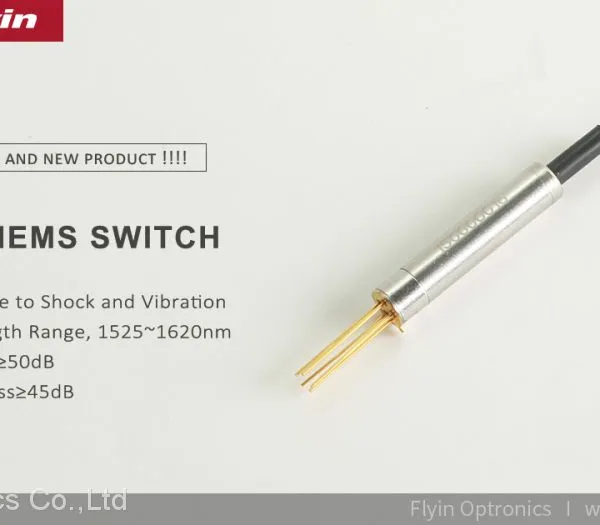

High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch photo-4

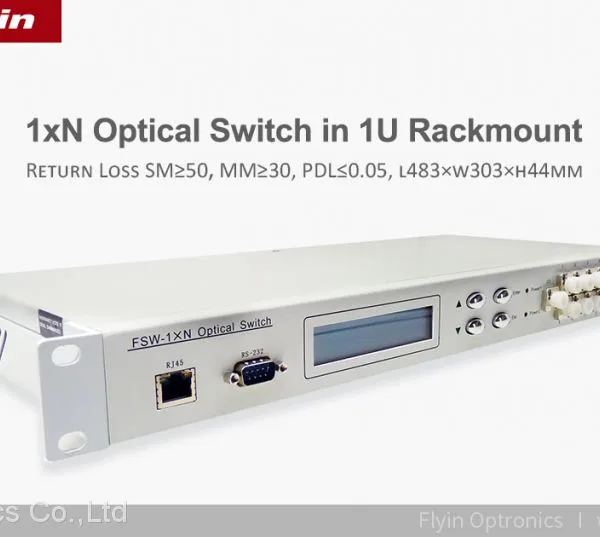

High Performance 128 Channel Fiber Optic 1xN Passive Optical Switch photo-5
US$ 15 - 16 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
FY-optical-switch
Place of Origin:
China
Model Number:
FY-switch
Contact Supplier Request Quote Chat Now
Flyin Optronics Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FY-optical-switch
Place of Origin China
Model Number FY-switch
Overview
Quick Details

  • Model Number:

  • FY-switch

  • Type:

  • FTTx Solutions

  • Place of Origin:

  • Guangdong, China

  • Brand Name:

  • FY-optical-switch

  • Use:

  • FTTH

  • Application:

  • Ring network;Testing of fiber optical component

  • Product Name:

  • 1xN Mechanical Optical Switch

  • Operation Wavelength (nm):

  • 850/1310 / 1550 / 1650

  • Return loss (dB):

  • MM≥30 SM≥50

  • Cross Talk (dB):

  • MM≥35 SM≥55

  • WDL (dB):

  • ≤0.25

  • TDL (dB):

  • ≤0.25

  • Power Supply(V):

  • 3.0 or 5.0

  • Switch time(ms):

  • ≤10

  • Transmission Power(mW):

  • 500
Supply Ability

  • Supply Ability

  • 50000 Piece/Pieces per Month

Packaging & Delivery

  • Port

    • Shenzhen

  • Lead Time:

  • Quantity(Pieces) 1 - 200 >200
    Est. Time(days) 7 To be negotiated
Product Description
1xN Mechanical Passive Optical Switch, Operation Wavelength: 850nm OR 1310nm OR 1550nm OR 1650nm OR 1310/1550nm OR Specify, Insertion Loss:1
Feature
⊙Low insertion loss
⊙UP to 128 channel
⊙Modularized design
⊙Parallel interface(TTL)
⊙Epoxy free on optical path
Application
⊙Ring network
⊙Testing of fiber optical component
⊙Remote monitoring in optical network
Parameter
Parameter
1xN Mechanical Optical Switch
Insertion Loss (dB)
1＜N≤12
16＜N≤32
32＜N≤64
64＜N≤128
Type:0.8 Max: 1.0
Type: 0.8 Max:1.0
Type: 1.2 Max: 1.5
Type: 1.7 Max:2.0
Wavelength Range (nm)
850/1310/155/1650nm
Operation Wavelength (nm)
850nm, 1260~1620
Wavelength Dependent Loss (nm)
≤0.25
Channel Crosstalk (dB)
MM≥35   SM≥55
Return Loss (dB)
MM≥30  SM≥50
Repeatability (dB)
≤ ±0.02
TDL (dB)
≤0.25
PDL (dB)
≤0.05
Transmission Power (mW)
500
Switch Time (ms)
≤ 10
Lifetime (Times)
≥10^7
Operating Temperature (℃)
-20~+70
Storage Temperature (℃)
-40~+85
Order Information
Channel
Mode
Wavelength
Voltage Type
Fiber Type
Fiber Diameter
Fiber Length
Connector
1~128
A=SM
A=850nm
A=5V
A=SM 9/125
A=250μm
A=1m
A=None

B=MM
B=1310nm
B=12V
B=MM 50/125
B=900μm
B=1.5m
B=FC/APC

/
C=1550nm
/
C=MM 62.5/125
C=2.0mm
C=Specify
C=FC/UPC


D=1650nm
D=Specify
D=3.0mm
D=SC/APC


E=1310/1550nm

/
E=SC/UPC


F=Specify



F=LC/APC







G=LC/UPC







H=ST







I=Specify


Product Tags: Single mode Optical Switch , Bypass Optical Switch , 1xN Passive Optical Switch
