20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+

20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ thumbnail-1
20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ thumbnail-2
20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ thumbnail-3
20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ thumbnail-4
20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ thumbnail-5
20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ photo-1
20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ photo-2
20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ photo-3

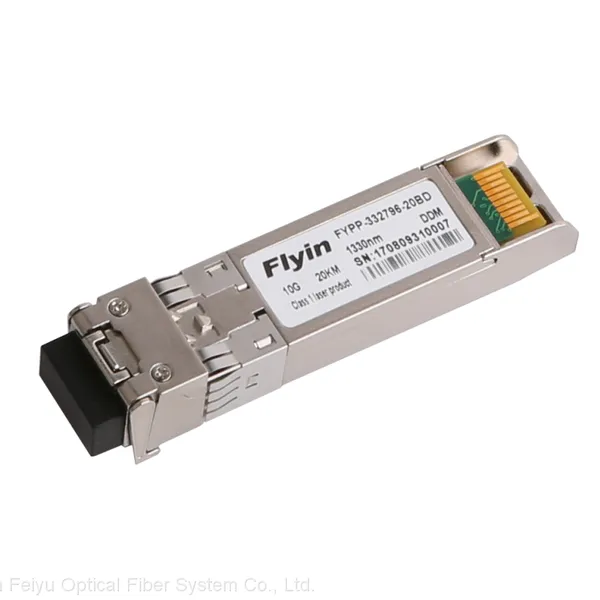

20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ photo-4
20KM 40KM 100KM 1.25G 10G CWDM SFP Bidi Fiber Optic Transceiver Module SFP+ photo-5
US$ 10 - 11.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Flyin-transceiver
Place of Origin:
China
Model Number:
FYPPC-**96-10BD
Contact Supplier Request Quote Chat Now
Flyin Optronics Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Flyin-transceiver
Place of Origin China
Model Number FYPPC-**96-10BD
Packaging & Delivery

  • Selling Units:

  • Multiple of 10

  • Package size per batch:

  • 15X20X15 cm

  • Gross weight per batch:

  • 2.000 kg

  • Package Type:

  • CWDM SFP bidi  fiber optic transceiver module SFP+ packing with retail box and carton box

  • Lead Time:

  • Quantity(Pieces) 1 - 10 >10
    Est. Time(days) 7 To be negotiated
CWDM SFP bidi fiber optic transceiver module SFP+
Product Description

 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with atrans impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

For further information, please refer to SFP MSA.

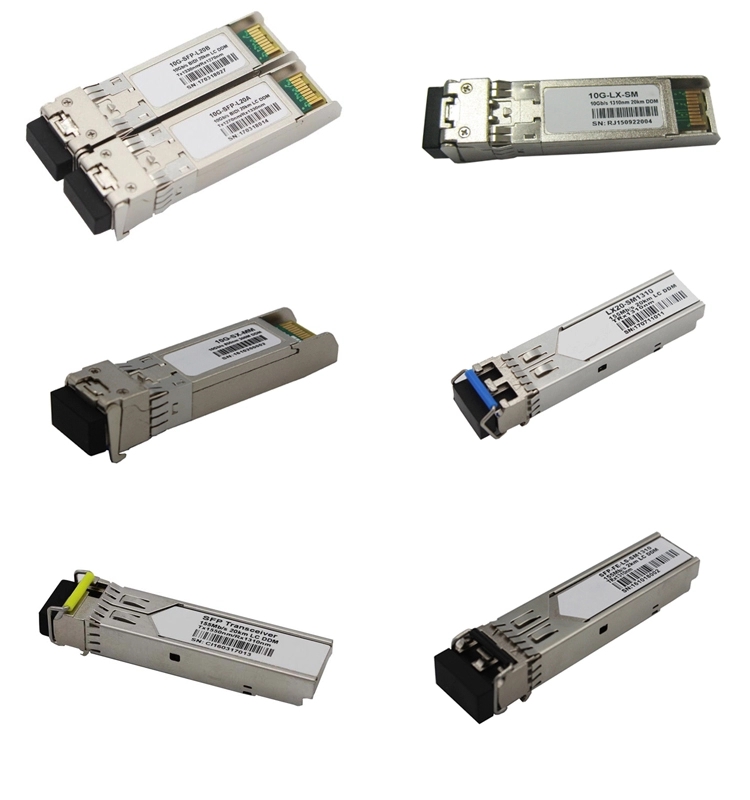

20KM 40KM 100KM 1.25G 10G CWDM SFP bidi fiber optic transceiver module SFP+

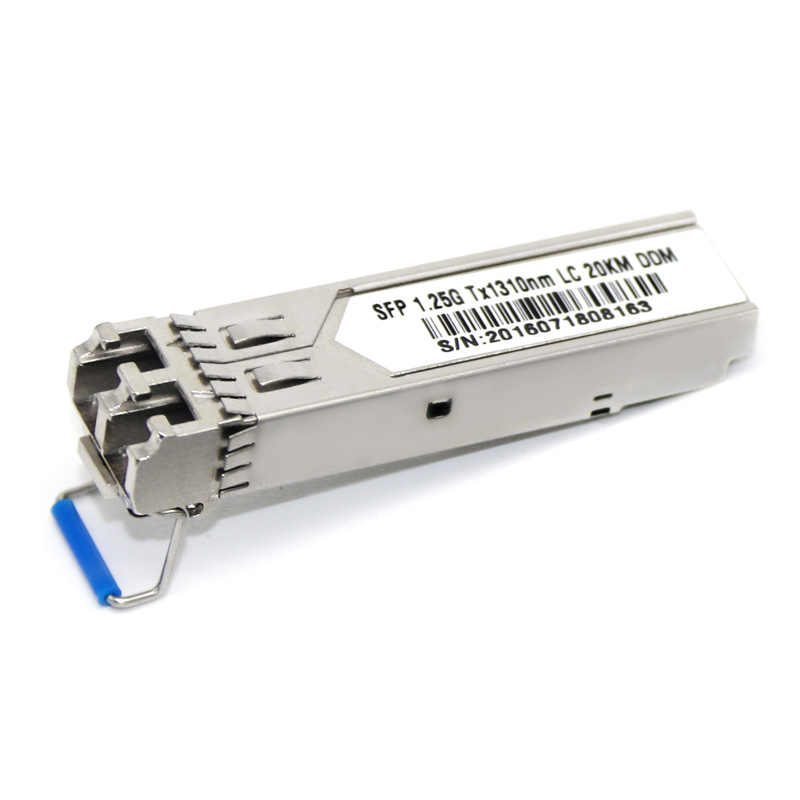

20KM 40KM 100KM 1.25G 10G CWDM SFP bidi fiber optic transceiver module SFP+

Features

1.Supports Links up to 30m using Cat 6a/7 Cable
2.SFF-8431 and SFF-8432 MSA Compliant
3.IEEE 802.3az Compliant
4.Low Power Consumption (2.5W max @ 30m)
5.Fast Retrain EMI Cancellation Algorithm
6.Low EMI Emissions
7.I2C 2 Wire Serial Interface for Serial Id and Phy
Registers
8.Auto-negotiates with other 10GBase-T-NC PHYs
9.Automatic Detection and Correction of Wiring and
10Polarity Swaps
Robust Die Cast Housing
Bail Latch Style ejector mechanism
Unshielded and Shielded cable support

10Gb/s SFP+ Dual Fiber Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
FYPP-8596-M3BD 10Gb/s 850nm 300M -6~-1dBm ≤-10dBm VCSEL LC/SC
FYPP-1396-02BD 10Gb/s 1310nm 2KM -6~-0.5dBm ≤-14.4dBm FP LC/SC
FYPP-1396-10BD 10Gb/s 1310nm 10KM -6~-0.5dBm ≤-14.4dBm DFP LC/SC
FYPP-1596-40BD 10Gb/s 1550nm 40KM -1~3dBm ≤-16dBm EML LC/SC
FYPP-1596-80BD 10Gb/s 1550nm 80KM -1~4dBm ≤-23dBm EML LC/SC
FYPPC-**96-10BD 10Gb/s 1270nm~1610nm 10KM -6~-1dBm ≤-15dBm DFP LC/SC
FYPPC-**96-40BD 10Gb/s 1470nm~1610nm 40KM -1~3dBm ≤-16dBm EML LC/SC
FYPPC-**96-80BD 10Gb/s 1470nm~1610nm 80KM -1~4dBm ≤-23dBm EML LC/SC
FYPPD-**96-40BD 10Gb/s C17~C61 40KM -1~3dBm ≤-16dBm EML LC/SC
FYPPD-**96-80BD 10Gb/s C17~C61 80KM -1~4dBm ≤-23dBm EML LC/SC

Remark: Above "**" refers to the corresponding wavelength.

For CWDM models, it refers to the wavelength 1270nm~1610nm.

For DWDM models, it refers to the wavelength C17(1563.86)~C61(1528.77nm).


10Gb/s SFP+BIDI Single Mode Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
FYPPB-2396-10BD 10Gb/s Tx1270/Rx1330nm 10KM -6~-0.5dBm ≤-14.4dBm DFP LC
FYPPB-3296-10BD 10Gb/s Tx1330/Rx1270nm 10KM -6~-0.5dBm ≤-14.4dBm DFP LC
FYPPB-2396-40BD 10Gb/s Tx1270/Rx1330nm 40KM -1~3dBm ≤-16dBm DFP LC
FYPPB-3296-40BD 10Gb/s Tx1330/Rx1270nm 40KM -1~3dBm ≤-16dBm DFP LC
FYPPB-2396-60BD 10Gb/s Tx1270/Rx1330nm 60KM 0~5dBm ≤-20dBm DFP LC
FYPPB-3296-60BD 10Gb/s Tx1330/Rx1270nm 60KM 0~5dBm ≤-20dBm DFP LC
FYPPB-4596-80BD 10Gb/s Tx1490/Rx1550nm 80KM -1~4dBm ≤-23dBm EML LC
FYPPB-5496-80BD 10Gb/s Tx1550/Rx1490nm 80KM -1~4dBm ≤-23dBm EML LC
