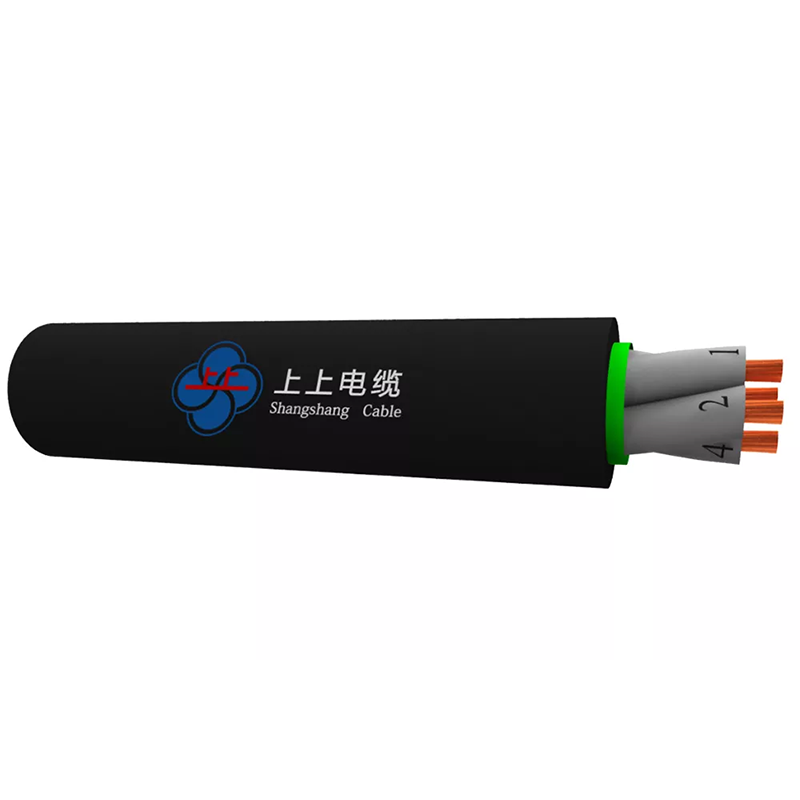

Power And Control Tray Cable (File No. E348459)
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Jiangsu Shangshang Cable Group Co., Ltd
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tray Control And Instrumentation Cable (File No. E348459)NegotiableMOQ: 1000 Pieces -
Tray Cable For Wind Turbine (File No.E348755)NegotiableMOQ: 1000 Pieces
-
Silicone Rubber Insulated Power Cable 0.6/1kVNegotiableMOQ: 1 Piece
-
Thermocouple Extension & Compensating Cables Up To 300/500VNegotiableMOQ: 1 Piece
-
Thermoplastic Elastomer Insulated And Sheathed Cable For Electric Vehicle Conductive Charging System AC Or DC 1500VNegotiableMOQ: 1 Piece
Brand Name
Jiangsu Shangshang Cable Group Co., Ltd
Place of Origin
China
APPLICATION
This cable is suitable for power transimission in the circuit network.
REFERENCE STANDARDS
UL 1277
CABLE TYPE & RATED VOLTAGE
TC 600V, 2000V
NUMBER OF CORE AND CONDUCTOR SIZES:
2Core: 18AWG– 1000Kcmil
3Core: 18AWG– 600Kcmil
4Core: 18AWG– 500Kcmil
5Core: 18AWG– 400Kcmil
6 -48Core: 18AWG– 12AWG
DESCRIPTION
Conductor:copper
Insulation: XLPE or EPR
Jacket(optional): PVC
MAIN CHARACTERISTIC
Rated temperature: 90℃
Rated voltage: 600V, 1000V
OPTIONAL CABLE MARKING
Sun Res
Oil res I
Oil res II
-40C
FT4 or IEEE1202
TC-ER
SHIELDED
