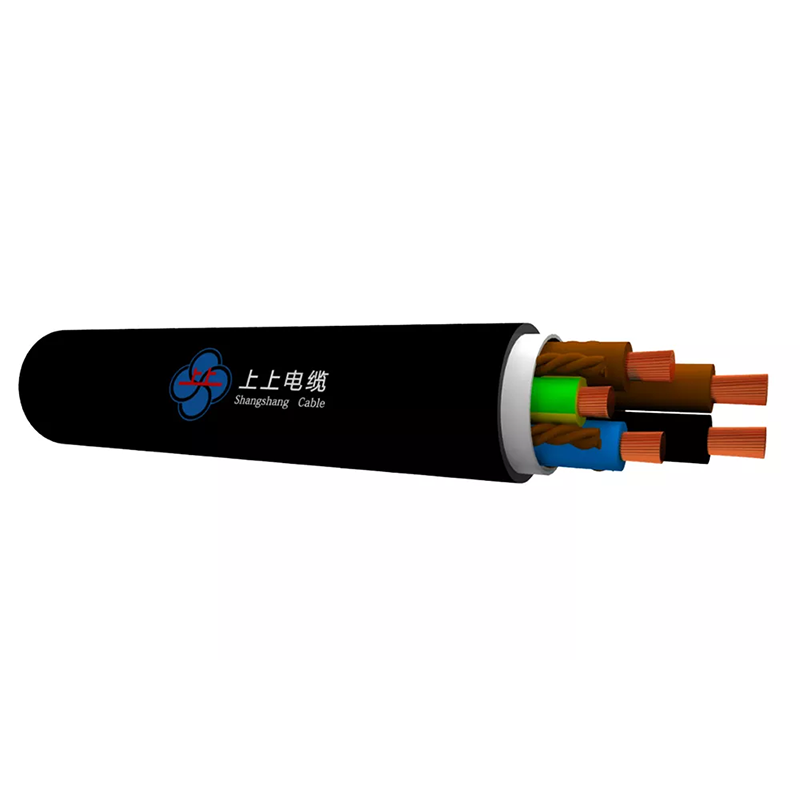

Tray Cable For Wind Turbine (File No.E348755)
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Jiangsu Shangshang Cable Group Co., Ltd
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Silicone Rubber Insulated Power Cable 0.6/1kVNegotiableMOQ: 1 Piece -
Thermocouple Extension & Compensating Cables Up To 300/500VNegotiableMOQ: 1 Piece
-
Thermoplastic Elastomer Insulated And Sheathed Cable For Electric Vehicle Conductive Charging System AC Or DC 1500VNegotiableMOQ: 1 Piece
-
Variable Frequency Drive (VFD) Cable, PVC Insulated, Armoured Or Non-Armoured, 0.6/1kV & 1.8/3kVNegotiableMOQ: 1 Piece
-
Silicone Rubber Insulated Power Cable 0.6/1kVNegotiableMOQ: 1 Piece
Brand Name
Jiangsu Shangshang Cable Group Co., Ltd
Place of Origin
China
APPLICATION
This cable is suitable for power connection or signal control in the circuit of wind power genertor
REFERENCE STANDARDS
UL 2277
CABLE TYPE & RATED VOLTAGE
WTTC 1000V
NUMBER OF CORE AND CONDUCTOR SIZES:
2Core: 18AWG– 1000Kcmil
3Core: 18AWG– 600Kcmil
4Core: 18AWG– 500Kcmil
5Core: 18AWG– 400Kcmil
6 -48Core: 18AWG– 12AWG
DESCRIPTION
Conductor:flexible copper wires
Insulation: XLPE or PVC
Jacket(optional): PVC
MAIN CHARACTERISTIC
Rated temperature: 90℃
Rated voltage: 600V
OPTIONAL CABLE MARKING
Sun Res
Oil Res I
Oil Red II
-40C
FT4 or IEEE1202
