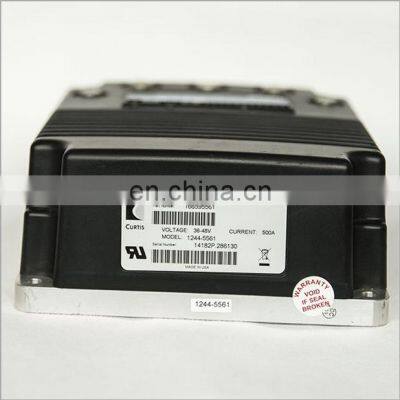

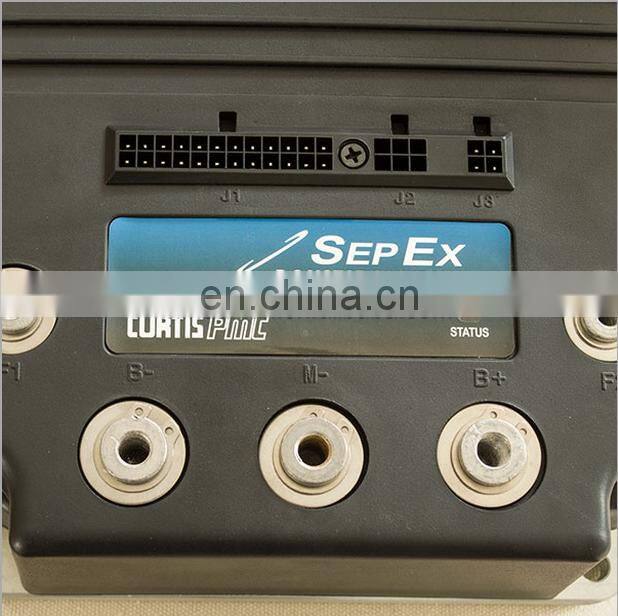

36-48V Curtis Brushless Motor Controller 1244-5651(600A) for EP Electric Forklift Using

CURTIS 1244 MultiMode™ controllers are separately excited motor speed controllers designed for use in a variety of material handling vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include low lifts, stackers, fork lifts, reach trucks, personnel carriers, counterbalance trucks, order pickers, boom trucks, and other industrial vehicles.

The 1244 MultiMode™ controller offers smooth, silent, cost effective control of motor speed and torque. A four quadrant, full-bridge field winding control stage is combined with a two quadrant, half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors. The 1244 controller can also be specified to be compatible with CAN Bus communication systems.

The 1253 controller is fully programmable through a CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station. The programming device provides diagnostic and test capability in addition to configuration flexibility.

Key Features:

CURTIS Model: 1244-5651
Norminal Battery Voltage (Volts): 48V (default setting) or 36V
Amature Current Limit (amps): 600
Amature 2 Minute Current Rating (amps): 600
Amature 1 Hour Current Rating (amps): 160
Field 2 Minute Current Rating (amps): 50
Dimensions: L229xW178xH81 mm
Net Weight: 3.9 kg
