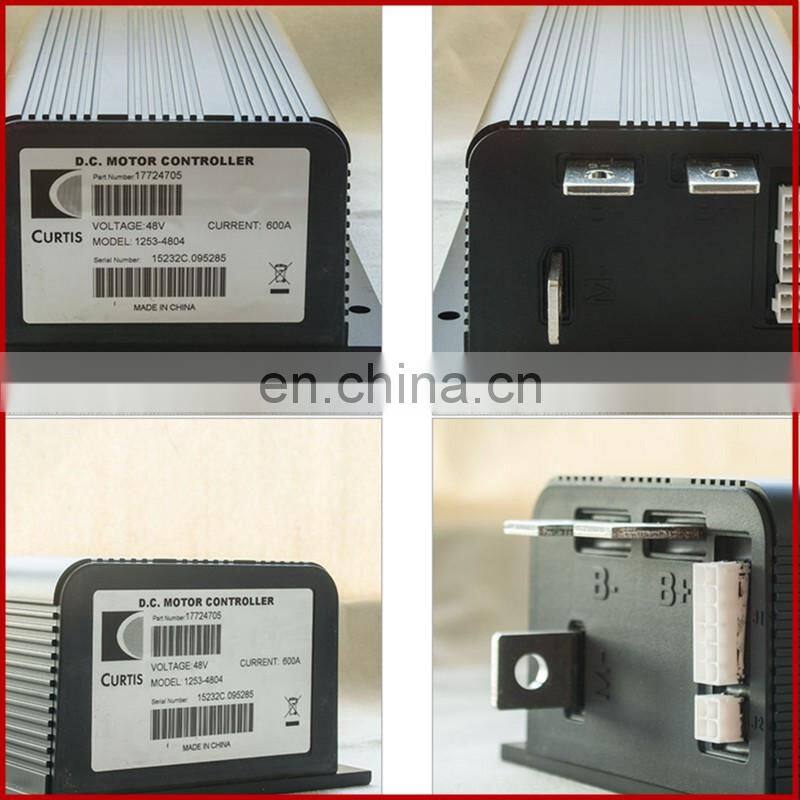

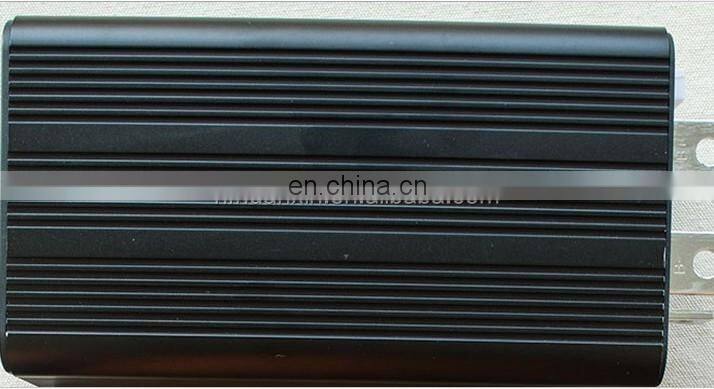

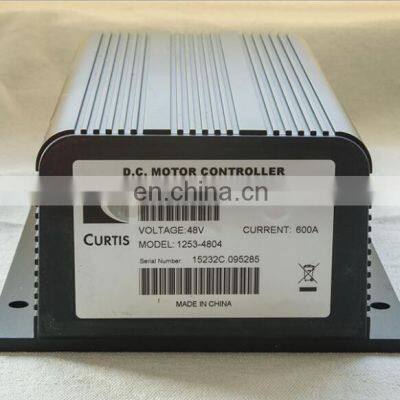

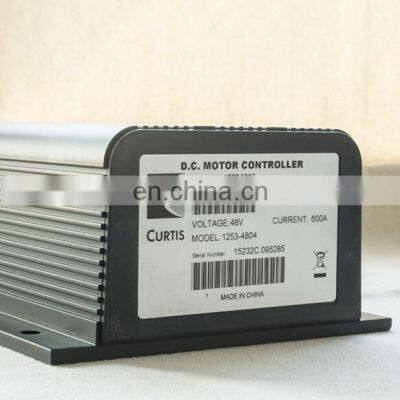

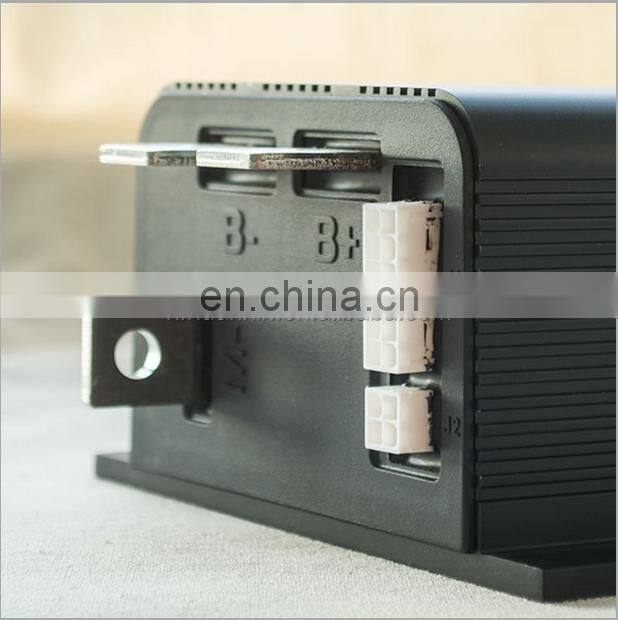

CURTIS Controller 1253-4804 Controller With High Efficiency

The CURTIS 1253 provides a cost-effective solution for control of high power DC series-wound hydraulic pump motors. Its system integration features are designed primarily for Class I and Class II material handling vehicles. Typical applications include the pump systems of material handling trucks (counterbalance trucks, reach trucks), aerial lift platforms (scissor lifts, articulating/telescoping booms), and other industrial vehicles.

The 1253 accepts inputs from up to four Speed Select switches and also from an analog throttle. Its internal microprocessor-based logic controller provides maximum flexibility at minimum cost. Its performance characteristics can be tailored through an array of programmable parameters.

The 1253 controller is fully programmable through a CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station. The programming device provides diagnostic and test capability in addition to configuration flexibility.

CURTIS Model: 1253-4804
Norminal Battery Voltage (Volts): 48V
Amature Current Limit (amps): 600
Programmable Undervoltage Cutback (Volts): 32-42
Overvoltage Cutoff (Volts): 60
PWM operating frequency: 15.6 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage: 28–60V DC
KSI input current (no contactors engaged):
60 mA without programmer
130 mA with programmer

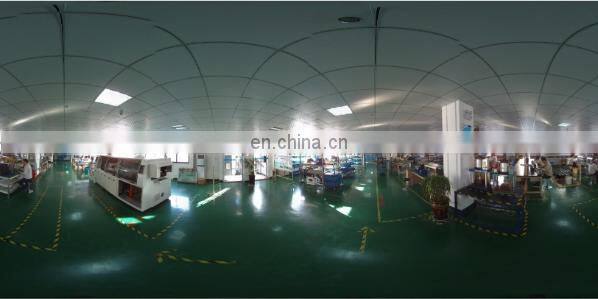

          Hefei Huanxin Technology Develop Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality, Reasonable price, Best service and Professional product support.

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shanghai airport to customers' destination city air port.
3. By Sea: Delivery from the Shanghai sea port

4. Delivery time: 5-8days

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Sample needs 3-5 days.

Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
