CURTIS DC Motor Controller Assemblage 1243 Series With Control Handle
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
CURTIS Controller 1253-4804 Controller With High Efficiency
-
Electric Forklift Tractor Lift Curtis 250A 24V Controller 1207 1207B
-
Curtis Programmable 600a Controller 1244 Forklift Tractor Scooter Parts
-
Electric Conversion Kit 7.5kw 72v Engine Controller 500A 1244
-
Electric Car Motor Kit 7.5kw Controller 1244 500A 48V
-
Electric Car Driver 1236-5401 36v 48v 450a AC Motor Speed Controller
Product Description
Product Description
CURTIS 1243 Generation 2 MultiMode™ controllers are separately excited motor speed controllers designed for use in a variety of small industrial vehicles and in material handling equipment. These programmable controllers are simple to install, efficient, and
cost effective, while offering more features than the original 1243.The 1243 GEN2 MultiMode™ controller provides smooth precise control of motor speed and torque. A full-bridge field control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and full regenerative braking without additional relays or contactors. The controller’s rugged IP53 housing and packaging are built to withstand shock and vibration.State-of-the-art surface mount logic board fabrication makes the 1243GEN2 controller even more reliable than the original 1243.The 1243GEN2 is fully programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. Inaddition to configuration flexibility, the programmer provides diagnostic and test capability.
cost effective, while offering more features than the original 1243.The 1243 GEN2 MultiMode™ controller provides smooth precise control of motor speed and torque. A full-bridge field control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and full regenerative braking without additional relays or contactors. The controller’s rugged IP53 housing and packaging are built to withstand shock and vibration.State-of-the-art surface mount logic board fabrication makes the 1243GEN2 controller even more reliable than the original 1243.The 1243GEN2 is fully programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. Inaddition to configuration flexibility, the programmer provides diagnostic and test capability.

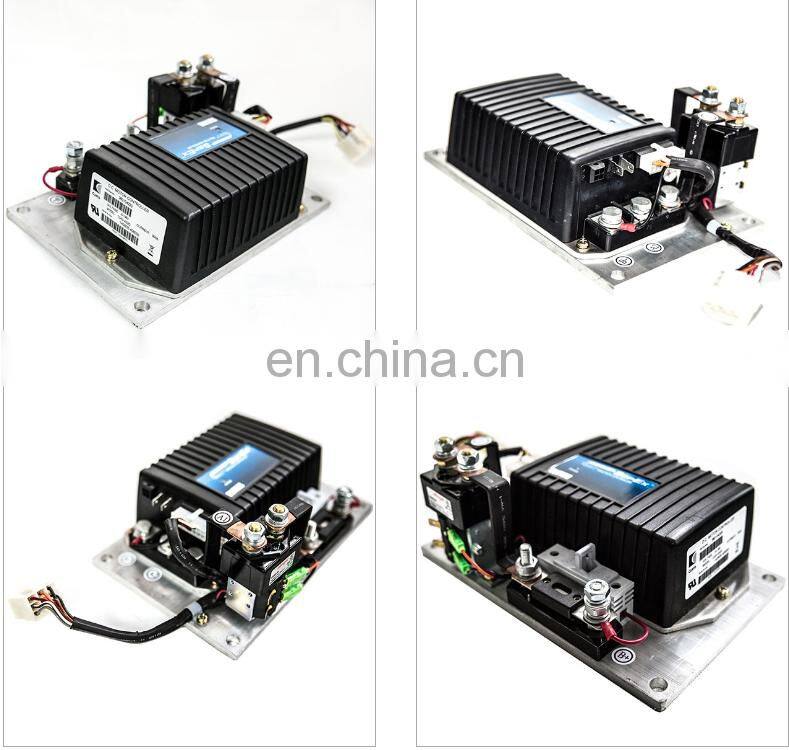

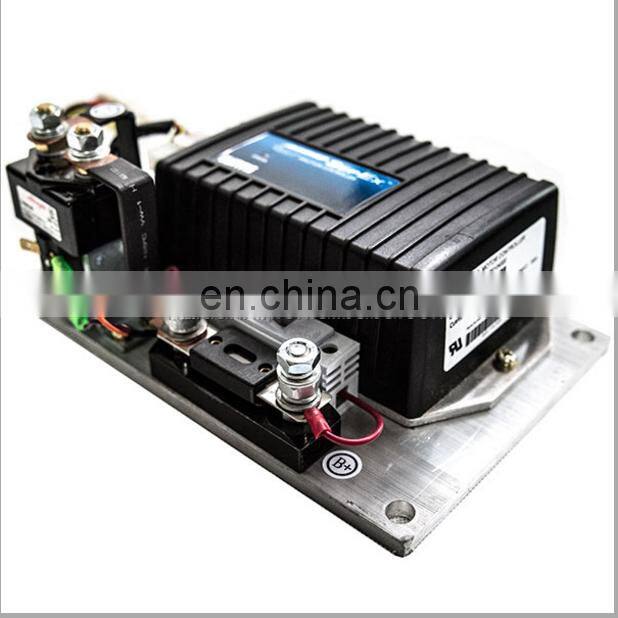

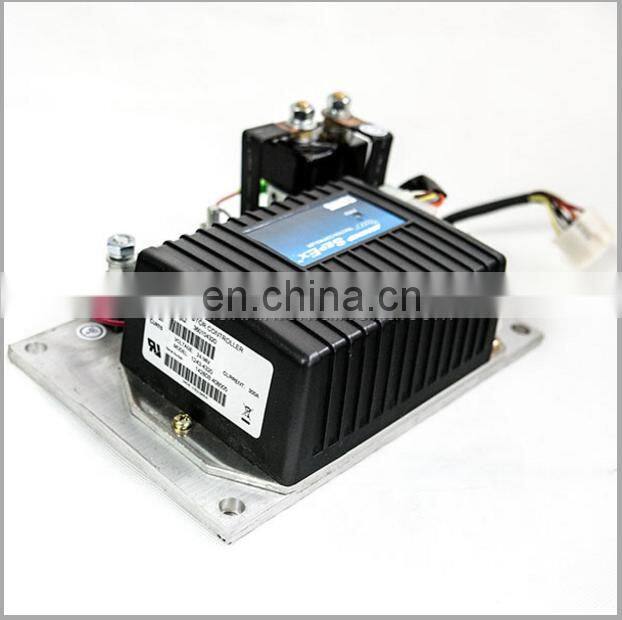

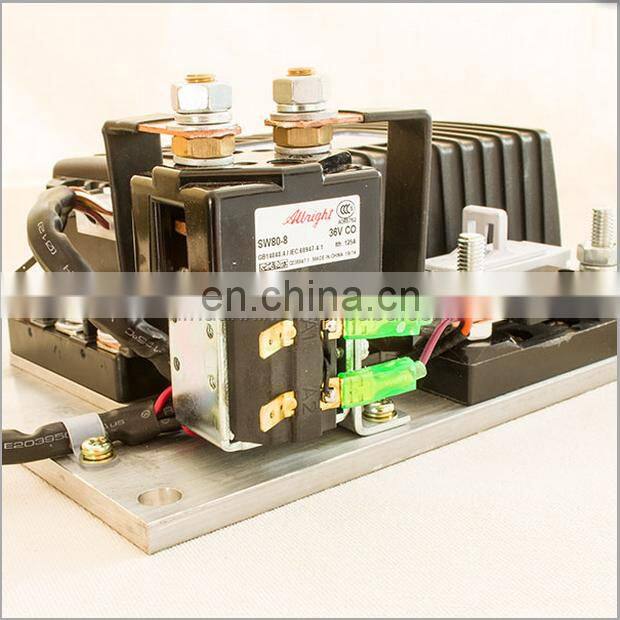

Detailed Images
Product Features | ||
*Brand | Curtis | |
* Net Weight | 5.5kg | |
*Model | 1243-4220,1243-4320 | |
* PWM operating frequency | 15.6kHz | |
*Norminal Battery Voltage | 36V / 48V | |
* Logic input current | < 2 mA | |
*Dimension information | L241 mm x W160 mm x H8 mm | |
* Throttle Type: | 0-5K Ω (default setting), 5K-0 Ω or 0-5V | |

24V / 36V - 200A Controller Assemblage For Different Type Vehicles
* Interlock braking with load sensor to meet required braking distance without unnecessary harsh braking at light loads
* Maintenance monitor responds to preset vehicle operating hours and drive hours as programmed by the OEM
* Two hourmeters - total KSI-on hours and traction hours - and the associated maintenance timers are built into the controller
* BDI calculations performed within controller
* Estimates motor temperature based on field resistance and cuts back maximum speed if the motor is overheated
* Diagnostic checks for field open and field shorted faults
* Supports PWM electromagnetic brake with maximum continuous current of 2 amps
* Supports Type 4 throttle
* Active precharge of controller capacitor bank extends life of main contactor
* Compatibility with CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station for quick and easy testing, diagnostics,and parameter adjustment
* MultiMode™ allows four user-selectable vehicle operating modes
* Continuous armature current control, reducing arcing and brush wear
* Complete diagnostics through the handheld programmer, the built-in Status LED, and the optional 840 Spyglass display
* Two fault outputs provide diagnostics to remotely mounted displays
* Regenerative braking allows shorter stopping distances, increases battery charge, and reduces motor heating
* Automatic braking when throttle is reduced provides a compression braking feel and enhances safety
* Brake/Drive Interlock meets ISO stopping distance requirements
* Ramp restraint feature provides automatic electronic braking that restricts vehicle movement while in neutral
* Meets EEC fault detect requirements
* Linear cutback of motor drive current during overtemperature or undervoltage
* Linear cutback of regenerative braking current during overvoltage
* High pedal disable (HPD) and static return to off (SRO) interlocks prevent vehicle runaway at startup
* Internal and external watchdog circuits ensure proper software operation
* Fully protected inputs and short-circuit protected output drivers.
* Maintenance monitor responds to preset vehicle operating hours and drive hours as programmed by the OEM
* Two hourmeters - total KSI-on hours and traction hours - and the associated maintenance timers are built into the controller
* BDI calculations performed within controller
* Estimates motor temperature based on field resistance and cuts back maximum speed if the motor is overheated
* Diagnostic checks for field open and field shorted faults
* Supports PWM electromagnetic brake with maximum continuous current of 2 amps
* Supports Type 4 throttle
* Active precharge of controller capacitor bank extends life of main contactor
* Compatibility with CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station for quick and easy testing, diagnostics,and parameter adjustment
* MultiMode™ allows four user-selectable vehicle operating modes
* Continuous armature current control, reducing arcing and brush wear
* Complete diagnostics through the handheld programmer, the built-in Status LED, and the optional 840 Spyglass display
* Two fault outputs provide diagnostics to remotely mounted displays
* Regenerative braking allows shorter stopping distances, increases battery charge, and reduces motor heating
* Automatic braking when throttle is reduced provides a compression braking feel and enhances safety
* Brake/Drive Interlock meets ISO stopping distance requirements
* Ramp restraint feature provides automatic electronic braking that restricts vehicle movement while in neutral
* Meets EEC fault detect requirements
* Linear cutback of motor drive current during overtemperature or undervoltage
* Linear cutback of regenerative braking current during overvoltage
* High pedal disable (HPD) and static return to off (SRO) interlocks prevent vehicle runaway at startup
* Internal and external watchdog circuits ensure proper software operation
* Fully protected inputs and short-circuit protected output drivers.
