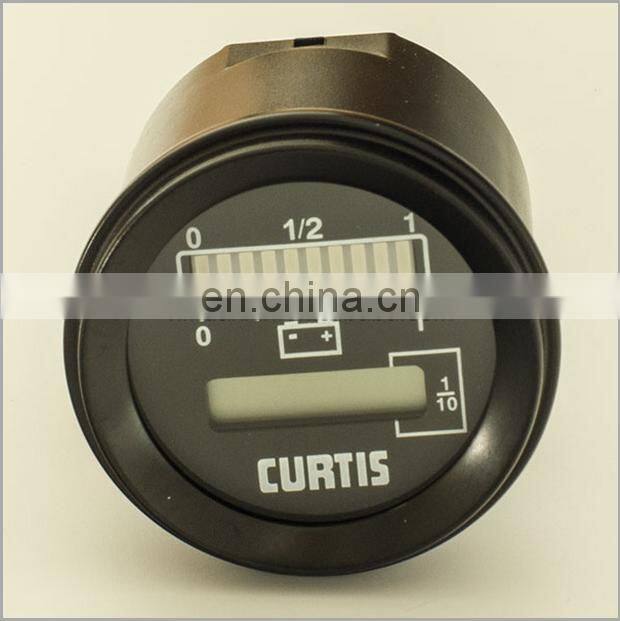

Curtis Original Battery Hour Meter 840 for Electric Golf Cart
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Curtis Round Shape Small Size Battery Meter 840
-
Round Shape Speedometer 827 for Golf Cart
-
Small Size Battery Amount Indicator for Electric Golf Cart Electric Scooter 827
-
Electric Scooter Battery Meter Round Shape 827 Instead of Curtis 808
-
Round Shape Speedometer 827 for Golf Cart
-
B4801 / B7201 Electric Vehicle Display Dashboard
Product Description
Product Description
Overview
CURTIS Model 840 displays various system parameters, such as battery state-ofcharge, operating hours or maintenance status from a
CURTIS motor controller or other serial communication source.
Mating with CURTIS 1232 / 1234 / 1236 / 1238 (including "E" series) AC controllers' SPYGLASS, CURTIS Model 840 is ideal for use in
material handling vehicles such as pallet trucks, walkies, stackers and order pickers as well as other equipment with a need to
display data using a dedicated uni-directional asynchronous serial signal.
For more details, please see the 840 Meter Datasheet (PDF format).
Specifications
* Manufacturer: CURTIS

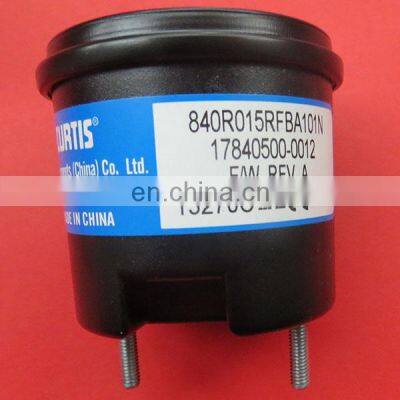

* Model: 840R015RFBA101N
* Operating Voltage (Volts): 12VDC
* Enclosure Protection: IP65 (Face), IP40 (Rear)
* Housing: R (Round)
* Operating Temperature Range: -10°C to +70°C (Standard Model); -40°C to +70°C (Freezer Model)
* Shock & Vibration: Meets SAE J 1378 (Jul 98)

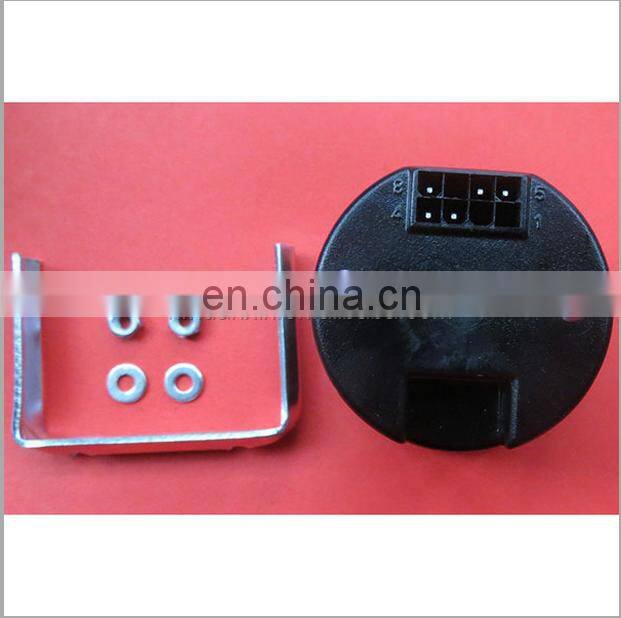

* Notice: installation kit & Molex 8-Pin connector (with plated terminals) are included.
CURTIS Model 840 displays various system parameters, such as battery state-ofcharge, operating hours or maintenance status from a
CURTIS motor controller or other serial communication source.
Mating with CURTIS 1232 / 1234 / 1236 / 1238 (including "E" series) AC controllers' SPYGLASS, CURTIS Model 840 is ideal for use in
material handling vehicles such as pallet trucks, walkies, stackers and order pickers as well as other equipment with a need to
display data using a dedicated uni-directional asynchronous serial signal.
For more details, please see the 840 Meter Datasheet (PDF format).
Specifications
* Manufacturer: CURTIS
* Model: 840R015RFBA101N
* Operating Voltage (Volts): 12VDC
* Enclosure Protection: IP65 (Face), IP40 (Rear)
* Housing: R (Round)
* Operating Temperature Range: -10°C to +70°C (Standard Model); -40°C to +70°C (Freezer Model)
* Shock & Vibration: Meets SAE J 1378 (Jul 98)
* Notice: installation kit & Molex 8-Pin connector (with plated terminals) are included.



Model 840 features include:

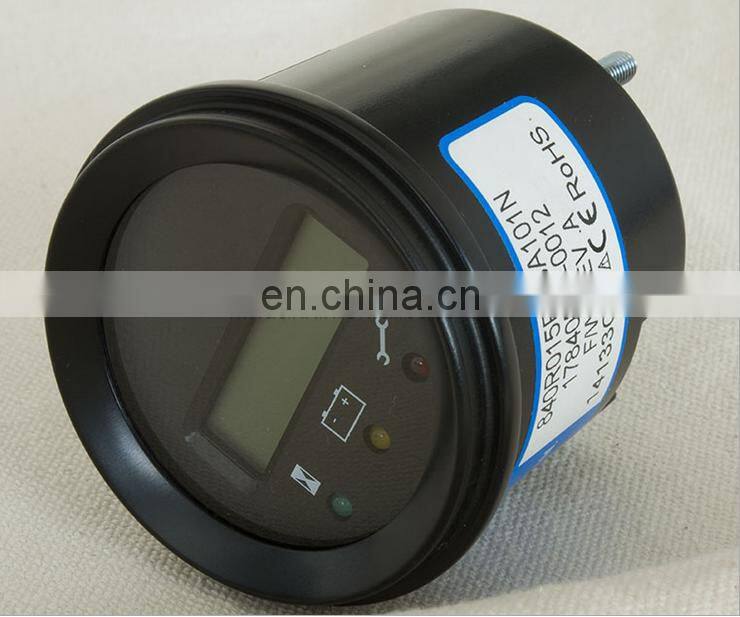

* Attractive, easy-to-read, 8 character dot matrix Liquid Crystal Display enhances the look of any vehicle.
* Two display versions available: * Three LEDs: Green to indicate that hour meter is being displayed; Amber to indicate that
battery state-of-charge is being displayed; and Red to indicate that a fault has occurred.
* Six LEDs: Five Green to indicate battery state-of-charge; and one Red to indicate that a
fault has occurred.
* Standard models display hours of use, battery state-of-charge and messages from a CURTIS motor controller.
* Interfaces directly to CURTIS motor controllers and displays various system parameters.

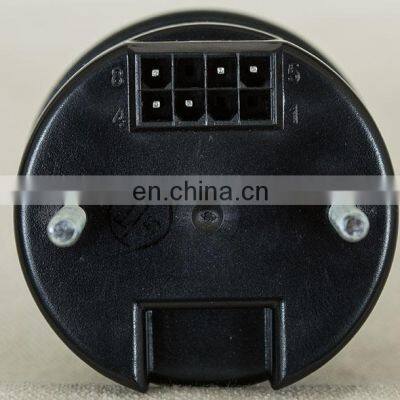

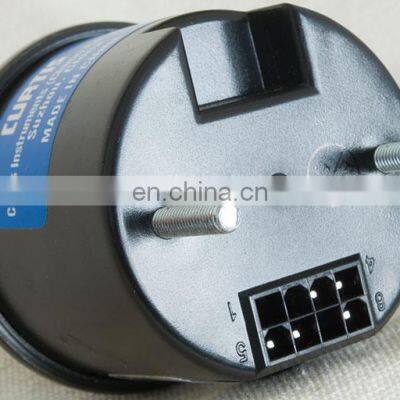

* Molded-in rear Molex style connector provides a low-cost, rugged and reliable installation.
* Front sealed (IP65) for use in harsh environments.
* Attractive, easy-to-read, 8 character dot matrix Liquid Crystal Display enhances the look of any vehicle.
* Two display versions available: * Three LEDs: Green to indicate that hour meter is being displayed; Amber to indicate that
battery state-of-charge is being displayed; and Red to indicate that a fault has occurred.
* Six LEDs: Five Green to indicate battery state-of-charge; and one Red to indicate that a
fault has occurred.
* Standard models display hours of use, battery state-of-charge and messages from a CURTIS motor controller.
* Interfaces directly to CURTIS motor controllers and displays various system parameters.
* Molded-in rear Molex style connector provides a low-cost, rugged and reliable installation.
* Front sealed (IP65) for use in harsh environments.
