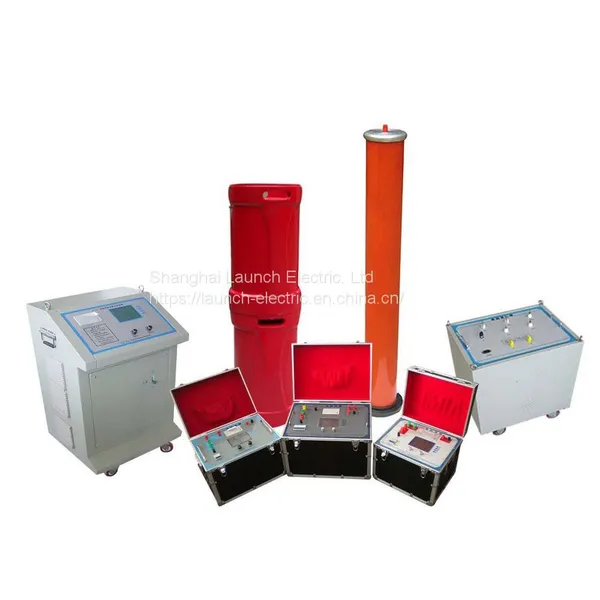

Variable Frequency AC Resonance Test System

Variable Frequency AC Resonance Test System thumbnail-1
Variable Frequency AC Resonance Test System photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2011
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Shanghai Launch Electric. Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Contact US

Email:coco@launch-electric.com

Product Overview

SXBP Series AC Resonance Test System is specially designed for AC withstand test for electric equipments of substation at 10kV~500kV or below.

Applications:

♦ Transformer

♦ Cables

♦ GIS System

♦ Insulator

♦ CT/PT

♦ Other electric devices

Features

♦ Small size, portable for operating.

♦ Screen to show the test data, status and display operation step by real-time.

♦ Small temperature rising at rated load. Dry-type epoxy cast, high mechanical strength and good insulation ability.

♦ 220V or 380V single phase power source is suitable for on-site sourcing.

♦ Different type reactors for optional realize the multipurpose.

♦ With over current, over voltage, IPM and discharge protection function.

♦ Test result can be printed.

Specifications

♦ Rated output voltage: 0~500kV or below

♦ Output frequency: 20 -300Hz.

♦ Resonant voltage waveform: sine wave, waveform Distortion rate ≤ 1%.

♦ Full load working time: continuous working time 60mins.

♦ Quality factor: max. load ≥ 20.

♦ Frequency adjustment: fineness 0.1Hz, instability ≤ 0.01%.

♦ Power supply: 220V or 380V single-phase.

♦ Common Configuration:


Model

Test Object

Main Configurations:

AC power source

Exciting Transformer

Reactor

Capacitive Voltage Divider:

SXBP-27/54/108-108

Test Frequency: 20~300Hz

31500kVA/35KV Power Transformer

10KW 1 unit

10KW 1 unit

27KV/1A

4 Units

Frequency: 20-300Hz

120KV

35KV circuit breaker, busbar, insulator

10KV(300mm2) cable 2000m

35KV(300mm2) cable 500m

SXBP-54/108/216-216

Test Frequency: 20~300Hz

110KV Circuit breaker and busbar

15KW 1 unit

15KW 1 unit

54KV/1A

4 Units

Frequency: 20-300Hz

110KV GIS ≤ 10 intervals

35KV (300mm2) cable 1500m

10KV (300mm2) cable 3000m

110KV Full Insulated Transformer

SXBP-65/130/260-520

Test Frequency: 20~300Hz

110KV Circuit Breaker and busbar

30KW 1 Unit

30KW 1 Unit

65KV/2A 4 Units

Frequency: 20-300Hz

300KV

110KV GIS ≤ 10 intervals

110KV (300mm2) cable 800m

35KV (300mm2) cable 3000m

10KV(300mm2) cable 200m

110KV Full Insulated Transformer

SXBP-45/90/135/180/270-270

Test Frequency: 20~300Hz

110KV Insulator, switchgear, GIS and etc.

20KW 1 unit

20KW 1 unit

45KV/1A Six Units

Frequency: 20-300Hz

200KV

50MW/110KV Full Insulated Transformer

110KV (300mm2) cable 200m

35KV Power Transformer, switchgear, CT/PT, cable, and etc.

20MW hydrogenerator

10KV power transformer, switchgear, CT/PT, cables and etc.

SXBP18/36/54

Test Frequency: 20~300Hz

10KV (300mm2) cable 2000m

5KW 1 Unit

5KW 1 unit

27KV/1A 2 units or

18KV/1A 3 units

Frequency: 20-300Hz

60KV



Product Tags: Variable Frequency AC Resonance Test System , AC Resonance Test System , Resonance Test System
