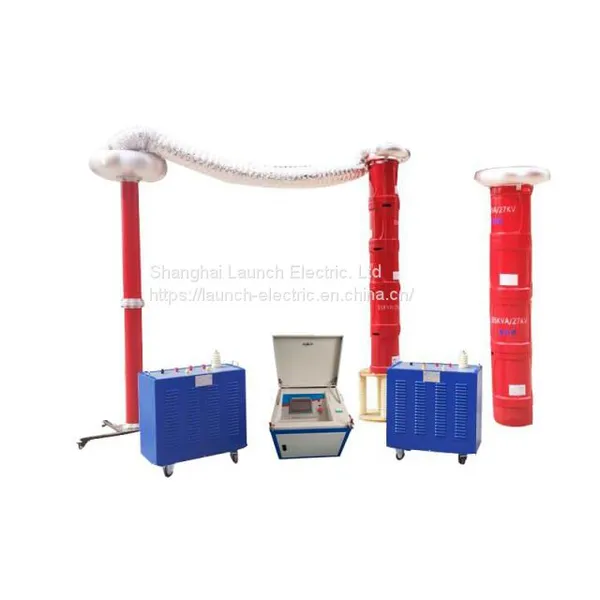

Product OverviewSXBP Series AC Resonance Test System is specially designed for AC withstand test for electric equipments of substation at 10kV~500kV or below.
Applications:
√ Transformer
√ Cables
√ GIS System
√ Insulator
√ CT/PT
√ Small size, portable for operating.
√ Screen to show the test data, status and display operation step by real-time.
√ Small temperature rising at rated load. Dry-type epoxy cast, high mechanical strength and good insulation ability.
√ 220V or 380V single phase power source is suitable for on-site sourcing.
√ Different type reactors for optional realize the multipurpose.
√ With over current, over voltage, IPM and discharge protection function.
√ Test result can be printed.
√ Rated output voltage: 0~500kV or below
√ Output frequency: 20 -300Hz.
√ Resonant voltage waveform: sine wave, waveform Distortion rate ≤ 1%.
√ Full load working time: continuous working time 60mins.
√ Quality factor: max. load ≥ 20.
√ Frequency adjustment: fineness 0.1Hz, instability ≤ 0.01%.
√ Power supply: 220V or 380V single-phase.
