Introduction

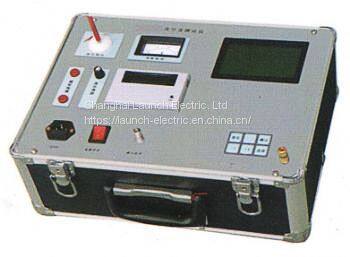

This instrument is basis on magnetic control discharge principle. Singlechip computer acts as the main control unit. The test is completely automatically controlled. The instrument is featured by high measuring accuracy, easy operation, portability, strong anti-interference, especially suitable for power supply companies to do on-site tests. It is a must for vacant circuit breaker production, setting and maintenance.
Technical Parameters
Vacuum degree measuring range：9.999 X 10-1~1 X 10-5
Ionic current measuring range ：9.999 X 10-1~1 X 10-7
Measuring error：＜10%
Ambient temperature：-20℃~50℃
Power supply：AC220V, 50HZ±10%
Dimension：420 X 290 X 210mm3
Measuring resolution：10-5Pa
Air humidity：≤80%Rh
Output：impulse 30kv,15kHz
