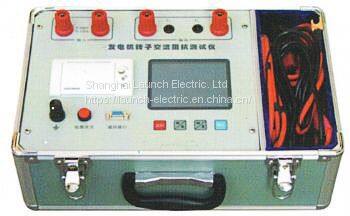

Help CenterSFY120 Generator Rotor AC Impedance Tester
Related Products
-
SFK278 High Voltage Switches Mechanical Properties Testing InstrumentNegotiableMOQ: 1 Piece -
SFK254 Loop Resistance TesterNegotiableMOQ: 1 Piece
-
SFK251 Series High Current GeneratorNegotiableMOQ: 1 Piece
-
SFK219 Intelligent Micro Water DetectorNegotiableMOQ: 1 Piece
-
SFK010SF6 Gas Leak Detecting InstrumentNegotiableMOQ: 1 Piece
Contact US
Email:coco@launch-electric.com
Introduction
This tester is improved on basis of GS-I tester, with additional display and print function for the AC impedance characteristic curve. It is also able to connect with PC to realize data transformation and test report edition. The tester takes use of the most advanced fast micro computer technique thus to get more functions and better performance.
Auto and hand operating test and measurement of various synchronous generators rotor AC impedance and its characteristic curve.
Built-in large capacity memorizer which is able to memorize 1000 groups of data for transformation to the PC. Auto creation and edition of test report. Full auto acquisition, measurement, display, saving and print of all measured parameters such as voltage, current, impedance and power.
Perfect over voltage and over current protection
Could be as well used in no-load, short circuit tests for single phase transformers and volt-ampere characteristics tests for CT and arc extinction coils.
Large screen LCD Graphic display
Technical Parameters
AC impedance：0～99.999Ω Grade 0.2
AC voltage：0～600V Grade 0.2
AC current：0～120A Grade 0.2
active power：0～72KW Grade 0.5
frequency：45～75Hz Grade 0.2
Power supply：AC220±10% 50Hz
