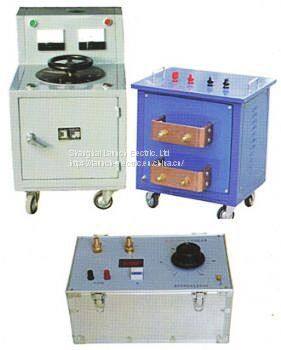

SFK251 Series High Current Generator
- 1 Piece / Pieces per Month
Product Description
Contact US
Email:info@launch-electric.com
Introduction
This series of generator is suitable for various switches, current transformers, and other apparatus with rated frequency of 50Hz to do current loading and temperature rise tests.
The generator consists of LV high current dry type transformer and console. It is also equipped with current transformer to measure and read value of test current.
The generator takes use of new design and material thus to get a lower short circuit impedance, dimension and weight than traditional products of the same kind. The generator could be in split or integrated type determined by dimension and weight. It is featured by output current stepless regulation, stable current adjustment, large loading range, reliability and easy operation.
Technical Parameters
Specification | Rated capacity (KVA) | Rated input | Rated output | Structure | |||
regulator | Current booster | Current (A) | Voltage (V) | Current(A) | Voltage(V) | ||
SF9016-500 | 2.5 | 2.5 | 12.5 | 200 | 500 | 0~5 | integrated |
SF9016-1000 | 5 | 5 | 25 | 200 | 1000 | 0~5 | integrated |
SF9016-1500 | 7.5 | 7.5 | 37.5 | 200 | 1500 | 0~5 | integrated |
SF9016-2000 | 10 | 10 | 25 | 400 | 2000 | 0~5 | integrated |
SF9016-2500 | 12.5 | 12.5 | 31.25 | 400 | 2500 | 0~5 | split |
SF9016-3000 | 15 | 15 | 37.5 | 400 | 3000 | 0~6 | split |
SF9016-4000 | 25 | 25 | 50 | 400 | 4000 | 0~6 | split |
SF9016-5000 | 30 | 30 | 75 | 400 | 5000 | 0~6 | split |
SF9016-10000 | 60 | 60 | 150 | 400 | 10000 | 0~6 | split |
