SFJ1107 Microcomputer Relay Test System

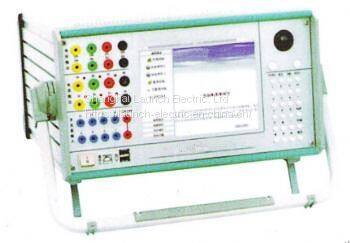

SFJ1107 Microcomputer Relay Test System photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2011
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Contact US

Email:coco@launch-electric.com



Introduction

Built-in highly configured industrial computer, WIN XP operating system, external laptop for wireless connection

USB interface for U plate, printer and other equipment

High-speed network, can be connected to remote upgrade and remote auxiliary test

Reliable overheating, over current, overvoltage and short circuit protection

The newest electronic components IGBT,strong anti-interference ability,high output accuracy

Input junction point nonpolarity,automatic recognition of idle contact and 5~250V charged contact

With precision adjustment menu, the user can adjust error setting

Simultaneous output current in six phases, allow test in  three at the same time for  differential protection device

Test report in Word format, allowing edit, arrange and print in the instrument

Test modules customer-made on request  , free software upgrades for life

Technical Parameters

  • Four-phase AC voltage output: 0~125V   100VA/phase

  • Time measurement:0.0001~9999.999s

  • Six-phase AC current output:0~20A(0~30A)450VA/phase

  • Harmonic superimposed:DC up to 20th harmonic

  • 5 pairs of output:DC250V   2A

  • DC voltage output:0~125V   100VA

  • Output frequency range:0~1000 Hz

  • Power supply:AC220v   45Hz~65Hz

  • DC current output:0~20A  100VA/ phase

  • Output accuracy:﹤0.2%

  • Auxiliary DC voltage output:0~250V

  • 8 pairs of input:idle contactor DC 0~250V
