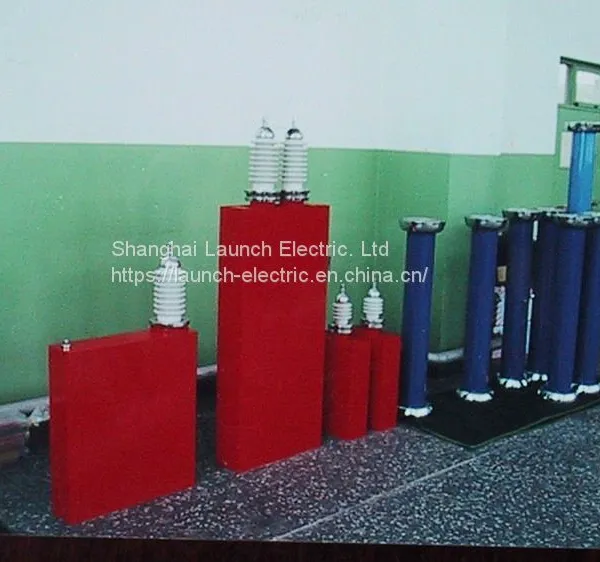

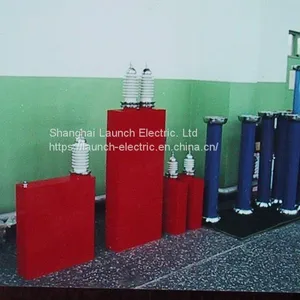

Capacitor

The high voltage impulse capacitor is characterized by the ability to store a low-power power source for the charging energy of the capacitor over a longer period of time and quickly release the stored energy in a very short time interval at the desired instant of the impulse current/voltage and a strong impulse power.

Mainly used for high voltage experimental technology, high-energy physics, laser technology, oscillation circuit, rechargeable demagnetizer, electromagnetic forming and address prospecting and other fields.

Such as impulse current generator, impulse voltage generator, long duration impulse current generator, repetition impulse generator, oscillation circuit test system, pulse power, etc.

Rated voltage: 5kV ~1000kV;

Capacitance deviation:≤±5% at Un;

Dielectric loss: ≤0.2%;
