Impulse Voltage Generator

Impulse Voltage Generator thumbnail-1

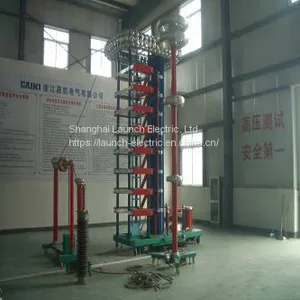

Impulse Voltage Generator thumbnail-2
Impulse Voltage Generator photo-1

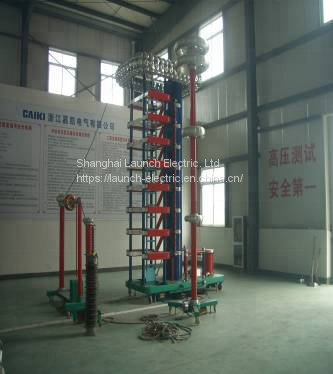

Impulse Voltage Generator photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2011
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Shanghai Launch Electric. Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Contact US

Email:coco@launch-electric.com


ADVANTAGE
This test system is special for high voltage 110kV lightning impulse test on generators, transformers, bushings, instrument transformers, etc. This test system adopts main circuit design from SGSC series of HAEFELY Switzerland, compact, super-small. It can carry out standard lightning full wave impulse test, chopping wave impulse test, standard operation wave impulse test. This equipment is complying with IEC standard.
PRODUCT SPECIFICATIONS
NO.
Item
Data
1
Nominal capacity
40kJ, 5kJ per grade
2
Capacitance per grade
1.0 uF, 100kV
3
Voltage per grade
100kV (DC)
4
Grades
8
5
Output wave
(1) ±1.2/50μs standard lightning impulse voltage full wave, efficiency more than 90%
(2) ±250/2500μs standard operation impulse voltage wave, efficiency more than 80% (OPTIONAL)
(3) Lightning chopping wave, duration 2~6 μs, dispersity less than 100ns.
6
Synchronization range
more than 20%
7
Continuous working duration
1) When less than 80% rated voltage, continuous work
2) When more than 80% rated voltage, discontinuous work
8
Peak value adjustment error
less than 1%
9
Synchronization error
less than 1%
10
Whole dimension
1500 x 800 x 3400mm
11
Weight
about 800kg
