Product Overview

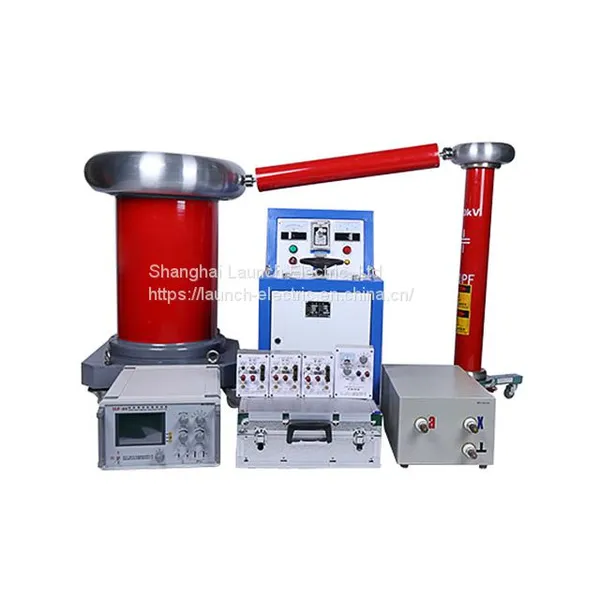

PD free test system is the new generation which conforms to IEC (270) standard strictly, mainly used to inspect and test the discharging test on the HV equipments including electric motor, CT/PT, cable, capacitor, transformer, MOA, switchgear and ect.

Features

• Power frequency partial discharge free tester

• Control Unit

• Coupling Capacitor

• Isolated Filter

• Protective Resistor

• Partial Discharge Tester SXJF-2009/2010

Specifications

• ♦ Rated capacity：0-1000KVA

• ♦ Rated input voltage: 0.22/0.38/3/6/10KV

• ♦ Rated input current: 0-1.25A

• ♦ Rated output voltage: 0-800kV

• ♦ Rated output current: 0-375A

• ♦ Rated voltage of measuring terminal：100V

• ♦ Connection: II0

• ♦ Cooling: ONAN

• ♦ Working Duty：100％UN,IN , 60min

70%UN,IN continuous working.

• ♦ Single Phase

• ♦ Frequency: 50Hz
