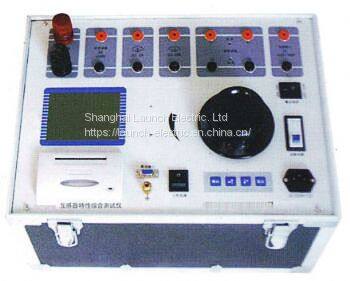

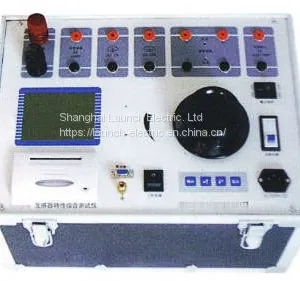

Help CenterSFH141 Instrument Transformer Characteristics Tester
Related Products
-
SFH2822 Full-automatic Instrument Transformer Characteristics TesterNegotiableMOQ: 1 Piece -
SFH264 Series Triple Frequency GeneratorNegotiableMOQ: 1 Piece
-
YG-4a/4b/4c YG106 Winding Turn CounterNegotiableMOQ: 1 Piece
-
SFH166 Full-automatic Capacitance and Inductance TesterNegotiableMOQ: 1 Piece
-
Special Test EquipmentNegotiableMOQ: 1 Piece
Contact US
Email:coco@launch-electric.com
Introduction
This instrument is especially designed to test volt-ampere characteristics, transformation ratio and polarity differences for relay protection testing current transformers. It is also used to judge the polarity of transformers, as a multi-functional instrument with excellent cost performance. The instrument takes use of transformer with special winding method, as well as high efficiency, low consume materials. Data acquisition, analysis and save is accomplished by microprocessor. The instrument is equipped with printer inside to print the test data and curves. When testing CT transformation ratio, the ratio would be automatically calculated. All the test work would be done by only one person. The instrument is featured by light, portability and easy operation.
Technical Parameters
Input voltage: AC 220V/380V, 50Hz, automatic recognition of the input voltage
Ambient temperature: 0～40℃
Output voltage: when input AC 220V, output voltage is 0-500V-1000V
when input AC 380V, output voltage is 0-1000V-2000V
Current: during transformation ratio test, the max instant current is 600A
when input AC 220V, output current is 0～400A
when input AC 380V, output current is 0～600ADigital voltmeter measuring range: 0～9999V resolution: 0.1V
Used to display current range: 0～9.9A resolution：0.1mADigital ammeter measuring range: 0～3000A resolution: 0.01A
Error: I≤1％，U≤1％
When testing CT transformation ratio, the ratio would be automatically calculated. Test result could be printed.
When testing volt-ampere characteristics, the instrument allows save and print 20 groups of current-voltage information and the characteristic curves.
