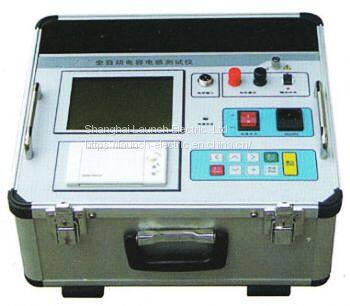

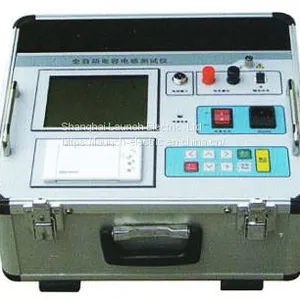

SFH166 Full-automatic Capacitance and Inductance Tester

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Other

Year Established:

2011

Annual Export Value:

Above US$100 Million

Shanghai Launch Electric. Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Contact US

Email:coco@launch-electric.com

Introduction

Full automatic capacitance and inductance tester is specially designed for shunt reactor groups, single reactor in SCV equipment, under the instruction of reactive power compensation experts.
Measure capacity of shunt capacitor, assembling single capacitor or group capacitors without removing the winding
Measure inductance of reactor and wave trapper without removing the winding
Measure run-in capacitance of transformers and generators without removing the winding
Measure shunt (discharge) resistance
Could solve the low fault inspection rate caused by capacitance meter output voltage
Synchronous display voltage and current waveform and phase position, calculate power loss of the tested capacitor

Technical Parameters

Capacitance measuring range：0.2µF ～ 2000µF
Capacity range：5～20000kvar
Measuring accuracy：1.5%
Resolution：±1.0%rdg
Inductance measuring range：1mH～9.99H
Measuring accuracy：1.5% ±2bit
Output measuring voltage：26V/500VA 50 Hz
Display: large screen LCD
TPµFp-40 panel thermal printer
Display: large screen LCD Chinese TPµFp-40 panel heat sensitive printer
Use condition:
Ambient temperature: 0℃～40℃
Relative humidity: ≤90%
Power supply：AC220v±10%，50Hz
Live line measurement of current and capacity of coupling capacitor
