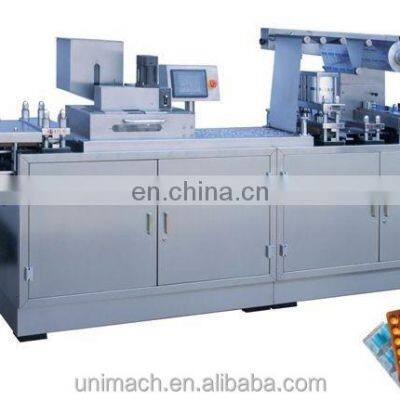

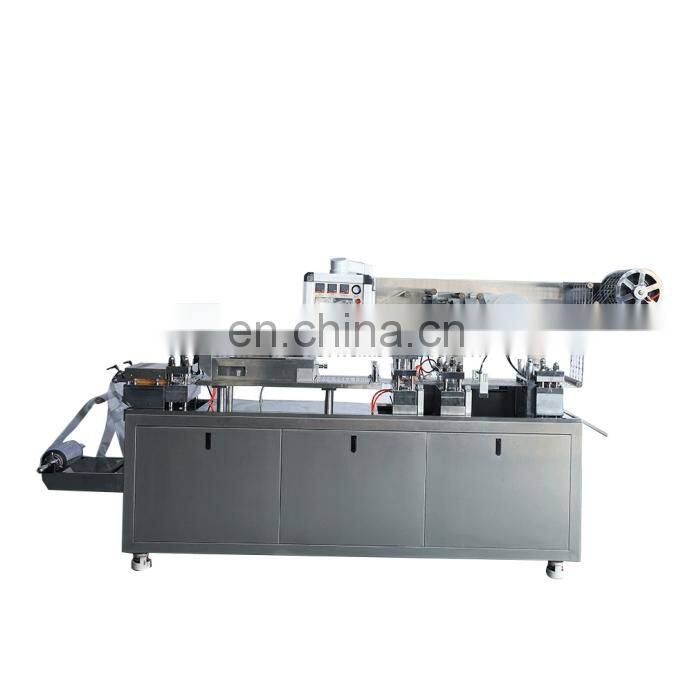

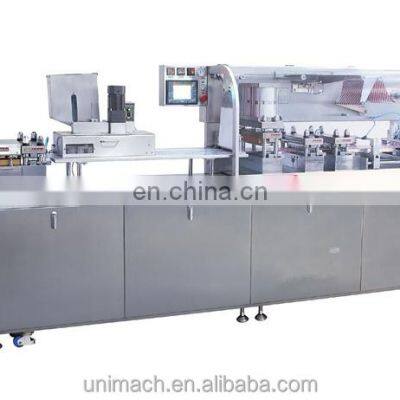

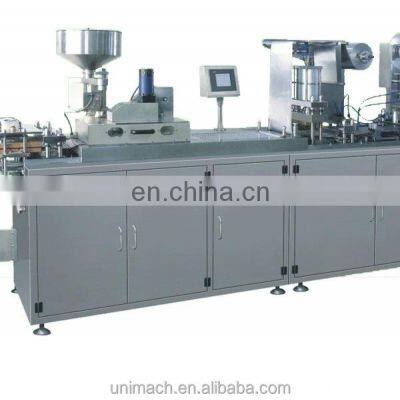

Auto Alu-PVC/Alu-Alu liquid Blister Packing Machine is a pharmaceutical machines with a favorable price so far
This product is a newly packing machine designed for medicine in our company, its function has reached leading level at home, it is suitable for capsule, tablet, honey pill, candy, as well as irregular shape AL-AL, AL-plastic, paper-plastic composite for sealing packaging in pharmacy, food, electronics, medical equipment etc industry. This machine is adopted with micro-computer program controller, touch panel operation, frequency governor, ease of operation, its is an ideal packaging equipment at present
l Equipped with sensor self-checking mechanism, it can eliminate unqualified particles and waste offset. It can make the products qualified with the percentage of 100%
l The distances between forming, heating sealing, impressing, punching etc. parts can be adjusted freely. It is suitable for all assortments of dimensions with high precision, strong adaptability.
l Flat structure, registration heating, frontal pressure forming, up and down moiré, air cylinder heating sealing, mechanical draw, adjustable stroke, ease of operation.
l Main transmission adopts imported swing-ling needle-wheel retard box, excellent performance, lower voice, long life, stable operation.
l Cursor tracking registration, sealing with tidiness and good-looking appearance.
Main Technical Specifications
|
Cutting Frequency (Times/Min) |
AL-AL:6-25, Al-Plastic:6-50,paper-plastic: 6-50
|
|
Capacity (10 thous pcs/h) |
Al/Al:≤11, Al/Plastic: ≤23 |
|
Max forming area and depth(mm) |
AL-AL 240x150x15,AL-plastic 240x150x26 |
|
Scope of rang (mm) |
40-160(designed according to requirement) |
|
Standard Plate (mm) |
80*57 (can be designed as users’ standard) |
|
Air Pressure (Mpa) |
0.4-0.6 |
|
Total Power |
380V/220V 50HZ 6.2KW (or according to requirement) |
|
Power (Kw) |
1.5 |
|
PVC hard pieces (mm) |
0.15-0.5*250 |
|
PTP Aluminum Foil (mm) |
0.02-0.035*250 |
|
Dialysis Paper (mm) |
50-100g*250 |
|
Mould Cooling |
Tap water or circulating water |
|
Overall Dimensions (mm) |
3000*730*1600 (L*W*H) |
|
Weight (Kg) |
1600 |
