Full Automatic Liquid Aluminum Plastic Blister Packaging Machine

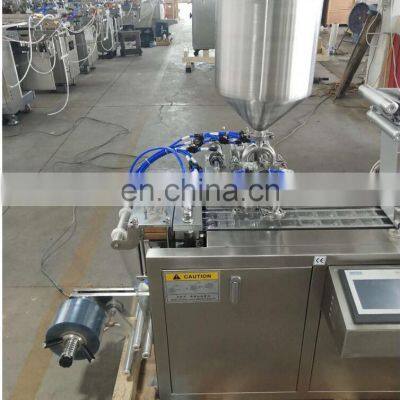

Product picture
Features:
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor tractioand image- character register to optimize packing grade.
The machine is suitable for industries of foodstuff, medicine, medicalinstruments, hardware,electronics and etc for packing .
Technical Specification
|
Model |
DPP-80 |
|
Punch frequency |
10-33times/min |
|
Production capacity |
2400plates/hour |
|
Max. Forming area & Depth |
105*70(standard depth less than or equal to15mm), Max. Depth 25mm( As adjusted |
|
Standard Stroke range |
30-80mm(can be designed as per user’s required) |
|
Standard plate size |
80*70mm (can be designed as per user’s required) |
|
Air pressure |
0.4-0.6Mpa |
|
Compressed air required |
Air compressor less than or equal to 0.3m3/min
|
|
Total power supply |
380V/220V 50Hz 2.8Kw |
|
Main motor |
0.75Kw |
|
PVC hard Film |
0.15-0.5*110(mm) 0.15-0.5*110 (mm)
|
|
PTP Aluminum film |
0.02-0.035*110(mm) 0.02-0.035*110 (mm) |
|
Dialysis Paper |
50-100g*110(mm) 50-100g*110(mm)
|
|
Mould cooling |
Tap water or Recycling water |
|
Overall Dimension |
1840x590x1100(mm)(L*W*H) 1840x590x1100 (mm)(L*W*H) |
|
Weight |
Net 450kg Gross weight: 520kg |
|
Noise index |
<75dBA |
-

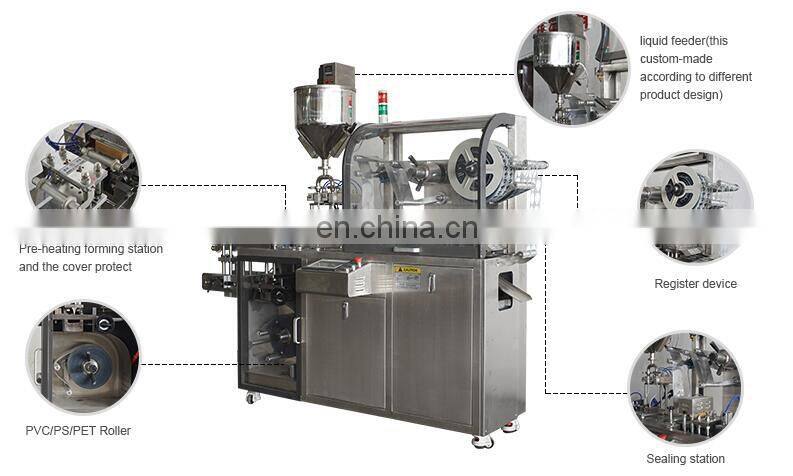

Work process
1.Forming ( up and down heating)
2. Heating Sealing ( up heating)
3.Embossing
4.Impression
5.Cutter
6. Finished product output
-

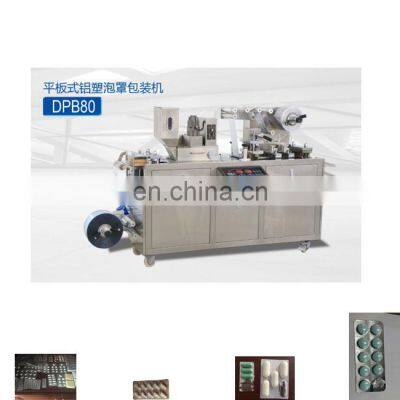

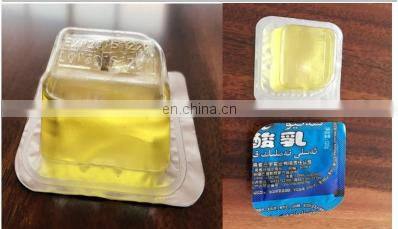

Samples:
1.12 months Warranty of Full Automatic Liquid Aluminum Plastic Blister Packaging Machine.
2. Detail instruction and manual will be delivered with the machine.
3.Supply on line video and instruction
4.Send technicians to test the machine in customers' country if necessary.
5. Cusomters can send their technicians to learn in our factory.
