Freeze Drying Machine Sublimation Condensation Freeze Dryer Food Vacuum Freeze Drying Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying.

If use vacuum to take air and humidity out, the dry speed will be faster.

Note: if use condensate, the solvent in raw material can be recovered. If use SK series water ring vacuum pump sets, condensate can not be used and the investment could be saved.

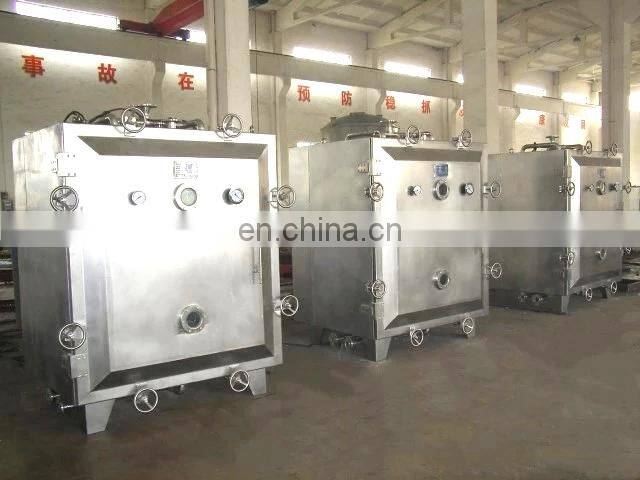

Model：

YZG

FZG

Technical Parameters

Features

Under the condition of vacuum, the boiling point of raw material will decrease and make the pushing force become greater.
Therefore for a certain amount of heat radiation, the conducting area of evaporator can be saved; The heat source for operation of
evaporation may be low pressure steam or surplus heat steam;

The heat loss of evaporator is less; Before drying, the treatment of
disinfection may be carried out. During the period of drying, there is no impurity material mixing. It is in conformity with the
requirement ; It belongs to static drier. So the shape of raw material to be dried can not be destroyed.

Specification Name	YZG-600	YZG-1000	YZG-1400	FZG-10	FZG-15	FZG-20
Inside size of chamber (mm)	φ600*976	φ1000*1572	φ1400*2054	15001060 1220	15001220 1400	15001220 1600
Outer size of chamber (mm)	1135x810 x1020	1693x1190 x150	2386x1657 x1920	1720x1513 x1924	2060x1513 x1924	2060x1513 x2124

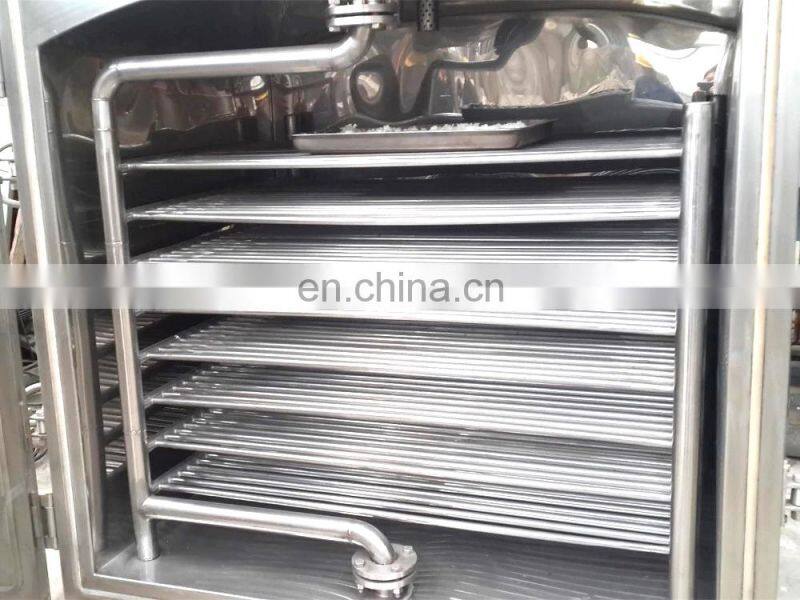

Layers of baking shelf	4	6	8	5	8	12
Layer of baking shelf (mm)	81	102	102	122	122	122
Size of baking disk (mm)	310x600 x45	460x640 x45	460x640 x45	460x640 x45	460x640 x45	460x640 x45
Number of baking disk	4	12	32	20	32	48
Permitted pressure inside the pipe of baking shelf (Mpa)	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
Temperature inside chamber (°C)	≤150	≤150	≤150	≤150	≤150	≤150
Vacuum in idle inside chamber (Mpa)	-0.09~0.096
If not use condensate, type and power of vacuum pump (kw)	SK-1.5 4KW	SK-3 5.5KW	SK-6 11KW	SK-6 11KW	SK-6 11KW	SK-6 11KW
Weight of drying chamber (kg)	250	800	1000	1400	2100	2500

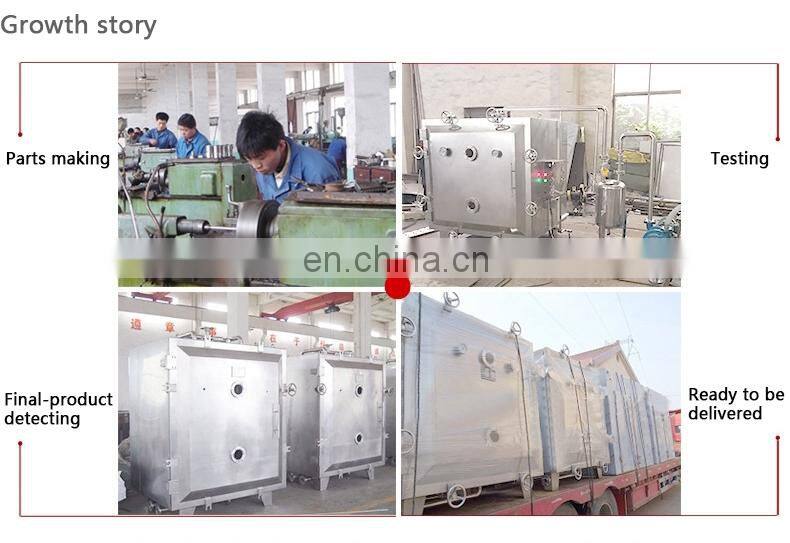

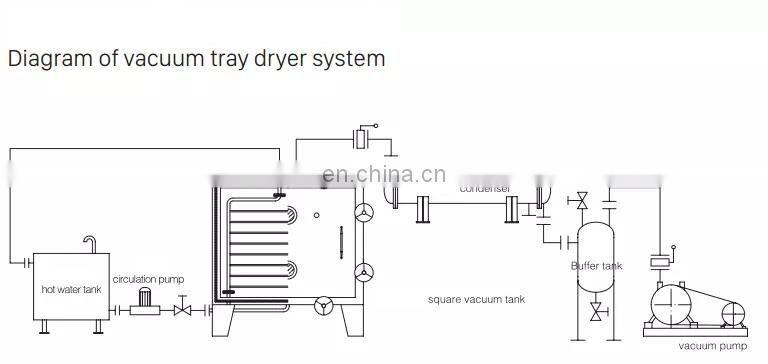

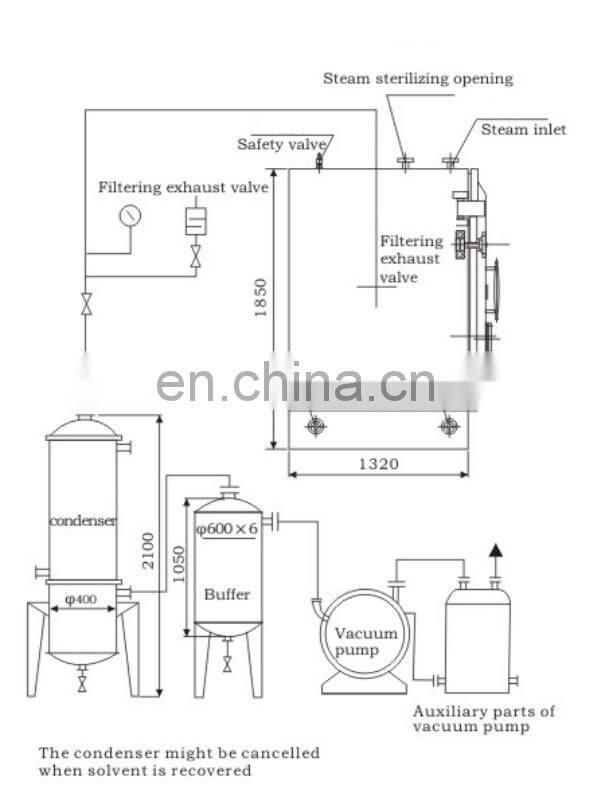

Production Process

Finished Product

It is suitable for drying heat sensitive raw materials that can decompose and polymerize and metamorphose at high temperature. It is wide used in pharmaceutical, chemical, foodstuff and electronic industries.

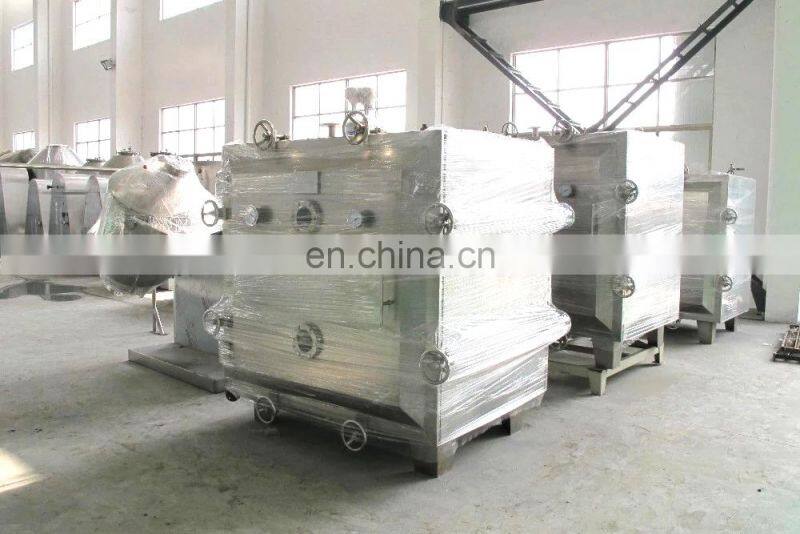

Packing & Delivery

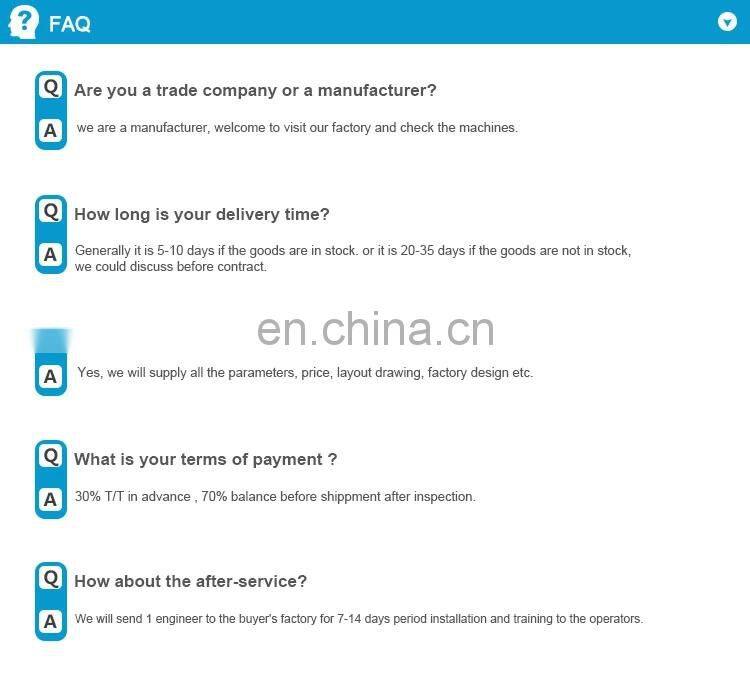

Our Service & FAQ

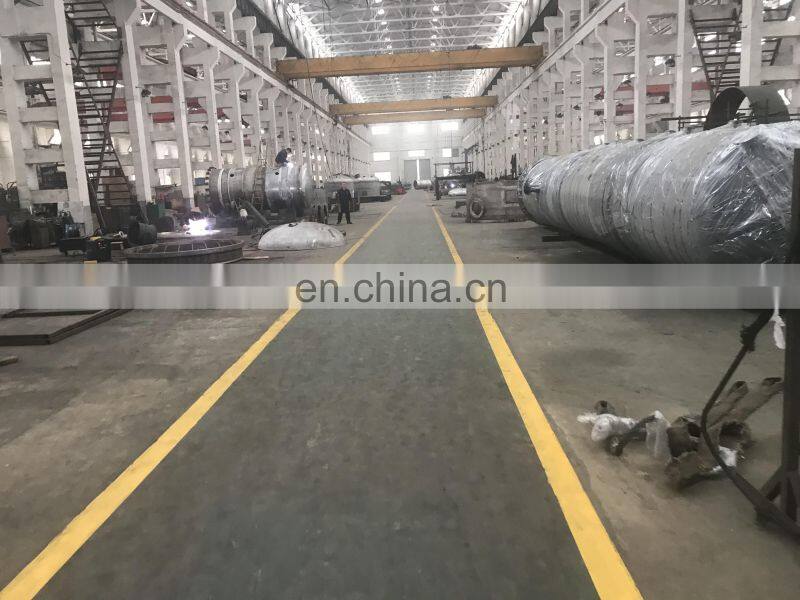

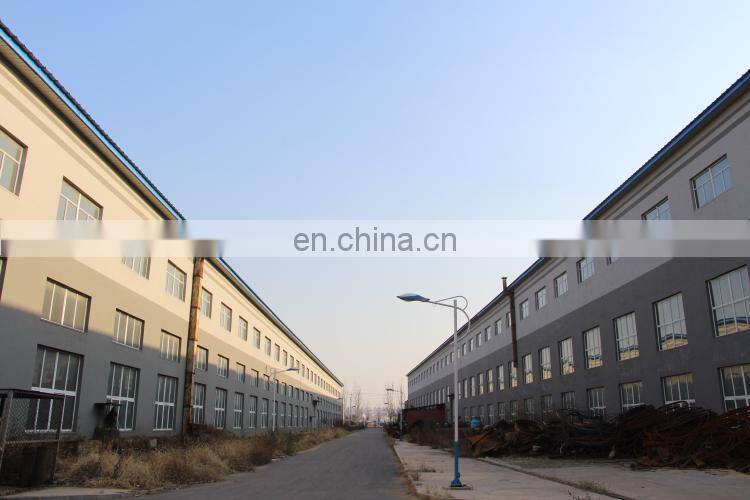

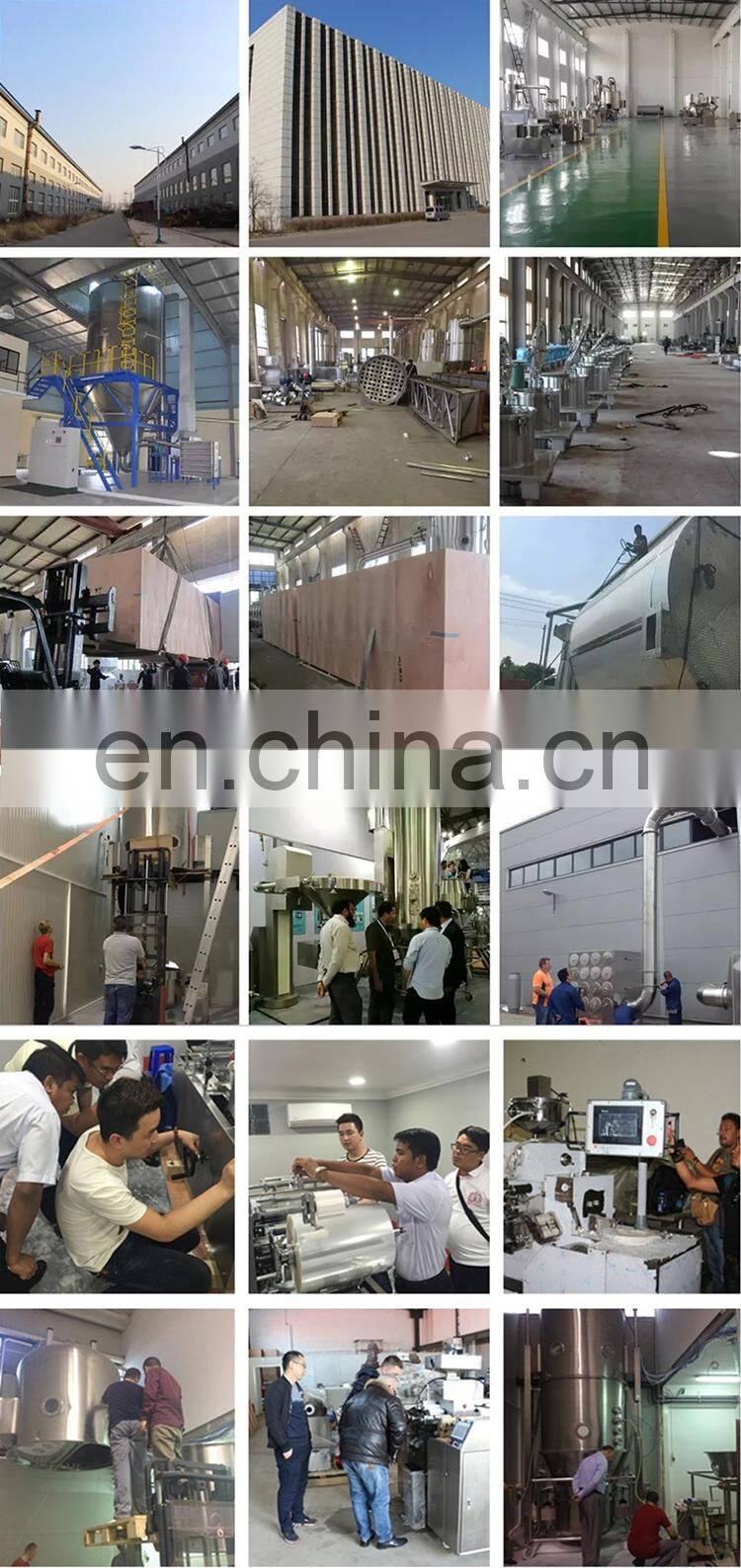

Our Company

Our Customer

Due to our good credit and service, we have made great achievements in the past years.

We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
