YK-60 Lab Wet Flour Powder Oscillating Granulator and Granulating Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

What can our Fluid Bed produce ?

Medicine granulation and coating Granulation: tablet granules, granules for granules and capsules. Coating: granules, protective layer of pills, color preparation, slow release, film, enteric coating. Food Granulation and Coating Sugar, coffee, cocoa powder, butter, powdered fruit juice, amino acids, condiments, puffed food. Pesticide, Pigment Pigment and Dye Granulation Drying of Powdery, Granular and Block Materials

Advanced Advantages

1). Mixing - granulation - drying - in one machine (one step granulation). 2). Adopting double chamber filtering bags system, removing dust completely. Using antistatic filter material, the equipment is safe to operate. 3). The binder nebulizer adopts multi-fluid spray gun, which has uniform spray particles, the content of powder is very low, greatly improves the qualified rate of finished products. 4). Can choose two bars explosion-proof design 5).The equipment has no dead angle, the loading and unloading material is light, fast and clean. 5) Designed, manufactured and laid out up to pharmacy industry standard. 6)Design&Manufactured in accordance with JB20014-2004

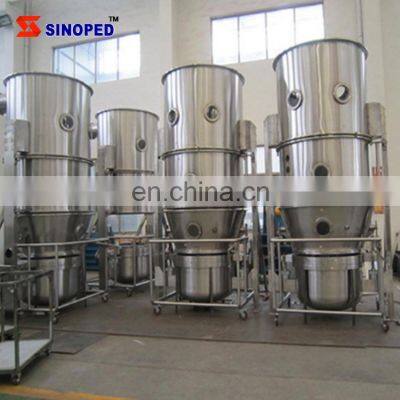

Production on Site

General Layout

Production on Site

PRODUCT SPECIFICATIONS

Model	5	30	60	120	200	300	500
Capacity(kg/b)	5	30	60	120	200	300	500
Material Yield Rate%	>/=99%
Qualified Rate	</=85%
Container Volume L	22	100	220	420	670	1000	1500
Diameter mm	500	700	1000	1200	1400	1600	1800
Power Fan KW	3	7.5	11	18.5	22	30	45
Liquid Feed Power KW	0.37 fluid bed dryer granulator
Pressure Steam	0.4~0.6 MPa
Consumption Steam	18	60	120	140	180	310	400
Compressed Air	0.4~0.6 MPa
Consumption Air	0.3	0.9	0.9	0.9	1.1	1.1	1.1
Working Temperature C	Room Temperature to 120C adjustable
Noisy dB	Installed Separated with Fan </=75

Successful Project

FL300 in EU

FLG120 in Phillipines

FG60 in Mexico

PRODUCT CONFIGURATION

Main Tower

Air Handle System

Two Fluid Spray System

Welcome to SINOPED ! Fluid bed dryer granulator

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical machinery in China. It integrates development, manufacture, sales, after-sale services as a whole, being a professional supplier for dryer granulator, mixer, coater. Solid preparation machine, such as filling machine , capsule machine, tablet machine, packing machine and clean room turnkey project for pharmacy factories. All of machinery fully come up to G M P requirement. Testified by the experience of long-term users, our products have very high stability and reliability, which have been sold to more than 20 regions, cities, and provinces around China and some foreign countries like Asian, European, American. Sinoped have established long-term business relations with many customers and some of them already cooperate as our agent in their countries. For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality pharmaceutical equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The pharmaceutical equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration——Our pursuit is to product the best cost-effective machines in China. In this 21-century full of opportunities and challenges, SINOPED will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
