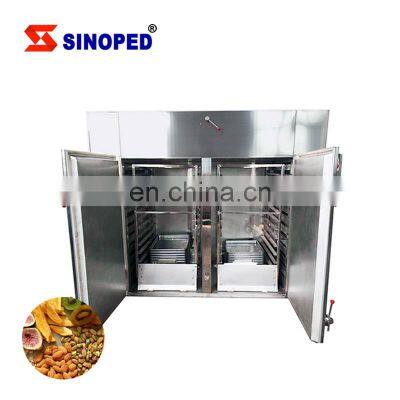

High Temperature Heat Treating Industrial Drying Chamber, Hot Air Industrial Drying Oven
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Blast Drying Oven Tablet Drying Oven Medicinal Materials Hot Air Drying OvenNegotiableMOQ: 1 -
Customized Industrial Big Hot Air Dryer Drying Oven Machine for Pharmaceutical UseNegotiableMOQ: 1
-
Automatic Capsule Filling Machine ApprovedNegotiableMOQ: 1
-
Simple Innovative Products Latest Semi Automatic Capsule Filling MachineNegotiableMOQ: 1
-
CGN-208D Semi Automatic Powder Capsule Filling MachineNegotiableMOQ: 1
Hot Air Circulation Drying Oven
Product Description
CT-C series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-45% of the present one. The highest heat efficiency can reach 50%. The successful design of CT- Chot air circulation drying oven makes that the hot air circulation drying oven in our country reach the advanced level both at home and abroad. In order to save a large quantity of the energy in our country, in order to enhance the economic results of the enterprises, in 1990, the medicine management bureau of the State issued the industry standard and the uniform type is RXH.
Product Details
Specification
Model of industrial standard |
RXH-5-C |
RXH-14-C |
RXH-27-C |
RXH-41-C |
RXH-54-C |
Model specification |
CT-C-0 |
CT-C-I |
CT-C-II |
CT-C-III |
CT-C-IV |
Dry amount each time (kg) |
60 |
120 |
240 |
360 |
480 |
Equipped power (kW) |
0.45 |
0.45 |
0.9 |
1.35 |
1.8 |
Consumption of steam (kg/h) |
10 |
18 |
36 |
54 |
72 |
Area of radiation(㎡) |
10 |
20 |
40 |
80 |
100 |
Amount of air (m³/h) |
3450 |
3450 |
6900 |
10350 |
13800 |
temperature difference between up and low(°C) |
±2 |
±2 |
±2 |
±2 |
±2 |
Amount of drying tray to be equipped |
24 |
48 |
96 |
144 |
192 |
Overall dimensions WxDxH(mm) |
1480*1100 *1750 |
2300*1200 *2000 |
2300*2200 *2000 |
2300*3200 *2000 |
4460*2200 *2290 |
Equipped drying trolly |
1 |
2 |
4 |
6 |
8 |
Applicable products
Applications
1.The heat source can be steam, heat conductive oil,electricity or far infrared. Customers can select one of them in accordance with practical conditions.
2.Temperature for steam:140℃-150℃.
3.Temperature for electricity or far infrared:350℃.
4.There are automatic and computer control system for customers to choose.
5.The normal steam pressure:0.2-0.8MPa.
6.Power for electricity heat source will be 15KW calculated as Model I. Practical power to be used will be 5-8kw/h.
7.lf any special requirements, please indicate it when order.
8. Parameters for non-standard ovens shall be discussed separately according to different conditions.
9.If the operating temperature is higher than 14℃ or lower then 60℃, please indicate it when order.
10.The drying trollies and trays are of a standard size and can be exchanged with one another. 11.The size of drying tray:460x 640x45mm.
The radiators can be used for various drying equipment.There are many specifications and kinds.The materials to be used are aluminium alloy stainless steel, A3 steel surface zinc covering,steel and aluminium compound, copper,steel pipe and aluminium winding sheet In addition.the radiators can be used for the heating and dehunidification indoors in the warehouses.Our factory can carry out the design and manufacturing for our users.
The radiators can be used for various drying equipment.There are many specifications and kinds.The materials to be used are aluminium alloy stainless steel, A3 steel surface zinc covering,steel and aluminium compound, copper,steel pipe and aluminium winding sheet In addition.the radiators can be used for the heating and dehunidification indoors in the warehouses.Our factory can carry out the design and manufacturing for our users.
Company Profile
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group. We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute.
With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, blister packing machines, capsule filling machines, cartoners .
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
FAQ
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
1.Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by
yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various pharmaceutical equipments and packing machines professionally over 13 years, and we can provide better after-sales service.
1.Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by
yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various pharmaceutical equipments and packing machines professionally over 13 years, and we can provide better after-sales service.
