Automatic Eye Drops, Nasal Drops, Ear Drops Filling Machine
General Features of Automatic Eye Drops, Nasal Drops, Ear Drops Filling Machine
Automatic Eye Drops, Nasal Drops, Ear Drops Filling Machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on. The machine is composed by a load turntable, ceramic piston pump(alternative peristaltic pump) &fill nozzles, plug & sorter, Plug & placer, caps screw-on system, unload tray. The bottle loading/unloading is done manually, through loading turntable Ø500mm and unloading tray, or directly from an production line. It is designed and made accordance to GMP regulation.
Technical Features of Automatic Eye Drops, Nasal Drops, Ear Drops Filling Machine
|
Kind of bottle |
Round eyedrop bottle or similar |
|
Bottle size* |
Min. Ø 20mm Ø30mm |
|
Speed |
80~100bpm on 10ml~5ml |
|
Filling volume* |
2ml~30ml |
|
Filling accuracy |
±2% |
|
Power* |
220V 50/60Hz 1.5kw |
|
Compress air require |
50~70L/min, 4~6bar |
|
Machine size |
2500*1420*1500mm |
|
Machine weight |
900kgs |

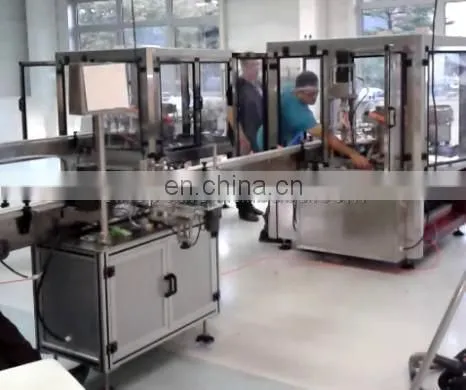

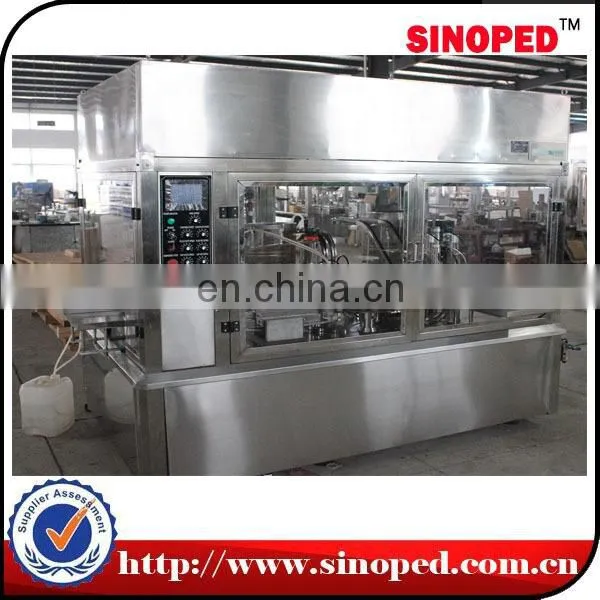

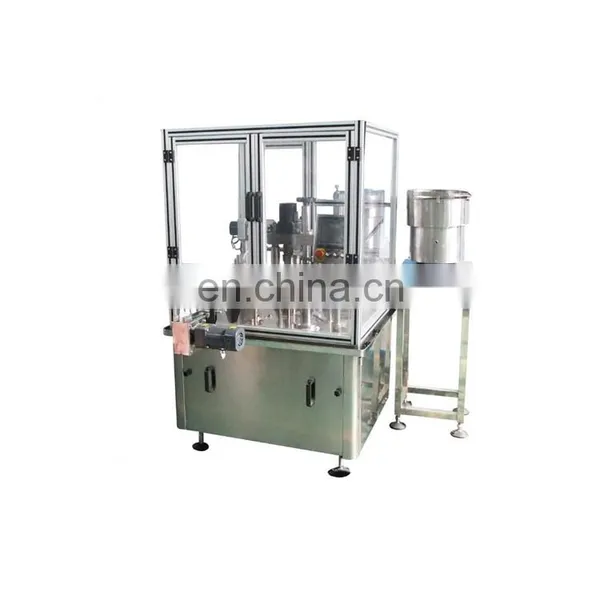

The picture of Automatic Eye Drops, Nasal Drops, Ear Drops Filling Machine for reference

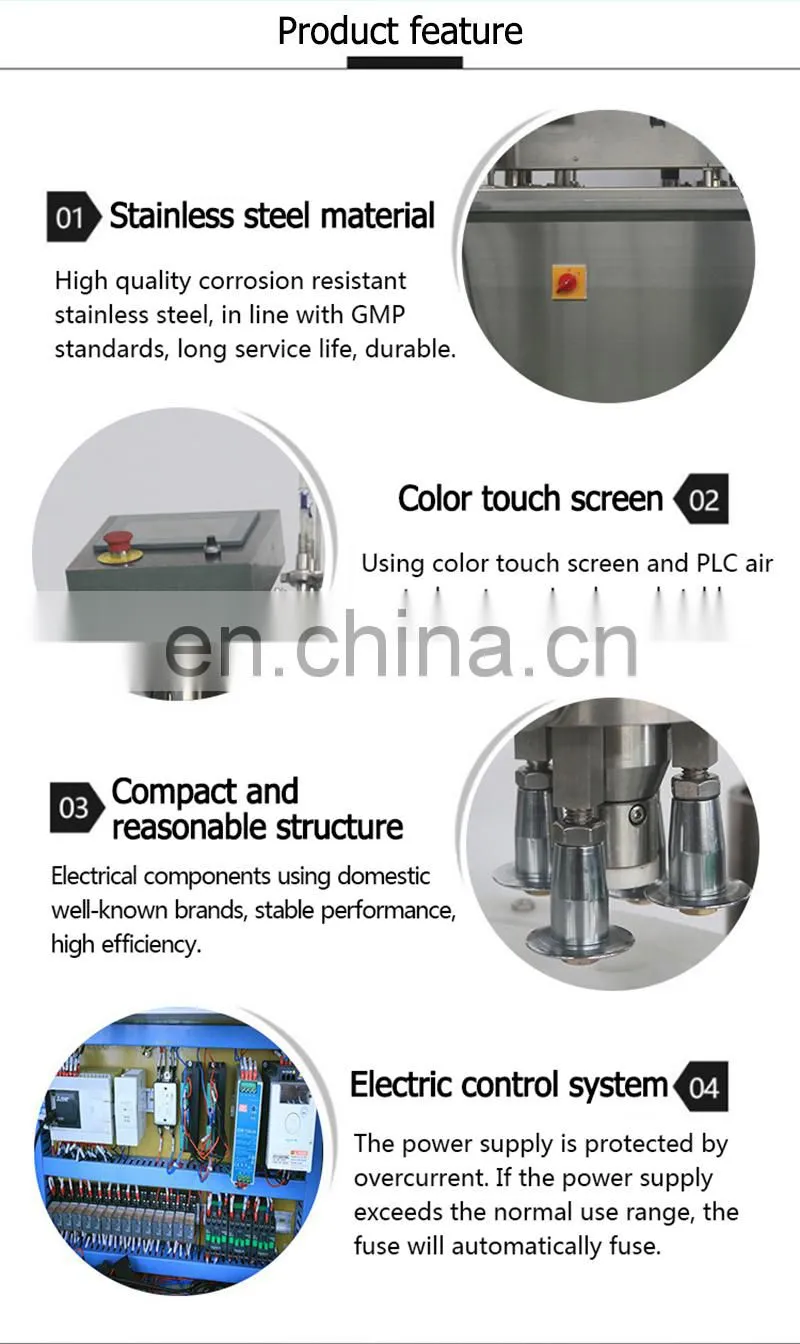

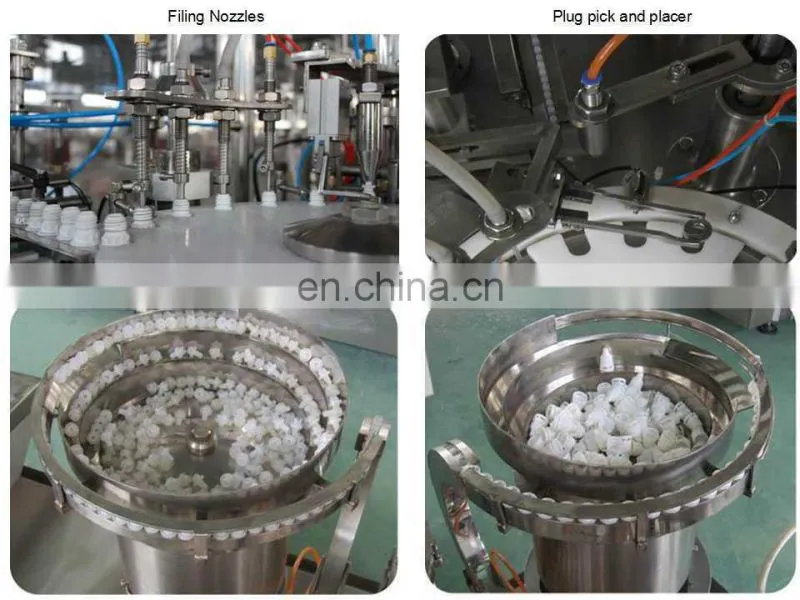

Machine details of Automatic Eye Drops, Nasal Drops, Ear Drops Filling Machine for reference
Laminar Flow Unit – optional

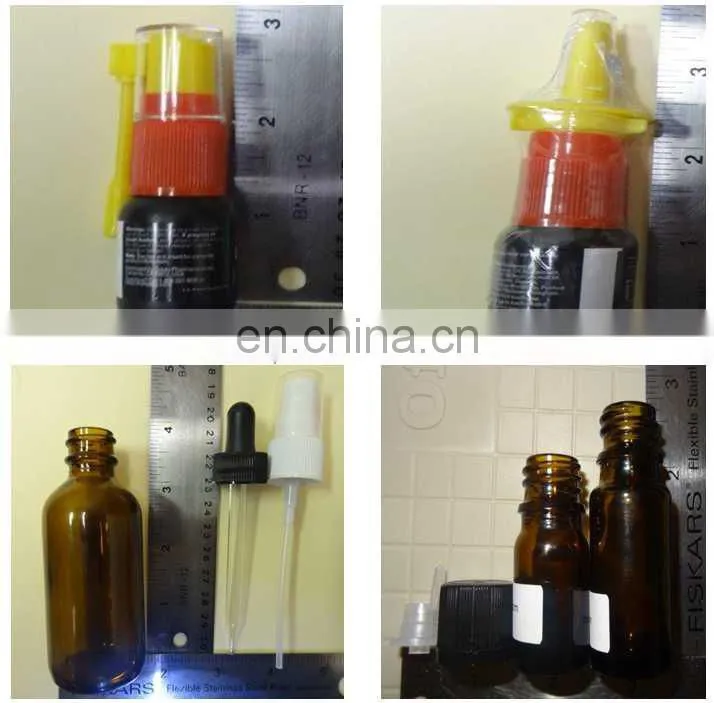

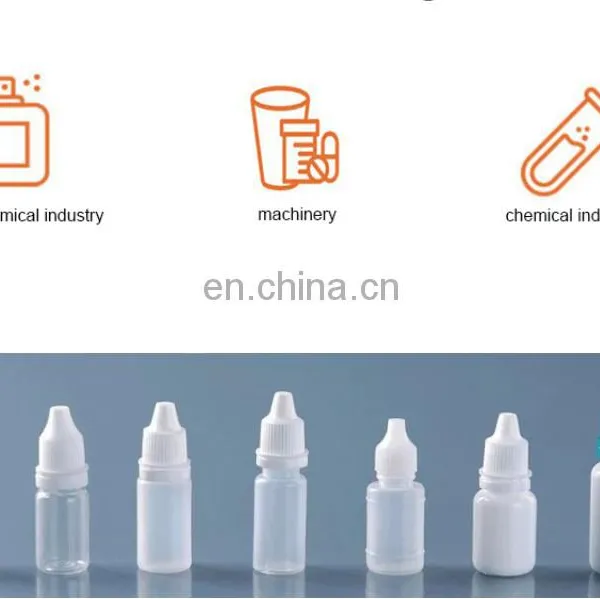

The product shows of Eye Drop or Nail Polish Liquid Filling Capping Machine for reference
ps.: Any requirements or question, pls feel free to send an inquiry or leave a messege to let us known and get more information about the machines.
Why
Us?
We offer professional turnkey project from design till done of the whole project:
- Project consultation
- Conceptual design
- Design
- Factory building
- Clean room and machine manufacturing
- Installation
- Commissioning
- Training
- Assist validation and production
- Customer’s project works well...

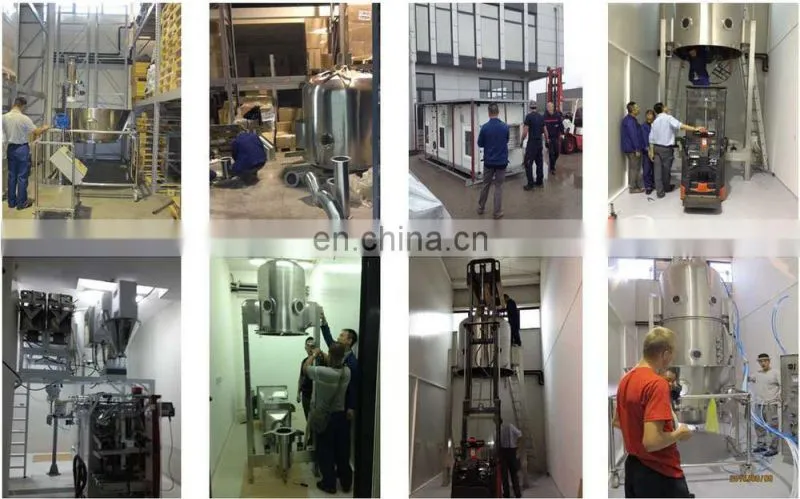

Professional team at the working site:

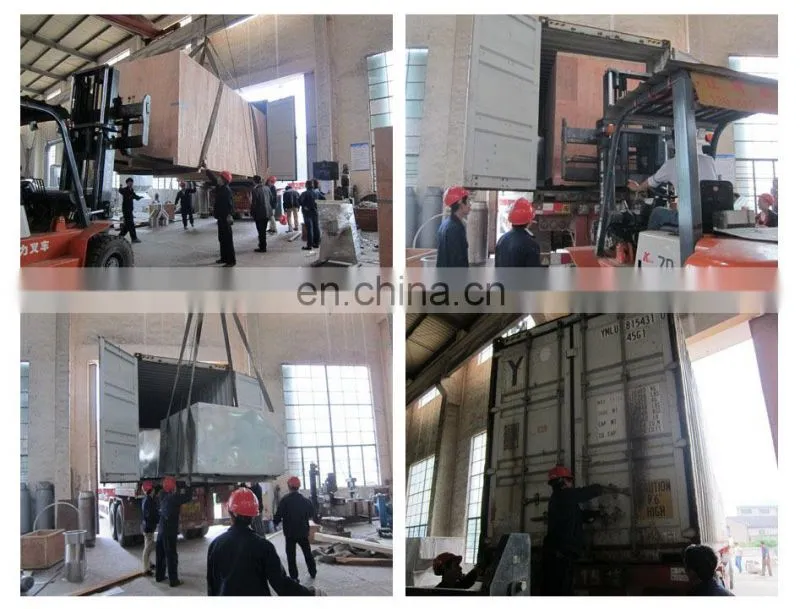

We have adopt EXPORT STANDARD WOODEN CASE for packaging and long coorporated vessel company, which can ensure your machine can reach your site smoothly!
Export documents
After-Sale Service
1. We will send our technical enginner to your country to do installation, and training.
2. After our machine arrived to your country, we can send our technician to do the installation and training, and your part bear the airplane fee, the local accommadation and time fee.
3. One year free spare part free with our machine.
4. One year warranty.
Welcome to choice our product , please give us more advices . Thank you!

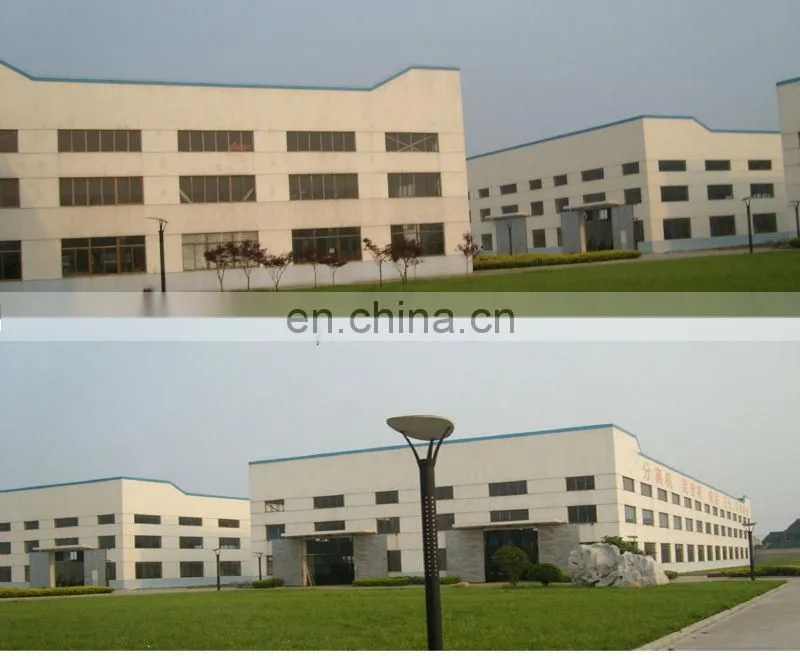

Welcome to choice our product , please give us more advices . Thank you!Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are amoule filling line,vial filling line,bottle liquid and powder filling line, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, full-automatic horizontal doypack packing line , capsule filling machines and cartoners.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
