Help CenterGas Application Fully Welded Ball Valve
Related Products
-
Worm Gear Operated Full Bore Welded Ball ValveUS$ 500 - 8000MOQ: 2 Sets -
Union Connection End Plastic Ball ValveUS$ 100 - 1000MOQ: 5 Pieces
-
Plastic PVC True Union Ball ValvesUS$ 100 - 1000MOQ: 5 Pieces
-
Fully Welded Ball Valve With Worm GearUS$ 200 - 20000MOQ: 1 Set
-
With Handle Medium Pressure Fully Welded Ball ValveUS$ 100 - 500MOQ: 1 Set
Fully welded ball valves are used mainly in gas transmission and distribution pipeline (Mid-stream),include PE end T type fully welded ball valve and T type extended stem fully welded ball valve.
Structure
1.T type fully welded ball valve is designed for three-pieces side mounting forge welding structure
2.Forged steel fixed ball valve is designed with floating valve seat, soft and metal two-stage seal, the primary seal is metal sealing, secondary seal is non-metal seal; generally speaking ,the secondary seal adopts Viton-AED, DEVLON, PEEK and all metal seal, etc.
3.Ball valve body is fixed with built-in support plate structure
4.Valve fire test is made as per API607 and BS 6755
5.With Anti-static and anti-blowout function
6.Valve seat structures designs are available in DBB, DIB or DBB and DB combinations
7.Valve driving device mounting platform and interface settings are designed according to ISO 5211
8.The valve body is welded with a typical narrow gap arc multi-layer welding method, welding line is made with 100% ultrasonic inspection and hardness test .
9.Finite element analysis was used to analyze the simulated working conditions of the body shell strength, the force of the inner parts and the operating torque of the stem, so as to optimize the problems and weaknesses and ensure the valve performance optimization.
10.The surface of the valve is coated with corrosion resistant asphalt, polyurethane or epoxy resin according to the specification to adapt to buried installation.
11.Sealed emergency grease injection function
Technical parameter:
PE end T type fully welded ball valve
Testing and inspection : GB/T 19627
Size range: DN50-DN800mm
Pressure range :PN1.6~PN4.0MPa
Working medium temperature: -29℃~+100℃
Drive mode: standard worm gear operated

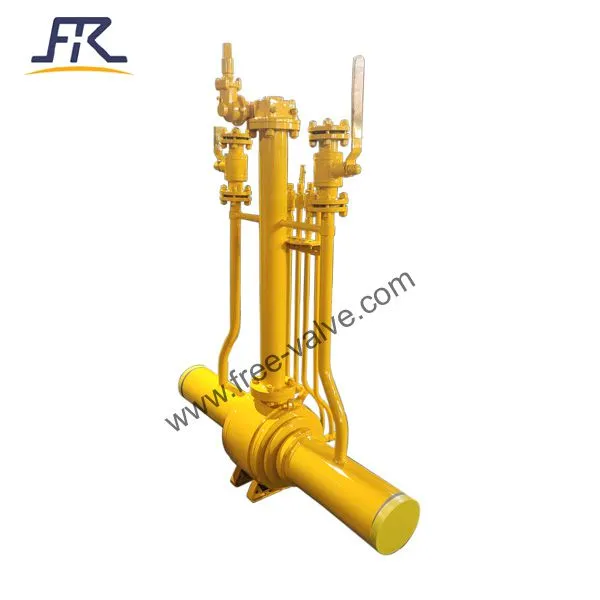

T type extended stem fully welded ball valve:
Design standard: API 6D, ASME B16.34
Connection standard: Welded end ASME B16.25
Face to face standard: API 6D, ASME B16.10
Inspection standard: API 6D, API 598
Size range: NPNS2-48 (DN50-DN1200mm)
Pressure range: Class 150-class 2500 (PN1.6-PN42mpa)
Working temperature: 29℃~ +200℃
Driving mode: NPS2-NPS 4 (DN50-DN100mm) handle, NPS6-NPS48 (DN150-DN1200mm) standard worm gear selected
Optional driving mode: pneumatic, electric, etc
The dimension of valve connecting end can be designed and manufactured according to user requirements
Material detail
Valve body :A105, A350Lf2 and equivalent materials,A182 F304 and equivalent
Stem: ANSI 3140 +ENP, A182 F304 or equivalent
Valve ball : A105+ENP, A350 LF2+ENP and equivalent materials
ASTM A 182 and equivalent
Stem/sliding bearing seal:304+PTFE, 316+PTFE
Ball seal: Viton-AED metal composite sealing
Application: Natural gas, city gas, oil field ,Urban heating system as an on-off device.
Model：FRQ361F
Origin:China
Payment terms:TT,LC
Price terms:FOB,CIF.FCA,CFR
Delivery time:15 days
Brand:FREE-VALVE
Wechat ID:Free_Valve
Email:marketing@free-valve.com
Skype :marketing@free-valve.com
Mobile :+8619937155563
Whats app:+8613460250295
