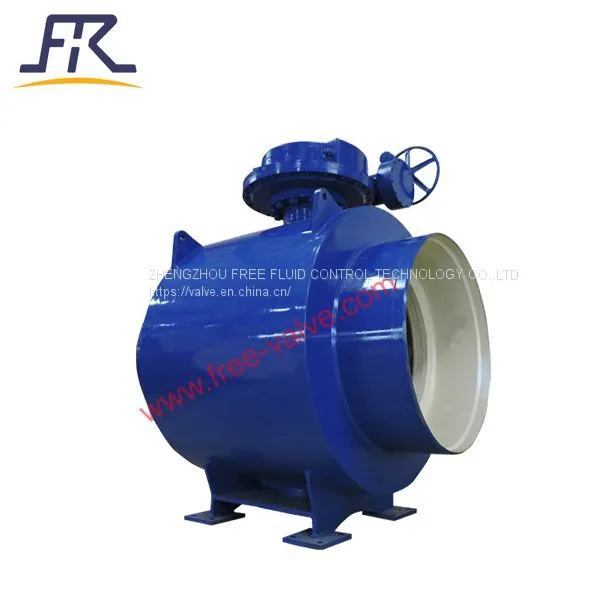

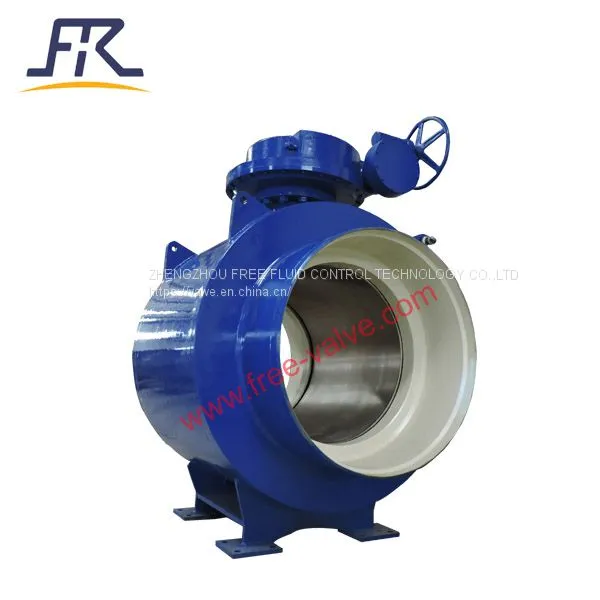

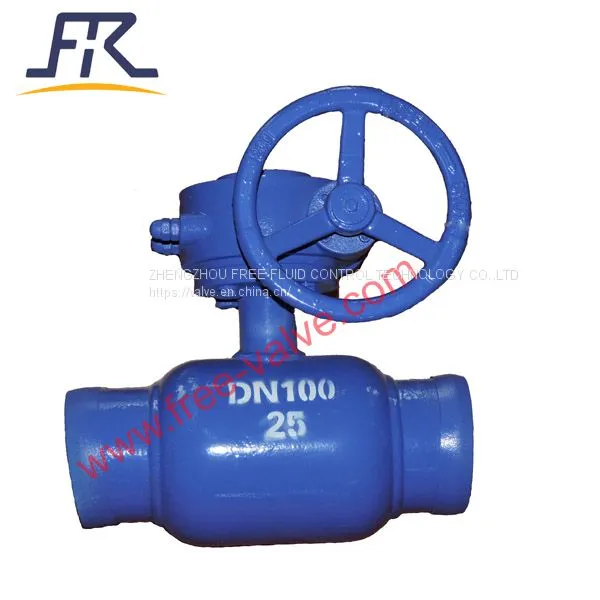

FREE-VALVE’s worm Fully Welded Ball Valve are widely used in almost all the industry .Compared to the general casting ball valve,fully welded ball valve have a highly performance and longer life time . It was widely used in city gas ,city heat supply ,oil chemical industry,ship building ,steel ,power plant etc . Fully welded ball valve can be reliable run in the long time ,easy to be installed and less maintenance work .
Usage
city coal gas : coal gas supply pipe ,main pipe and branch pipeline
centralized heating : pipeline of large heat supply equipement .
Heat exchanger : pipe line and loop cut off .
Steel plant : all kinds of fluid pipe ,waste gas pipe ,coal gas and heat supply pipe ,
All kinds of industrial equipment : all kinds of heat treatment pipe ,all kinds of industrial coal gas and heat pipe .
Characteristic
Integrated fully welded ball valve ,have a nice sealing performance and leakage will not occur . Because valve seat is made up of PTFE sealing ring and spring ,which can adapt to the change of pressure and temperature . So the leakage will not occur during the pressure and temperature range .The ball have a highly machining precision due to the tracking of computer detector . Beside that ,valve body material is the same as the pipe material , so they will not occur transformation due to unbalanced stress . The material of sealing ring is PTTE ( carbon content is 20%), so it can gurantee the zero leakage .
Specification
Valve type : Q361H-16C
Connnect method :welding
Pressure class :150~600LB,1.6MPa~ 4.0MPa
Valve size :1/2" ~ 40" , DN15 ~ 1000mm
Valve material : WCB,A105,F11,F22,F304,F316,CF8,CF8M,WCC etc .
Temperature :-29℃≤t≤150 ℃
Medium ；Water ,oil ,gas ,acid ,alkaili etc
Driving method : electric ,handle,worm gear etc .
