Product Description
Description

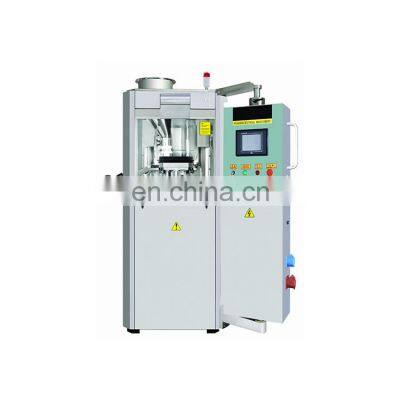

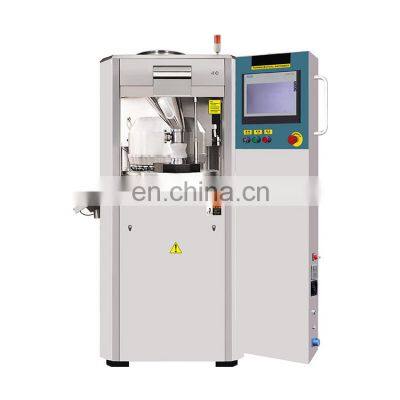

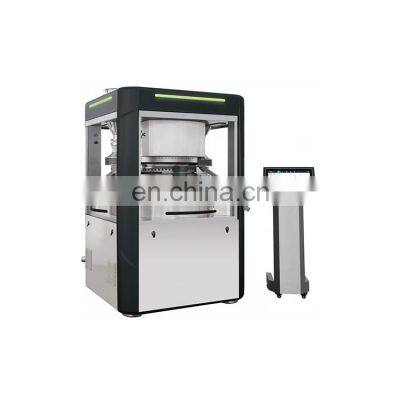

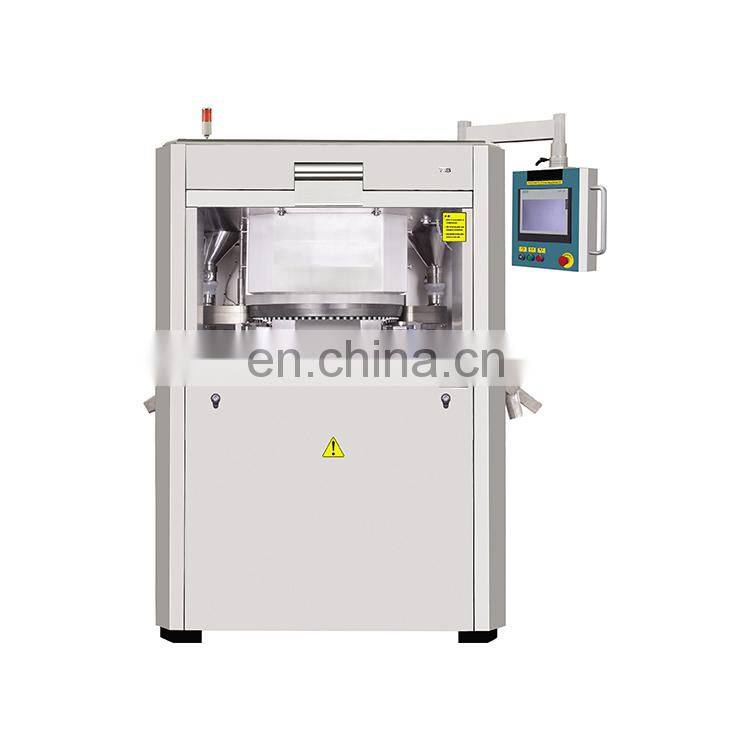

The GZPTS series of high-speed double-slide tablet press machine is designed with high production efficiency, high pressure, well stability and dust-proof facilities, with double-layer tablet and ring tablet functions. It can widely used in pharmaceutical, chemical, food, electronics, metallurgy, daily necessities and other industries.
 Performance Advantage
Three sets of independent lubrication system.
1. Thin oil lubrication system: thin oil filtering, oil keep tidy all the time, effectively control temperature, which mainly act on main axis, pressure wheel, inner ruler ring etc.
2. The electric grease lubrication system is used for lubricating hat of upper and lower punches&die, meanwhile with the decrease vibration and noise function.
3. Thin oil lubrication is used for lubricating upper and lower punches&die in the die plate.
Specification
Model
GZPTS-45
Punch&die type(EU)
D
Number of press station
45
Max tablet diameter(mm)
25
Max abnormal prolate axis size
25
Production range(Tablet/h)
43200-432000
Speed cycle(R/min)
8-80
Max filling depth(mm)
20
Max main pressure(KN)
100
Max pre pressure(KN)
20
Idle load noise dB(A)
<85
Power
380V 50HZ 15KW
Size L×W×H(mm)
1265×1485×1950
Weight(kg)
3750
Model
GZPTS-55
GZPTS-75
Punch&die type(EU)
B
BB
Number of press station
55
75
Max tablet diameter(mm)
16
13
Max abnormal prolate axis size
18
16
Production range(Tablet/h)
52800-528000
72000-720000
Speed cycle(R/min)
8-80
Max filling depth(mm)
18
18
Max main pressure(KN)
100
100
Max pre pressure(KN)
20
20
Idle load noise dB(A)
<85
Power
380V 50HZ 15 KW
Size L×W×H(mm)
1265*1485*1950
Weight(kg)
3750
Packing & Delivery
Company Profile
Sino Pharmaceuticat Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group. We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc. Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects. In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
FAQ
1.Why choose us? SINOPED has been being engaged in the purification technology and its application for decades. We have our own R&D team, performing continuous product research and improvement from time to time. Our products are certificated by the most prestigious national institutes in China and international institutes around world . The procedures of producing are controlled strictly to make sure the product costs optimally. The price of our products are negotiable. We are aiming to create most valuable products for customers. 2. Can your machine meet our need well? We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well. 3. Are you a factory or a trading company? We are the manufacturer, and have been in industry for more than ten years. 4. What's your payment way? T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash. 5. How can you ensure the machine's quality after we put the order? Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side. 6. We are afraid you won't deliver us the machine after we pay you the money. Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
