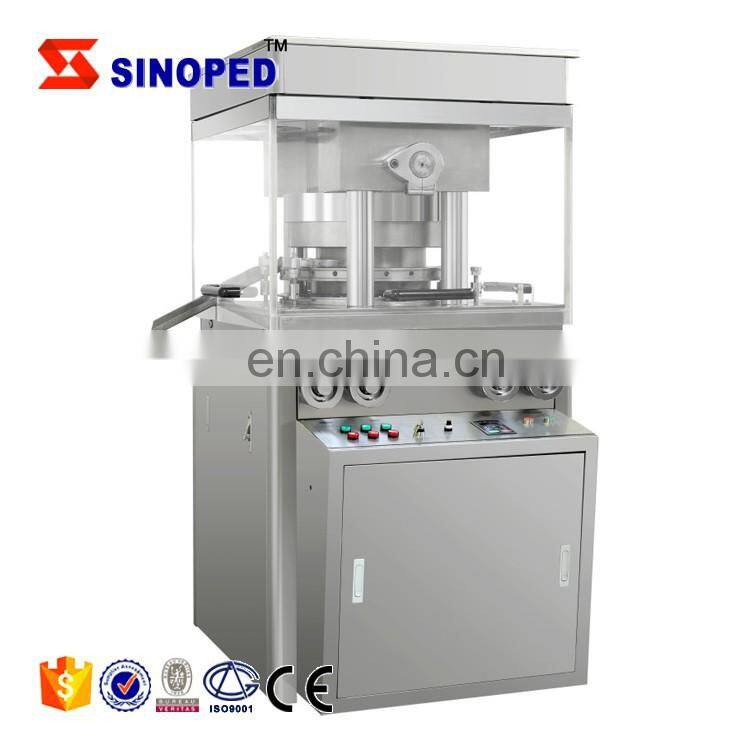

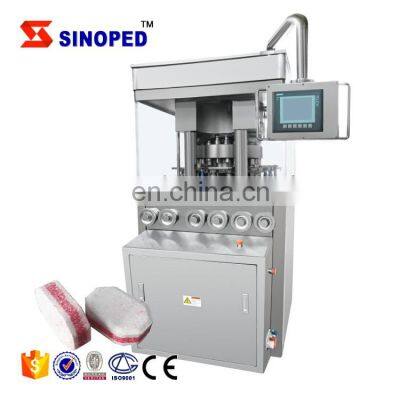

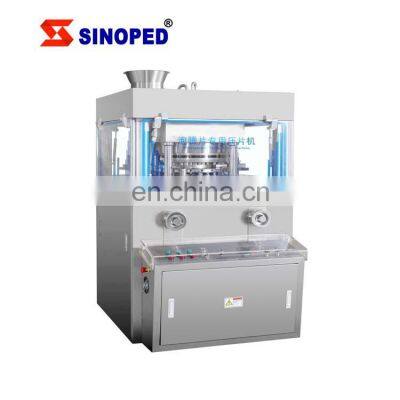

ZP- 27 Rotary Tablet Press Machine ZP27 Double Pressing Rotary Tablet Press Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Automatic Bottle Shrink Wrapping Machine for Carton BoxNegotiableMOQ: 1 -
Cheap Price Manual Sealer Heat Tunnel Thermal Shrink Wrapping MachineNegotiableMOQ: 1
-
Stevia Sugar Plant Sugar Extraction Machine in Stevia Sugar Production LineNegotiableMOQ: 1
-
Stevia/Stevia Leaf Extraction MachineNegotiableMOQ: 1
-
Home Use Food Powder Pulverizing Grinding Machine Grain Crusher MachineNegotiableMOQ: 1
Product Description
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece ,be carved characters ,special shapes and double color piece prescription .It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods, electronics .(Note: when manufacturing double color piece ,it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit .)
Type | ZP-23 | ZP-25 | ZP-27 | ||
Dies (sets) | 23 | 25 | 27 | ||
Max. Pressure (kn) | 100 | 100 | 100 | ||
Max. dia. of tablet (mm) | 35 | 32 | 30 | ||
Max. Thickness of tablet(mm) | 15 | 15 | |||
Max. Depth of fill (mm) | 30 | 30 | 30 | ||
Max. output of one-layer tablets (pcs/h) | 69000 | 75000 | 8100 | ||
Rotational diameter (mm) | 445 | 445 | 445 | ||
Rotational speed of revolving table (r/min) | 10-25 | 10-25 | 10-25 | ||
Diameter of middle mould (mm) | 52 | 52 | 52 | ||
Highness of middle mould (mm) | 38 | 38 | 38 | ||
Overall dimensions(mm) | 1000×1250×1900 | ||||
Net weight (kg) | 3200 | 3200 | 3200 | ||
Motor model | YU132M4A | YU132M4A | YU132M4A | ||
Motor (kw) | 7.5 | 7.5 | 7.5 | ||
Voltage(v) | 380 | 380 | 380 | ||
Operating principle.
2. Equipped with plexi glass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain. All monitors and operating components are in good order. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
3.Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically. Combining machine with electricity, equipped with touching key and screen. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
4.Ransmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
5.Powder-absorbing apparatus could absorb the powder in the piece-pressing room.
Principle
1. The cover of this tablet press machine is made of stainless steel with close type. The inner tablet surface is also made of stainless steel materials which could keep surface luster and prevent from cross pollution, meets GMP requirement.
2. The compression area is enclosed with transparent organic glass. Through the transparent protective cover can see the
mechanical operation of the situation clearly, and can open all of them, easy to cleaning and maintenance.
3. Speed is infinite speed, can be adjusted.
4. Mechanical and electrical integration, variable speed operation.
5. Transmitting system is sealed in the oil box under the main machine, which works separately, not pollution each other and easyto send out heat and resist grinding.
6. Machine equipped with suction machine which could absorb the powder of working area.
2. The compression area is enclosed with transparent organic glass. Through the transparent protective cover can see the
mechanical operation of the situation clearly, and can open all of them, easy to cleaning and maintenance.
3. Speed is infinite speed, can be adjusted.
4. Mechanical and electrical integration, variable speed operation.
5. Transmitting system is sealed in the oil box under the main machine, which works separately, not pollution each other and easyto send out heat and resist grinding.
6. Machine equipped with suction machine which could absorb the powder of working area.

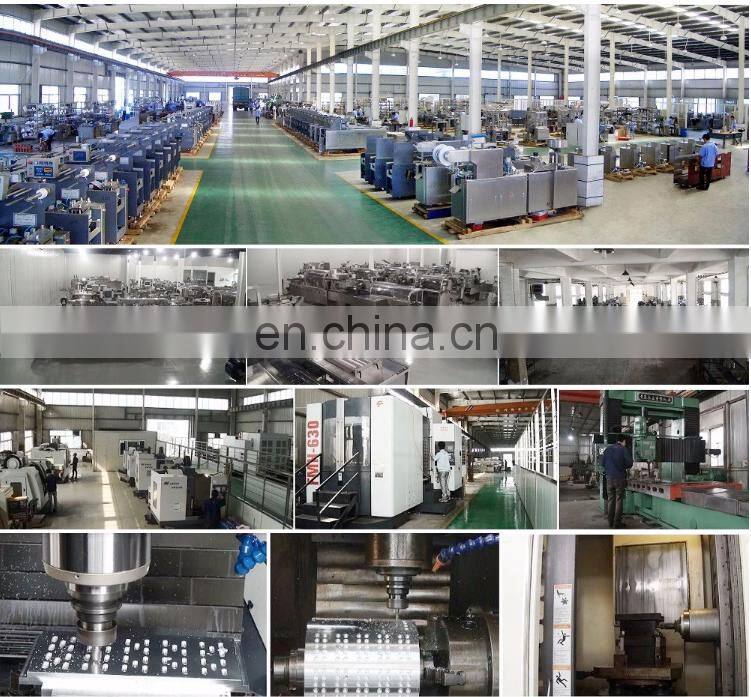

Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, we have made great achievements in the past years.
We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, we have made great achievements in the past years.
We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Our Service & FAQ
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better
after-sales service.
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better
after-sales service.
