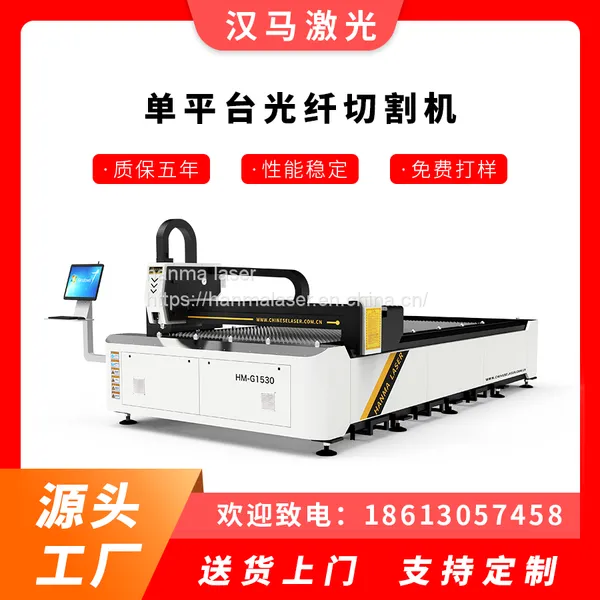

High Quality CNC Fiber Laser Cutting Machine Made in China High Efficiency Fiber Laser Metal Cutting Machine From China

High Quality CNC Fiber Laser Cutting Machine Made in China High Efficiency Fiber Laser Metal Cutting Machine From China photo-1
Negotiable MOQ: 20 Bags (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HANMA LASER
Model Number:
HM-G1530
Certification:
Other, CE, ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HANMA LASER
Model Number HM-G1530
Certification Other, CE, ISO
Condition New
Graphic Format Supported Other, AI
Cooling Mode Water Cooling
CNC or Not Yes
Cutting Speed 110m/min
Cutting Area 1500*3000mm
Applicable Material Other, Metal
Laser Type Fiber Laser
Applied Industry Material

Used in sheet metal processing, aviation, aerospace, electronics, appliances, subway accessories, machinery, precision parts, ships, metallurgical equipment saw blades, elevators, household appliances, craft gifts, tools, processing, decoration, advertising, metal external processing variety of metal processing industry.

Applied Material

Stainless steel, carbon steel, alloy steel, manganese steel, galvanized sheet, aluminum, copper, metal tube cutting and punching.

Parameters
Parameters
HM-G1325/G1530 laser cutting machine
Working area
2500*1300mm / 3000*1500mm (other sizes customized)
Laser media
Fiber Laser
Power supply
220/380V±10%
Laser Power
1000W/1500W/2000W(2200W)
Resetting Accuracy
±0.02mm
Cutting acceleration
1.5G
Cutting head
RayTools / WSX / OSPRI /Au3Tech
Interface
USB/ RJ45/ U disk
Graphic format supported
AI,TIFF,PlT,CDR,DWG,DXF
Materal
Engrave
Cut
Wood/MDF/Plywood/Bamboo
NO
No
Acrylic/Double color board/PVC or other sdvertising materials
No
No
Leather/PU/Synthetic leather/Canvas
No
No
Fabric/Cloth/Curtain/Twill or other textile
No
No
Paper/Postcard/Carbon paper/Mat board
No
No
Plastic/Mylar/PVC
No
No
Rubber
No
No
Fiberglass
No
No
Delrin/Melamine
No
No
Corian
No
No
Aluminium
No
YES
Tile/Ceramics/Brick
No
No
Marble/Stone/Granite
No
No
Painted metal/Coated Metal
No
YES
Stainless steel
No
YES
Galvanized steel
No
YES
Carbon steel/Mild steel
No
YES
Copper
No
YES
Silver
No
No
Golden
No
No
Why us

Our services

Training, Start-up & Commissioning
1. Along with the Laser cutting machine, you can have attachment below:
               Construction book
               Operation Manual
               Training Video Disk.
(These quick accessing docs are nicely edited, clean and simple for operator to start up. Also, we offer online after sales service, our experienced technicians are available for a life long technology consultancy)
2. Guarantee and After-sale Service:
# Items:
* Laser source life expectancy : 100,000 hours, guarantee 24 months fix
* The laser machine : warranty two years
* Water cool machine: warranty one year
* Air pump : warranty one year
* Mirrors & lens : three months
* Exhaust fan device : warranty three months

# FYI:
* The seller shall guarantee that the goods when correctly mounted and properly operated and maintained, will give satisfactory performance for a period of 24 months starting from the date on which the goods are delivery from out factory.
* Except the laser tubes damage artificially, we are responsible for offering the fittings for free in guarantee period, while it is preferred you send the damaged fittings to us for examination, after confirming damage, we will send the alternative fittings to you. After the guarantee period, the fee for parts requiring will be changed
