Fiber Laser Cutting Machine From China High Speed Fiber Laser Cutting Machine Made in China

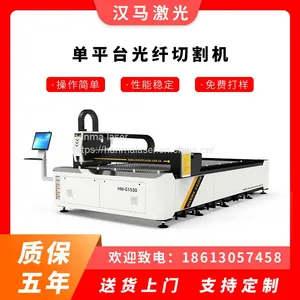

Fiber Laser Cutting Machine From China High Speed Fiber Laser Cutting Machine Made in China thumbnail-1
Fiber Laser Cutting Machine From China High Speed Fiber Laser Cutting Machine Made in China photo-1
Negotiable MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HANMA LASER
Model Number:
HM-G
Certification:
Other, CE, ISO
Contact Supplier Request Quote Chat Now
Hanma Laser
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HANMA LASER
Model Number HM-G
Certification Other, CE, ISO
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Graphic Format Supported Other, AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cooling Mode Water Cooling
CNC or Not Yes
Cutting Speed 110m/min
Cutting Area 1500*3000mm
Cutting Thickness 1-40mm
Applicable Material Other, Metal
Laser Type Fiber Laser
Product Application

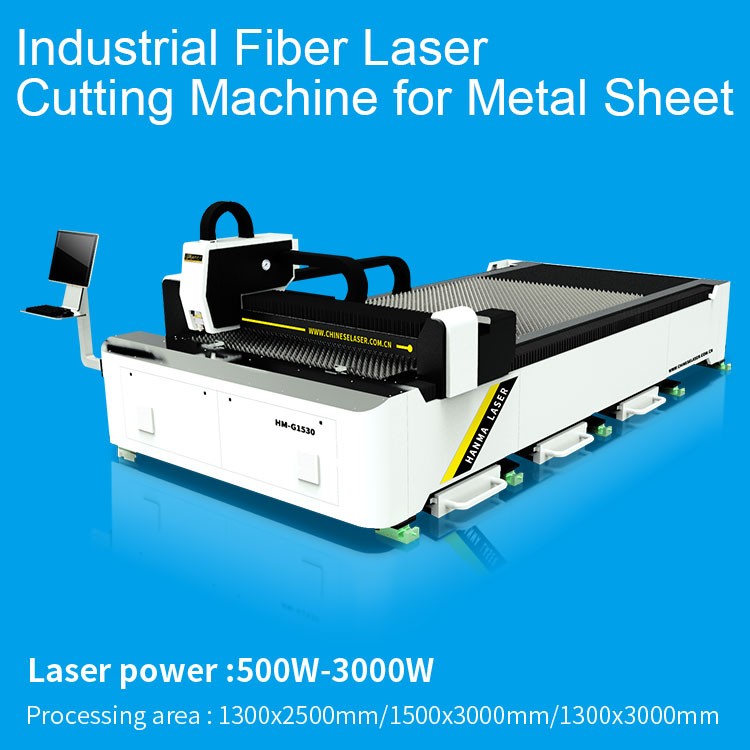

Model---HM-G1530. This machine is designed to especially cut metallic materials such as 0-8mm stainless steel, 0-20mm carbon steel, 0-6mm brass, aluminum and 0-4mm copper.


Quality is our culture! It applies Taiwan HIWIN linear rail, YYC gear and rack as the transmission and Taiwan Delta or Japan Yaskawa servo motors as the drive. The strong and solid machine body and our unique technic make the machine run very stably when it works at high speed. Above all, the economical but good quality machine is very suitable for clients to cut thin metal.

Main Parts:

1. Taiwan Hiwin guide rail and YYC gear-rack
2. Taiwan Delta or Japan Yaskawa servo motor
3. China Maxphotonics or Raycus laser source (Germany IPG laser source optional)
4. USA II-VI lens

Applied Industry Material

Used in sheet metal processing, aviation, aerospace, electronics, appliances, subway accessories, machinery, precision parts, ships, metallurgical equipment saw blades, elevators, household appliances, craft gifts, tools, processing, decoration, advertising, metal external processing variety of metal processing industry.

Applied Material

Stainless steel, carbon steel, alloy steel, manganese steel, galvanized sheet, aluminum, copper, metal tube cutting and punching.

Parameters
Product name
HM-G fiber laser cutting machine
Working area
1300x2500 / 1500x3000/ 1300x3000mm
Max cutting acceleration
1.6G
Power supply
380V±10%, 50/60HZ
Laser Power
500W / (750W) 800W /1000W/1500W/2000W(2200W)/3000W
Resetting Accuracy
±0.02mm
Max cutting speed
60/min
Laser cutting head
Auto focus
Auxiliary gas machine needs when it works
Pure air (16mpa air compressor) or Oxygen or Nitrogen
Graphic format supported
DXF, BMP,  JPEG, PCX, AI, TIFF, PlT, CDR, DWG
Materal
Engrave
Cut
Wood/MDF/Plywood/Bamboo
NO
No
Acrylic/Double color board/PVC or other sdvertising materials
No
No
Leather/PU/Synthetic leather/Canvas
No
No
Fabric/Cloth/Curtain/Twill or other textile
No
No
Paper/Postcard/Carbon paper/Mat board
No
No
Plastic/Mylar/PVC
No
No
Rubber
No
No
Fiberglass
No
No
Delrin/Melamine
No
No
Corian
No
No
Aluminium
No
YES
Tile/Ceramics/Brick
No
No
Marble/Stone/Granite
No
No
Painted metal/Coated Metal
No
YES
Stainless steel
No
YES
Galvanized steel
No
YES
Carbon steel/Mild steel
No
YES
Copper
No
YES
Silver
No
No
Golden
No
No
Why us
Our services

Training, Start-up & Commissioning

Our engineer could come to customer's factory for teaching or the customer could come to our factory for learning.
1. Along with the Laser cutting machine, you can have attachment below:
Construction book
Operation Manual
Training Video Disk.
(These quick accessing docs are nicely edited, clean and simple for operator to start up. Also, we offer online after sales service, our experienced technicians are available for a life long technology consultancy)
2. Guarantee and After-sale Service:
# Items:
* The laser machine : warranty two year

* Laser source : warranty two years
* Water cool machine: warranty one year
* Air pump : warranty one year
* Exhaust fan device : warranty three months

# FYI:
* The seller shall guarantee that the goods when correctly mounted and properly operated and maintained, will give satisfactory performance for a period of 24 months starting from the date on which the goods are delivery from out factory.
