Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > 95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu

95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu

95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu thumbnail-3

95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu thumbnail-4

95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu thumbnail-5

95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu photo-1

95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu photo-2

95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu photo-3

95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu photo-4

95ton-750ton Injection Machine /Plastic Injection Moulding Machine/SZ Series/Jiangsu photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Business Service (Transportation, finance, travel, Ads, etc)

Year Established:

2002

Annual Export Value:

US$10 Million - US$50 Million

Contact Supplier Request Quote Chat Now

Zhangjiagang Shen Zhou Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

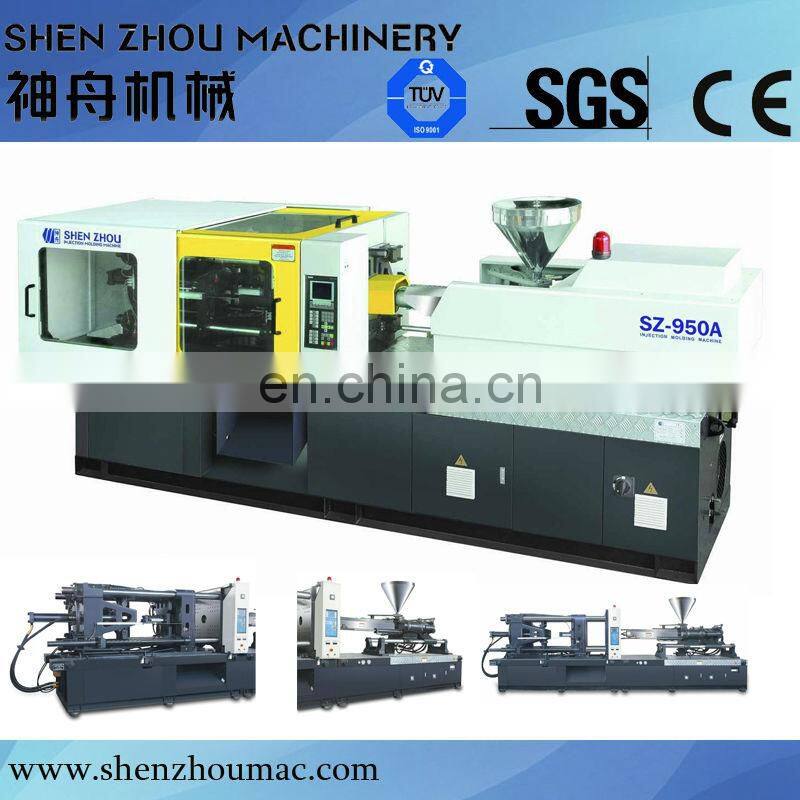

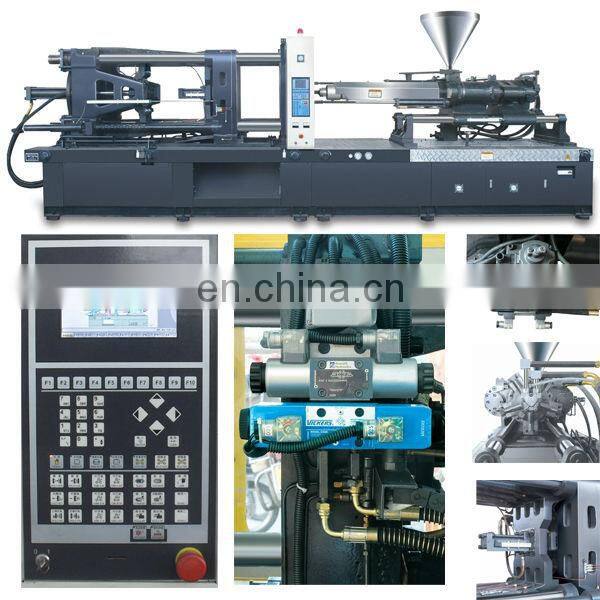

Injection Molding Machine SZ-950A, plastic injection machine

5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, to meet the strict clamping condition.....

Technical Parameter
Item	Unit	Parameter
INJECTION UNIT
screw diameter	mm	30	35	40
screw L/D ratio	L/D	24.5	21	18.4
theoretical shot volume	*cm3**	113	154	201
shot weight(ps)	g	103	140	183
injection pressure	Mpa	249	183	140
Theoretical injection rate	g/s	67.5	91.8	120
plastic capacity	g/s	8.3	12.5	18
injection stroke	mm	160
CLAMPING UNIT
max.clamping force	KN	950
max.opening stroke	mm	340
space between tie bars	mm	360x360
mould height	mm	135-380
max.daylight	mm	720
OTHER
pump motor power	KW	11
pump pressure	Mpa	16
heating power	KW	7.3
size	m	4.25x1.2x1.8
net weight	t	3.2
oil tank capacity	L	260
international designation		950-280
