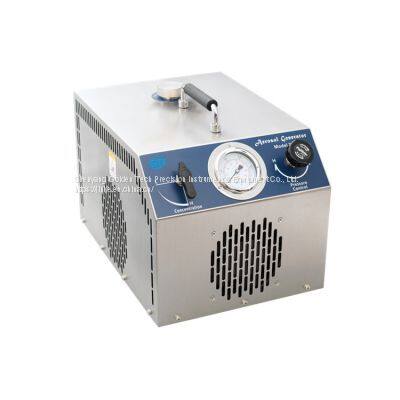

Aerosol Generator Model 3990-03

Shenyang Golden Tech Precision Instrument & Equipment Co., Ltd.
Aerosol Generator Model 3990-03 thumbnail-1
Aerosol Generator Model 3990-03 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Year Established:
2006
Product Certifications:
ISO9001
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

The Model 3990-03 is a portable compact aerosol generator, which an on-hoard air compressor supplies the necessary pressure for producing a poly-disperse oil aerosol. No other attaching air source requested. When it's total output at 23psi (158KPa) and as under this Max. pressure is diluted by 50~2000 cfm (85~3396m³/h) of air, the aerosol concentration will be  approximately 10~100μg/l for available generating.

This aerosol generator providing a wide range of aerosol concentrations, it's recommended for testing systems with air-flows of 2,000 cfm (3396m3/h) and lower. It is ideal for workstations, small or portable clean-rooms, bio-safety cabinets, ceiling modules, or HEPA filter units in installation where an adequate supply of clean, compressed air is readily available. The generator combining with aerosol concentration tester ( Photometer or Particle Counter) are used to integrity test or locate leaks in high efficiency air filtration systems by comparing the aerosol concentration between upstream and downstream of the test system.

Features
  ★ No attaching compressed air source supply required.
 ★Two regulator valves for adjusting and control the aerosol concentration.
 ★Rugged stainless steel constrction, compactive and potable design.

Application

  • Bio-safety cabinets, ceiling modules, small or  portable clean-rooms, small HEPA filter units.

  • ULPA, HEPA filter manufacturers.

  • Leak testing when filter installation.

  • Other applications for aerosol generator.

 Main specifications

Airflow range50- 2000 cfm
Aerosol Concentration 100µg / L@ 200cfm    10µg / L@ 2000 cfm
Nozzles selectionL(low) / H(high)
Size(L x W x H)38cm×27cm×26cm
Weight18.5 kgs
Power source100~125V 60Hz 4A.  or 210~235V 50Hz 2.5A
Fuse5×20mm,10A
Aerosol ReagentPAO-4, DOS, Ondina EL, DOP, Mineral oil, Paraffin,or  Corn Oil liquid aerosol reagent.
Duty CycleIntermittent on/off; or Less thank 1 hour on.
Ambient Temperature5~40ºC
Ambient PressureStandard Atmosphere
Ambient Humidity5%~85%RH
Storage requirements-25ºC~55ºC
Packing List

ItemsQuantity
Master (with potable handle)1
Power cable1
Clamp1
Silicom gasket1
Upper Chucking1
Under Chucking1
Hose clamp1
Instruction Manual1
