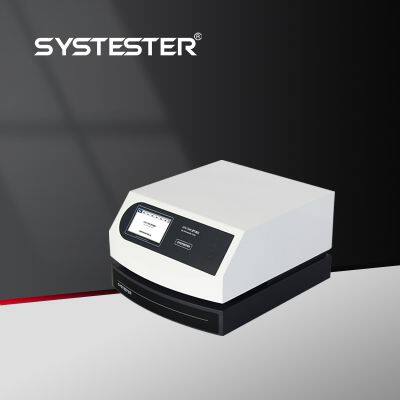

Air Permeability Tester For Battery Separator Gas Transmission Test
Product Detail
Application:
Based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.

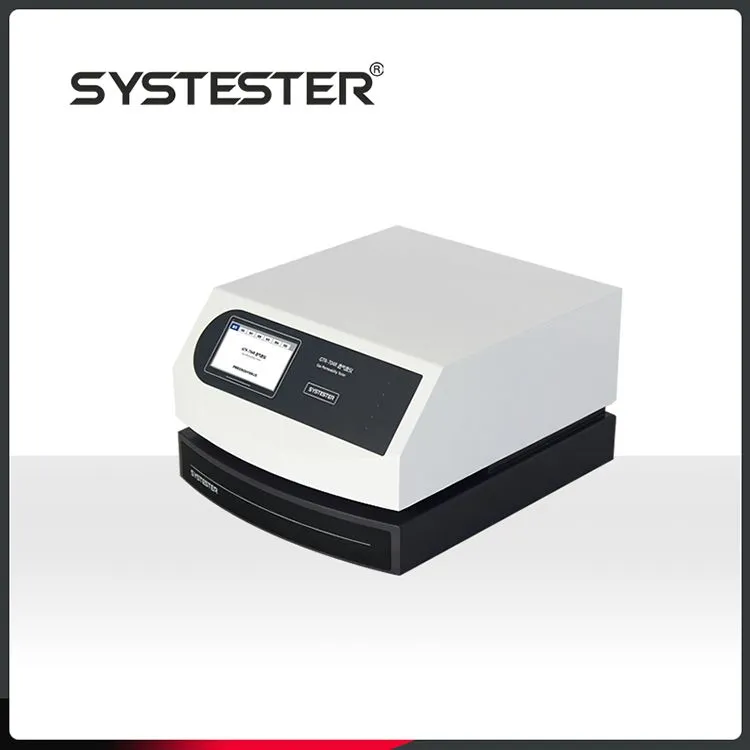

Air Permeability Tester For Battery Separator Gas Transmission Test
Features:
Standard Gurley method, own technology
Touch screen operation
Specimen automatic clamping
Test pressure automatic control
Test pressure real time display
Test data curve real time display
Output in seconds, um/Pa.s, other units optional
Interchangeable test heads(optional)
Embedded system, remote service
Built in micro-printer to print reports
Built in data query function
Automatic overload protection. Highly accurate sensors to ensure the accuracy and repeatability. Advanced control device, reliable operation and long service life
Standard communication interface
The calibration can be traceable to ensure the measurability of the test data
Air Permeability Tester For Battery Separator Gas Transmission Test
Technical Indexes
| Test Range | 30～60,000 Gurley seconds（Standard） |
| 0.0021～200um/Pa.s（Standard） | |
| 300～60,000Gurley seconds（Optional） | |
| 0～60,000 Gurley seconds（Optional） | |
| Resolution | 0.1 Gurley seconds |
| Sample Amount | 1 （Standard）；3 can be customized. |
| Differential Pressure | 0.01kPa～20kPa（STD：1.22kPa） |
| Accuracy | 0.01kPa |
| Test Area | 1.0in2. （0.25in2, 0.1in2 optional） |
| Sample Thickness | ≤5mm |
| Test Gas | Air, O2, N2, CO2（Self-provide） |
| Gas Resource | 0.3MPa～1.0MPa |
| Interface | Ф6mm |
| Dimension | 320mm（L）×380mm（D）×410mm（H） |
| Power Supply | AC 220V 50Hz |
| Net Wt. | 25 kg |
