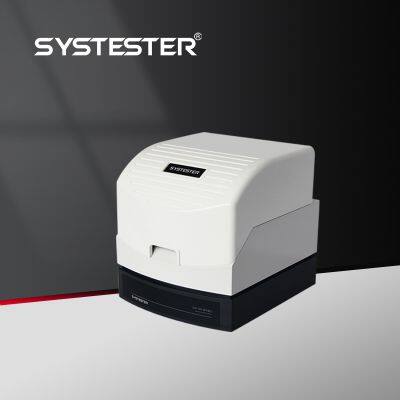

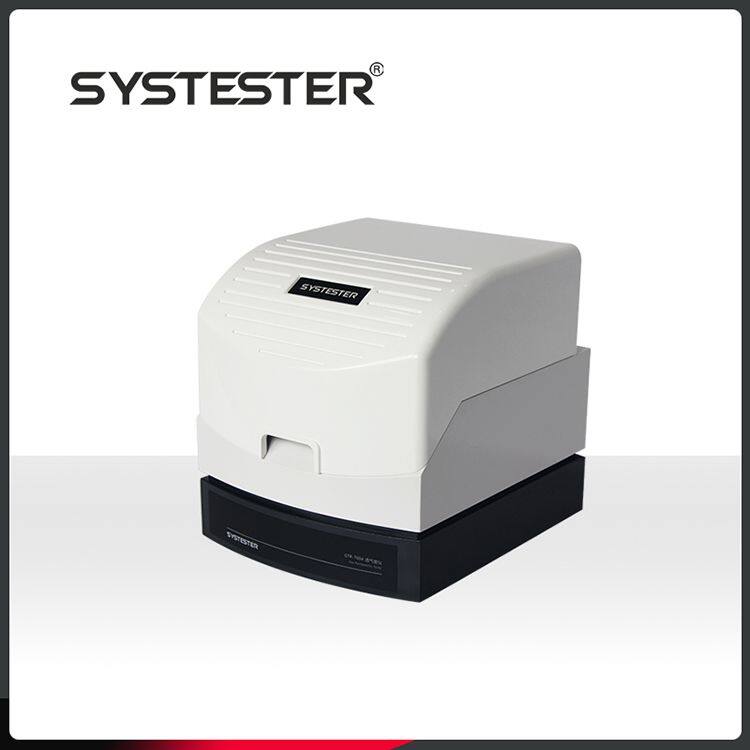

Air Permeability Tester Nonwoven Material/ Fabric/ Paper Air Transmission Test
Product Detail
Application:
GTR tester is suitable for the analysis and determination of the air permeability and the
air resistance of various kinds of battery separation membranes, heat exchange membranes, paper, textiles, non-woven fabrics and other materials. Testing of GTR is fully automatic during the whole procedure.
Air Permeability Tester Nonwoven Material/ Fabric/ Paper Air Transmission Test
Features:
Ÿ Standard Gurley method, own technology
Ÿ Touch screen operation
Ÿ Specimen automatic clamping
Ÿ Test pressure automatic control
Ÿ Test pressure real time display
Ÿ Test data curve real time display
Ÿ Output in seconds, um/Pa.s, other units optional
Ÿ Interchangeable test heads(optional)
Ÿ Embedded system, remote service
Ÿ Built in micro-printer to print reports
Ÿ Built in data query function
Ÿ Automatic overload protection. Highly accurate sensors to ensure the accuracy and repeatability. Advanced control device, reliable operation and long service life
Ÿ Standard communication interface
Ÿ The calibration can be traceable to ensure the measurability of the test data
Air Permeability Tester Nonwoven Material/ Fabric/ Paper Air Transmission Test
Technical Indexes:
| Test range |
30～60,000 Gurley Seconds（Standard） 0.0021～200um/Pa.s（Standard） 15～30,000Gurley Seconds（Optional） 5～15,000 Gurley Seconds（Optional） |
| Resolution | 0.1Gurley Seconds |
| Samples | 1（Standard） |
| Differential Pressure | 0.01kPa～20kPa（STD：1.22kPa） |
| Accuracy | 0.01kPa |
| Test Area |
1.0in2. (0.25in2, 0.1in2 optional) |
| Sample Thickness | ≤5mm |
| Test Gas | Air, O2, N2, CO2（Self-provide） |
| Gas Resource | 0.3MPa～1.0MPa |
| Interface | Ф6mm |
| Dimension: | 370mm(L)×320mm(W)×220mm(H) |
